Ruggedized MPO 12 Fiber Test System (1550nm Source)

Fosco Connect Part No.: F11550MPOR

$ 7,985.00 or

This MPO Test Set 12 Fiber Ruggedized Singlemode Power Meter with 1550nm Light Source

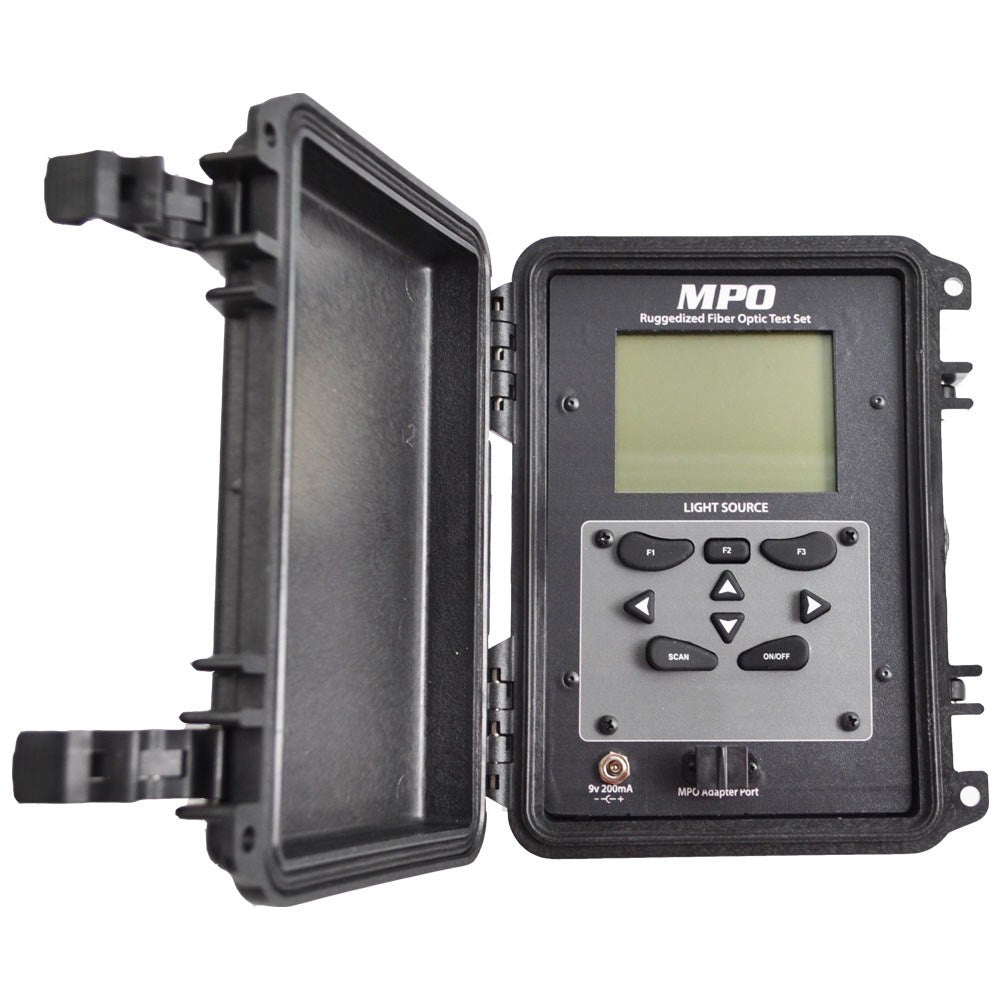

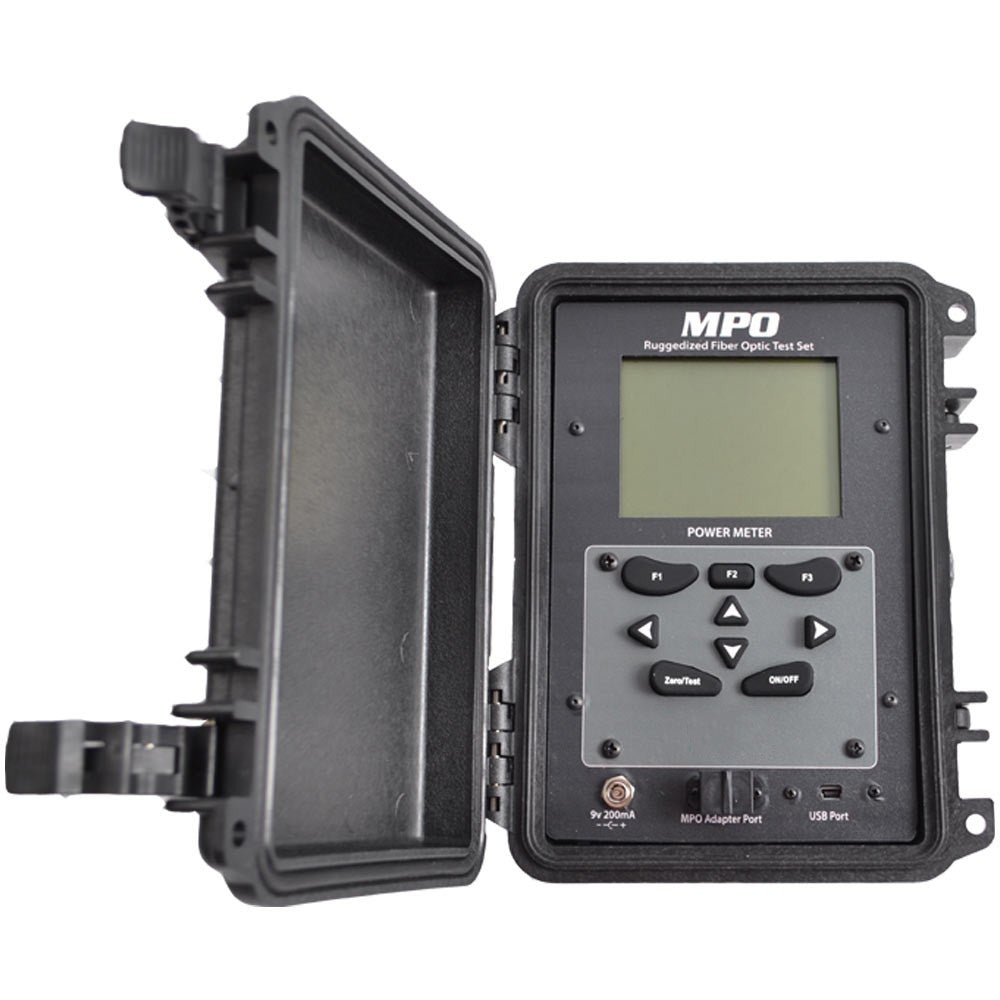

Designed for Harsh Outdoor Environments. This 12 Fiber MPO/MTP Test Set will provide the technician with link attenuation readings over all 12 fibers of the MPO/ MTP ferrule in 10 seconds.

MPO/MTP connectors are growing in popularity so the ability to measure efficiently, quickly and accurately the correct location of each fiber and its attenuation can assist technicians for certification.

The test set will recognize A, B or C polarity wiring configurations used in the industry. Includes MPO/MTP to MPO/MTP reference cables, and reporting software.

Features

Singlemode or Multimode
12 Position Light Source and Power Meter
Pass/Fail Reporting
dBm/dB check criteria
Select A, B or C Polarity
USB Data Transfer
Two Reference Cords with MTP Pro Connectors

• Comfortable hand-held design
• Can store up to 1,000 test results
• Test results transferable to PC reporting software (PDF)
• Customizable pass/fail thresholds
• Auto turn-off option
• (2) Type A reference cords with mating sleeves included
• Light Source can be operated in Auto mode, or Manual mode,
All On
• Available in rugged case design
• Optional gender change tool available

SPECIFICATIONS
Operating Temperature: -10°C to + 50°C
Storage Temperature: -20°C to + 50°C

Power Meter
Unit of Measurement: Power/Insertion Loss dBm/dB
Detector Type: 12 InGaAs Photodiodes ( λ ; range 800nm to 1700nm)
Calibrated Wavelengths: 850nm MM Version; 1310nm SM Version; 1550nm SM Version
Dynamic Range: +3.0 dBm to -50dBm
Resolution: 0.01dBm/dB
Accuracy: ±0.15dBm/dB
Polarity Detection: A, B, C & 40G
Test Storage Locations: 999
Data Transfer: USB Serial Cable (via USB Mini)

Optical Connector:
Multimode - MPO male UPC (compatible with 62.5um and 50um)
Singlemode - MPO male APC (compatible with 9um)
(Both SM and MM units have self closing bulkhead)

Power Requirements: 1 Amp/12 V DC Charger ( using 120V /240 AC adapter)
Battery: 8 NiMH rechargeable batteries (2100mAh)
Battery Life: 6 Hours on full charge(without backlight)
Battery Charge Time: Full Charge - 3 Hours
Automatic Power Off: 10 minutes - Default on; user selectable
Size: 7.25” x 4.5” x 2.75”
Weight: 1.9 lbs

Light Source
Lasers Multimode: 850 nm
Singlemode: 1310 nm or 1550 nm
Output Power: Multimode < -4.0 dBm (50/125 fiber); -6.0dBm Typical
Singlemode < -1.0 dBm (9/125 fiber) ; -4.0dBm Typical
Modulation Modes: Continuous Wave; 270Hz, 1 KHz, 2KHz
Power Requirements: 1 Amp / 12 V DC Charger ( using 120V /240 AC adapter)
Battery: 8 NiMH rechargeable batteries (2100mAh)
Battery Life: 6 Hours on full charge (without backlight)
Battery Charge Time: Full Charge - 3 Hours
Stability: ±0.3dBm/dB
Automatic Power Off: 10 minutes - Default off; user selectable
Size: 7.25” x 4.5” x 2.75”
Weight: 1.9 lbs
Laser Type: Class 3B

RUGGEDIZED VERSION - SPECIFICATIONS

SPECIFICATION FOR METER AND SOURCE ARE SAME AS ABOVE WITH EXCEPTION TO:

Size: 8 x 6 x 4 Inches
Weight: 3 Pounds
Water Resistance: 30 Minutes in up to approx. 3 Feet (1 Meter) in water (w/cover closed)

MPO TEST SET

ORDER INFORMATION
F1850MPO: MPO 12 Fiber Test Set-MM Power Meter & 850nm Source
F11310MPO: MPO 12 Fiber Test Set- SM Power Meter & 13100nm Source
F11550MPO: MPO 12 Fiber Test Set-SM Power Meter & 1550nm Source
F1850MPOR: Rugged MPO 12 Fiber Test Set- MM Power Meter & 850nm Source
F11310MPOR: Rugged MPO 12 Fiber Test Set- SM Power Meter & 1310nm Source
F11550MPOR: Rugged MPO 12 Fiber Test Set- MM Power Meter & 1550nm Source

Individual Units
9400-0002SM1310LS: 1310nm SM MPO Light Source only
9400-0002SM1550LS: 1550nm SM MPO Light Source only
9400-0004SMPM: MPO SM Power Meter (1310nm/1550nm)
9400-0001MMLS: MPO MM Light Source (850nm)
9400-0003MMPM: MPO MM Power Meter (850nm)
All Test Sets include Power meter, light source, two type “A” reference cords, mating sleeves, and PC reporting software and carrying case

ACCESSORIES
MPOACCESSORYKITMM:
MPO Accessory Kit for Multimode OM3
MPO Accessory Kit includes: IBC MTP/MPO
Cleaner, US Conec MTP gender change tool and
mating sleeves & MM OM3 Reference Cord

MPOACCESSORYKITSM:
MPO Accessory Kit includes: IBC MTP/MPO; Cleaner, US Conec MTP gender change tool and mating sleeves & SM Reference Cord
F1EFRC-OM3: OM3 Encircled Flux Reference Cord
18814: MTP Pro Field Tool - Gender Changing Tool

Download Product Specification
