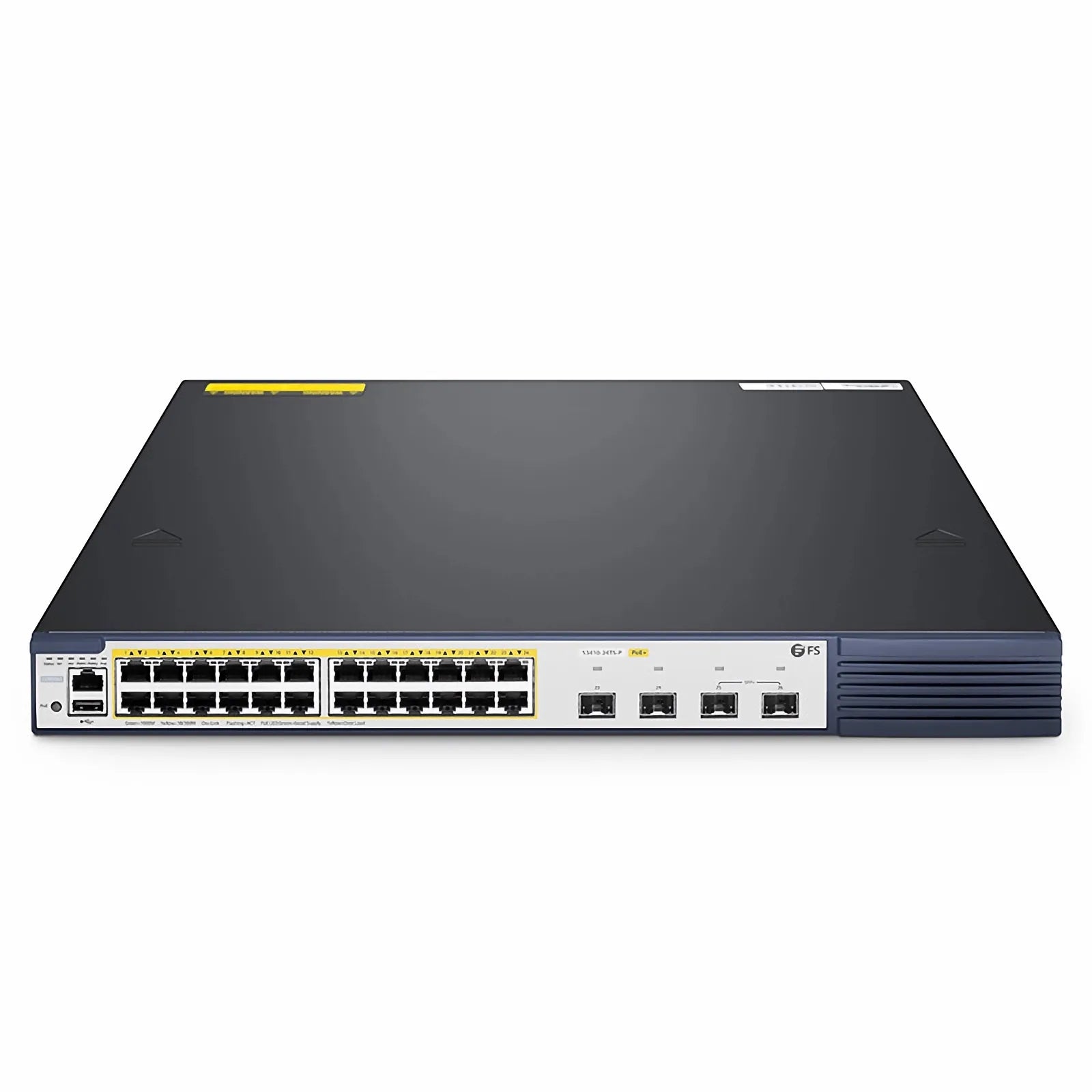

S3410-24TS-P, 24-Port Gigabit Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @740W, with 2 x 10Gb SFP+ Uplinks and 2 x Combo SFP Ports, PicOS®, Support MLAG, Broadcom Chip
Overview
The S3410-24TS-P is a high-performance Layer 2+ Gigabit Ethernet switch designed for campus network environments. It features 24 ports of 10/100/1000BASE-T RJ45 with support for IEEE 802.3af/at PoE+ (up to 30W per port), complemented by two 10Gb SFP+ uplink ports and two 1G RJ45/SFP combo ports. The switch is powered by a Broadcom BCM56150 chipset and runs the modular PicOS® network operating system, providing robust management and routing capabilities.
Key Features
- 740W PoE+ Power Budget: Supports high-power delivery to connected devices such as Wi-Fi 6 access points, IP cameras, and VoIP phones through IEEE 802.3af/at compliance.
- 10Gb SFP+ Uplinks: Provides two 10Gb SFP+ ports to ensure high-bandwidth connectivity to aggregation layers or core switches, reducing bottlenecks in high-traffic campus networks.
- Multi-Chassis Link Aggregation (MLAG): Enables device-level redundancy by allowing the switch to form logical links across two separate physical switches for high availability.
- PicOS® Operating System: Delivers a modular, software-driven architecture that supports standard L2/L3 protocols, including OSPF and RIP, for enhanced control plane stability.
- Hot-Swappable Redundant Power Supplies: Equipped with a 1+1 redundant power supply design to facilitate continuous operation during power module maintenance or failure.
- Centralized Management via AmpCon: Integrates with AmpCon management software for Zero Touch Provisioning (ZTP), topology auto-discovery, and automated lifecycle management.
Technical Specifications
| Parameter | Specification |
|---|---|
| Switch Chip | Broadcom BCM56150 |
| Switching Capacity | 46 Gbps (unidirectional) / 92 Gbps (bidirectional) |
| Forwarding Rate | 96 Mpps |
| Ports | 24x 10/100/1000BASE-T, 2x 1G RJ45/SFP Combo, 2x 1G/10G SFP+ |
| PoE Budget | 740W (Dual-power) |
| PoE Standard | IEEE 802.3af/at |
| DRAM | 512MB |
| Flash Memory | 512MB |
| Packet Buffer | 1.5MB |
| MAC Address Table | 16381 |
| VLAN Support | 4K |
| Form Factor | 1 RU |
| Dimensions (HxWxD) | 1.73''x17.32''x12.59'' (44x440x320mm) |
| Input Voltage | 100-240VAC, 50-60Hz |
| Operating Temperature | 0 to 50ºC (32 to 122°F) |
