S3410-48TS-P, 48-Port Gigabit Ethernet L2+ PoE+ Switch, 48 x PoE+ Ports @740W, with 2 x 10Gb SFP+ Uplinks and 2 x Combo SFP Ports, PicOS®, Support MLAG, Broadcom Chip
Overview

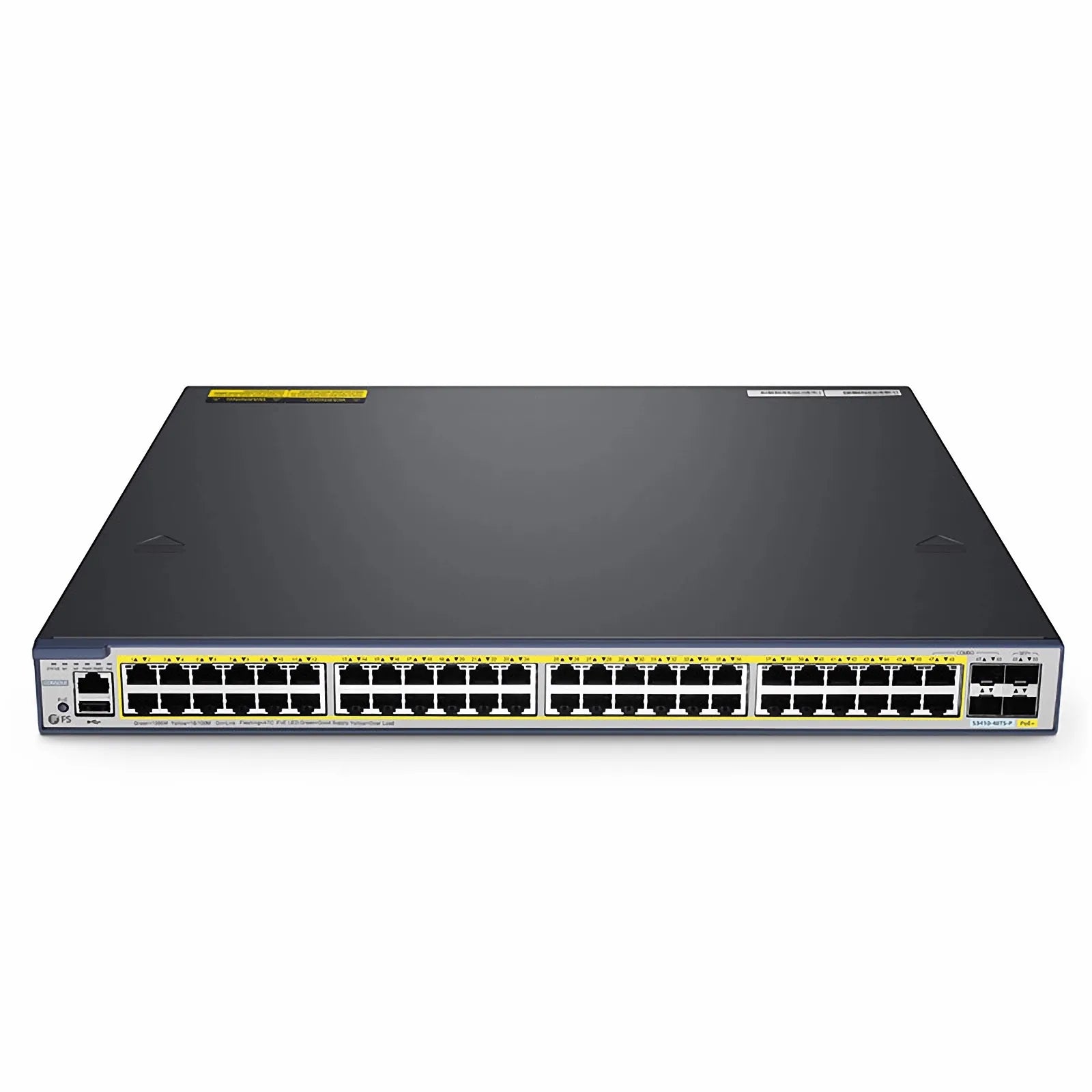

The S3410-48TS-P is a managed L2+ PoE+ switch designed for campus, SMB, and enterprise network environments. It features 48 x 10/100/1000BASE-T RJ45 ports that support the IEEE 802.3af/at PoE+ standard, providing up to 30W per port with a total power budget of 740W. The device includes 2 x 1G RJ45/SFP combo ports and 2 x 1/10Gb SFP+ uplinks for flexible network connectivity. The switch is powered by the PicOS® network operating system, offering a modular architecture and features such as MLAG, Voice VLAN, OSPF, and sFlow. It utilizes the Broadcom BCM56150 switch chip and an ARM A9 single-core CPU for packet processing.
Key Features
- 740W Total PoE Power Budget: Supports high-density deployment of power-over-ethernet devices, such as Wi-Fi 6 access points and security cameras, from a single rack unit.
- Dual Hot-Swappable Power Supplies: Equipped with a 1+1 redundant AC power supply configuration to ensure high availability and continuous operation during power module maintenance.
- Broadcom BCM56150 Switching Chip: Provides a switching capacity of 88 Gbps unidirectional (176 Gbps bidirectional) to handle high-traffic volume in enterprise LAN environments.
- Multi-Chassis Link Aggregation (MLAG): Enables device-level redundancy by allowing ports on two separate switches to act as a single logical link, improving network link resilience.
- AmpCon-Campus Integration: Allows for automated lifecycle management, including Zero Touch Provisioning (ZTP), topology auto-discovery, and centralized configuration deployment.
- Advanced Traffic Control: Implements eight priority queues per port to facilitate Quality of Service (QoS) and minimize packet loss and latency for sensitive data flows.
Technical Specifications
| Ports | 48 x 10/100/1000BASE-T RJ45, 2 x 1G RJ45/SFP Combo, 2 x 1G/10G SFP+ |
| Switching Capacity | 88 Gbps (unidirectional) / 176 Gbps (bidirectional) |
| Forwarding Rate | 132 Mpps |
| Switch Chip | Broadcom BCM56150 |
| CPU | ARM A9 Single-Core, 1GHz |
| PoE Standard | IEEE 802.3af/at |
| Total PoE Budget | 740W |
| Redundancy | 1+1 Hot-swappable AC Power Supplies |
| MAC Address Table | 16,381 entries |
| VLAN Support | 4K VLANs |
| Jumbo Frame | 9,216 bytes |
| Packet Buffer | 1.5MB |
| Operating Temperature | 0 to 50ºC (32 to 122°F) |
| Dimensions (HxWxD) | 1.73'' x 17.32'' x 14.17'' (44 x 440 x 360mm) |
