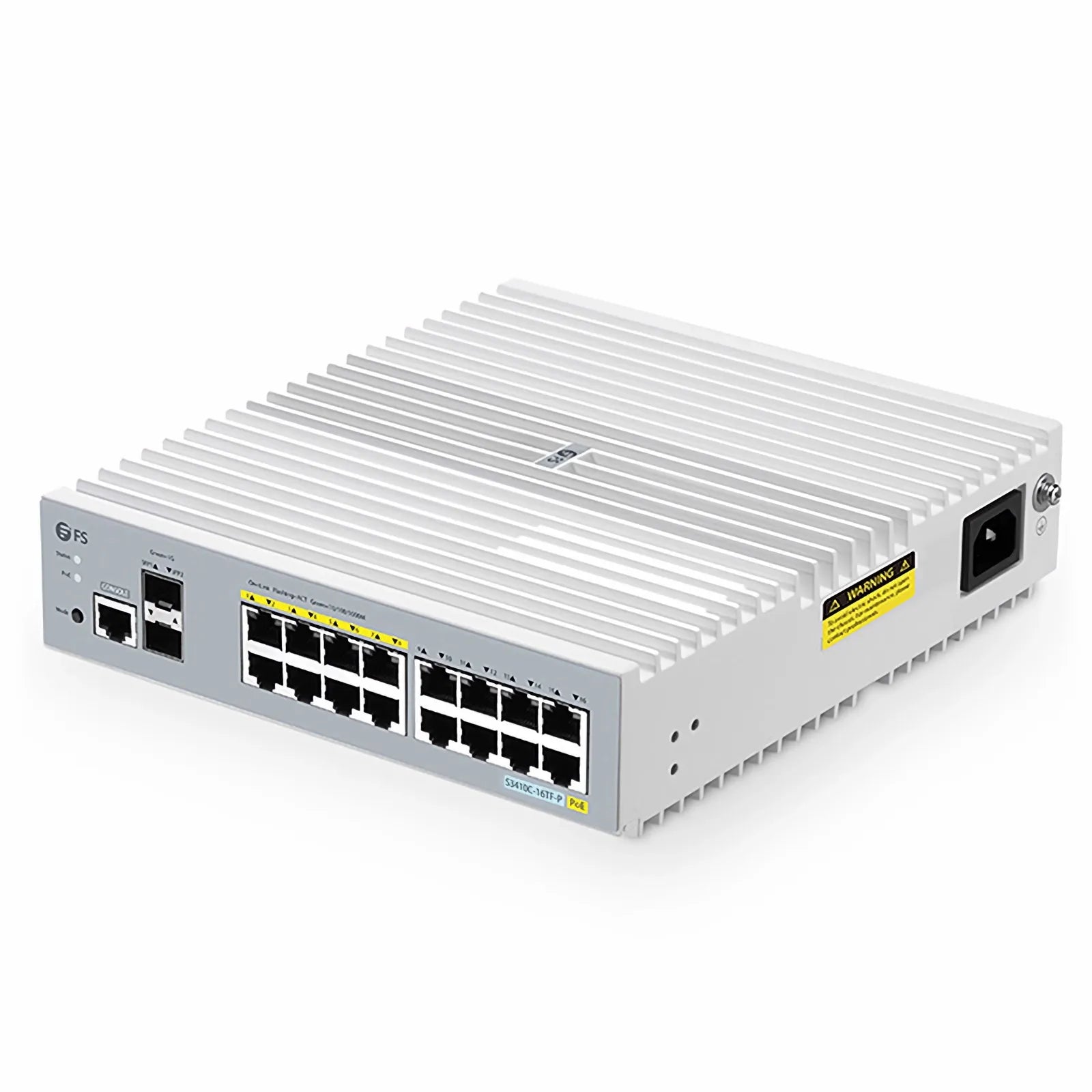

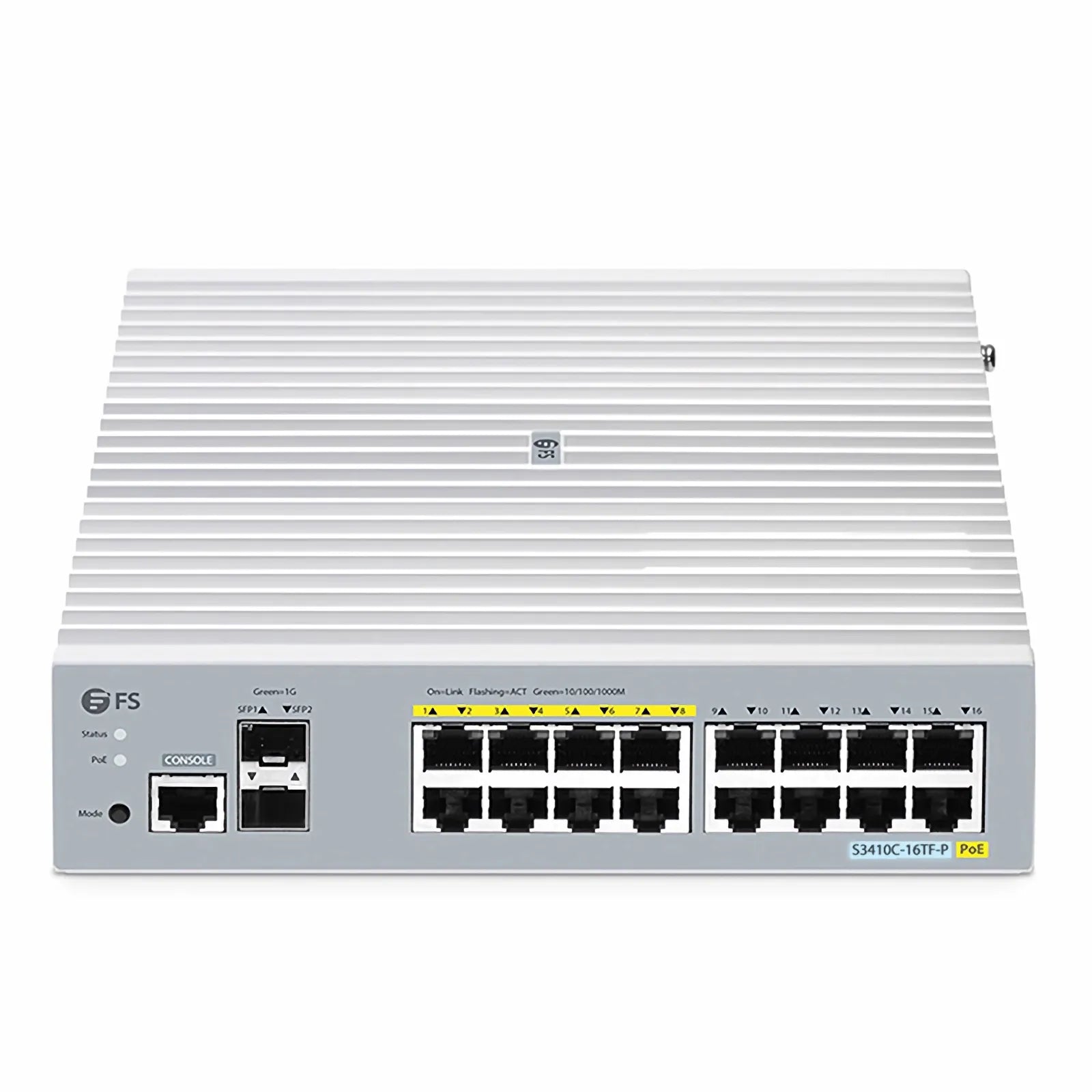

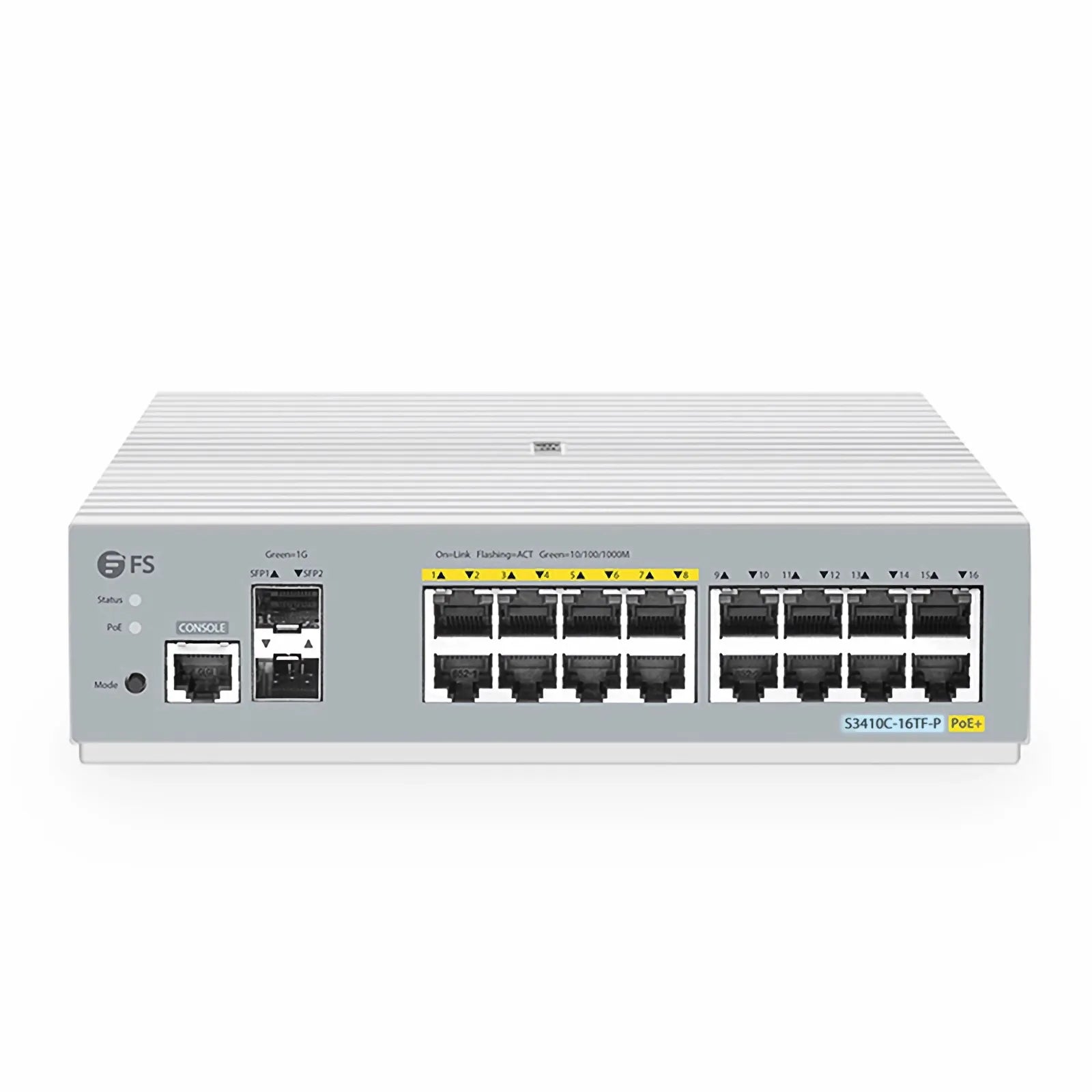

S3410C-16TF-P, 16-Port Gigabit Ethernet L2+ PoE+ Switch, 8 x PoE+ Ports@125W, 8 x 1Gb RJ45, with 2 x 1Gb SFP Uplinks, PicOS®, Support MLAG, Broadcom Chip, Fanless
Overview
The S3410C-16TF-P is a Layer 2+ managed switch designed for small to medium-sized business environments. It features 16 Gigabit Ethernet RJ45 ports, with 8 ports supporting IEEE 802.3af/at PoE+ standards for powering network devices like security cameras and Wi-Fi access points. The switch includes 2 Gigabit SFP uplink ports for fiber connectivity and operates on the PicOS® network operating system, supporting features such as MLAG, Voice VLAN, and OSPF for flexible network configuration.
Key Features
- 8 x PoE+ Ports (125W Budget): Provides up to 30W of power per port, allowing for direct power delivery to PoE-enabled devices such as VoIP phones and wireless access points.
- Broadcom BCM56150 Chipset: Utilizes a high-performance switching chip to provide consistent packet forwarding and a 36 Gbps bidirectional switching capacity.

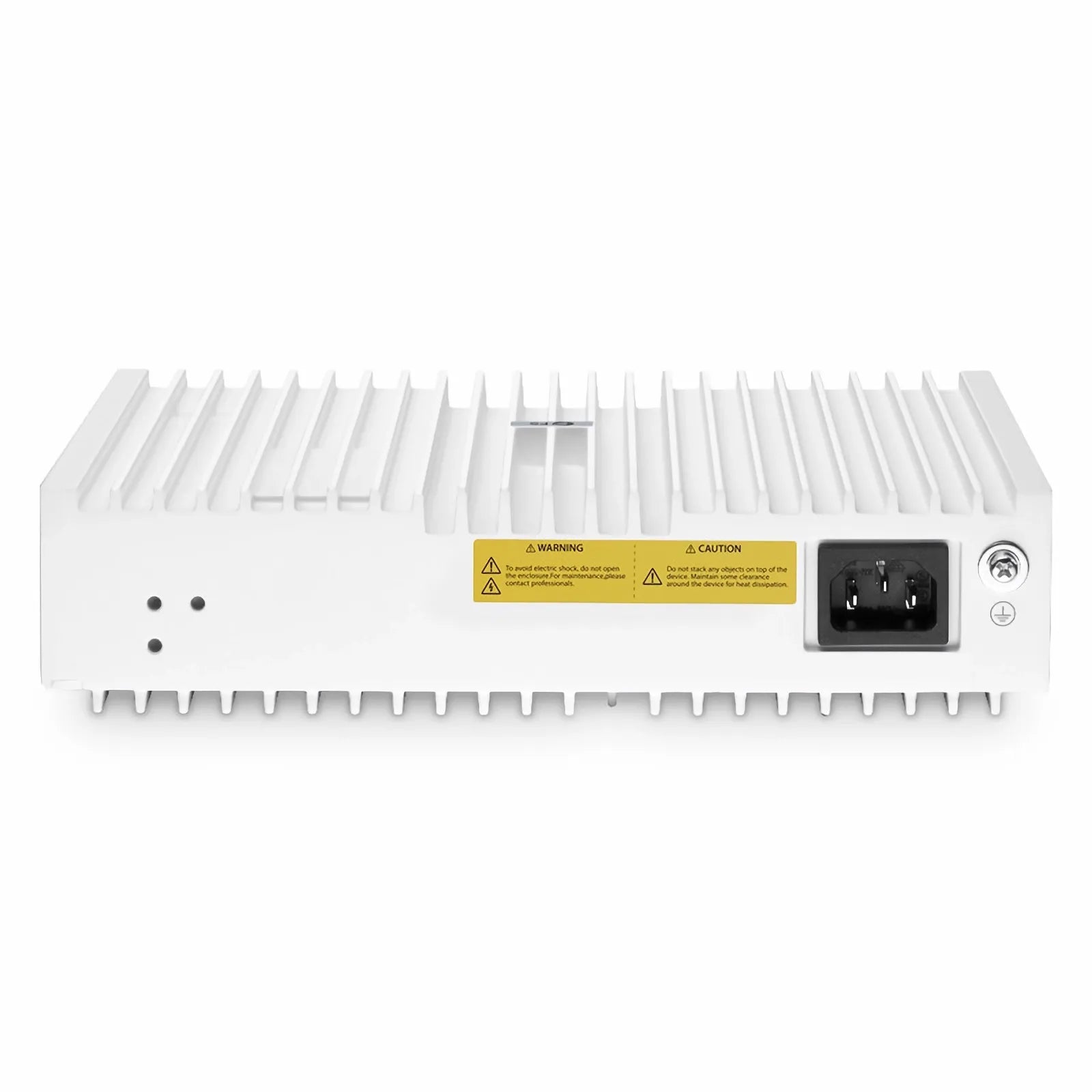

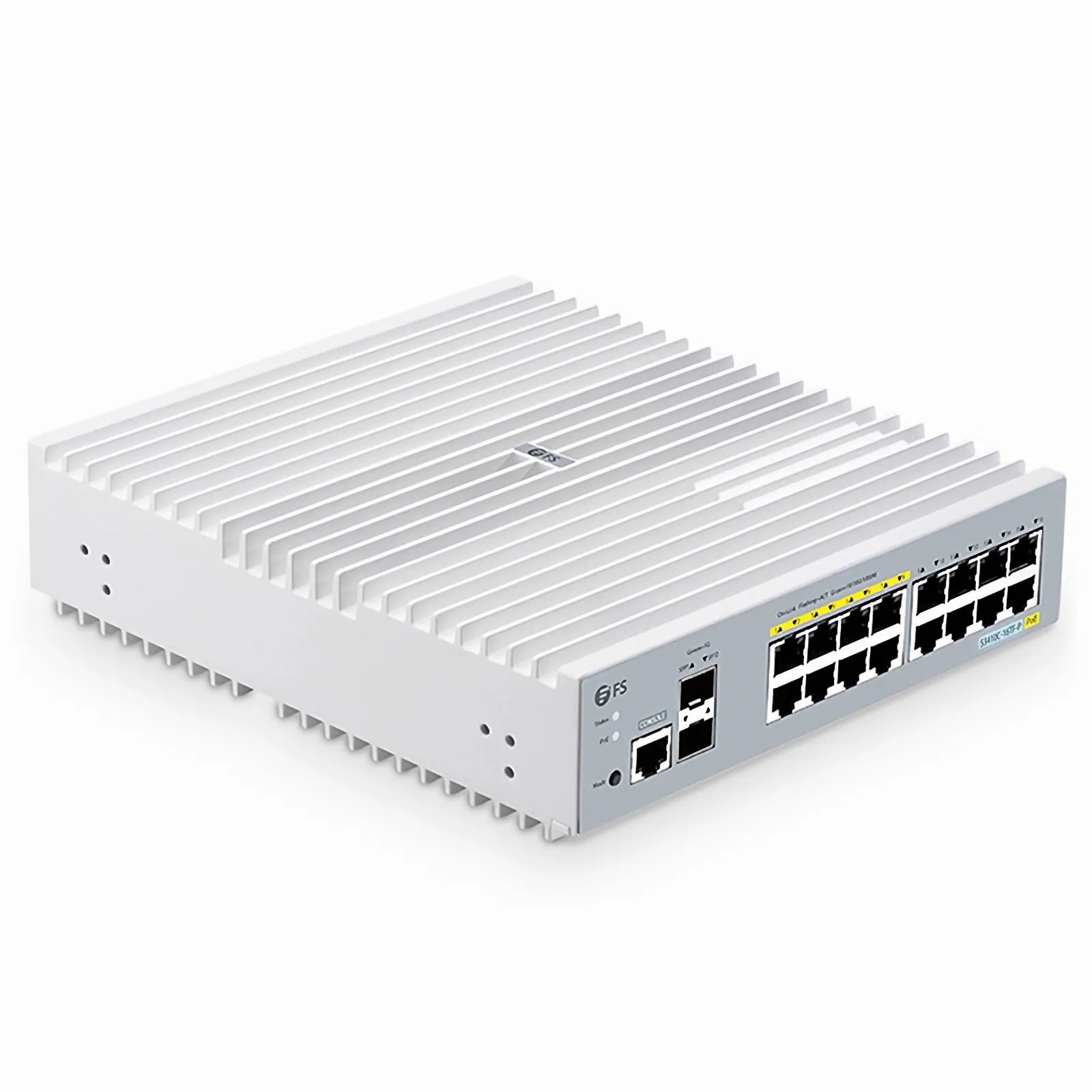

- Fanless Thermal Design: Operates without internal fans, reducing noise pollution in quiet office or classroom environments while preventing mechanical failure.
- PicOS® Operating System: Includes perpetual license support for advanced L2+ features, including MLAG, LACP, and sFlow for enhanced network traffic management.

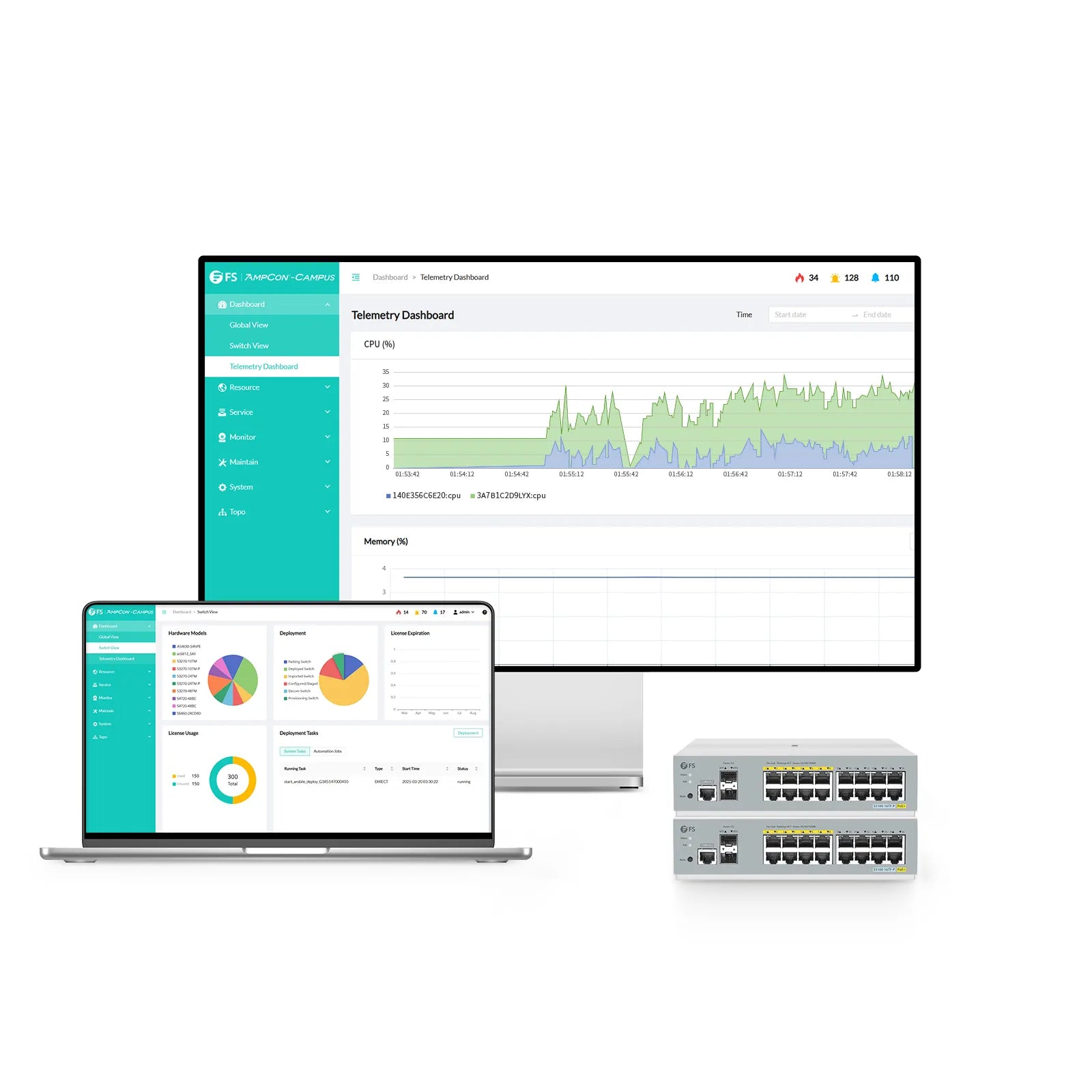

- AmpCon-Campus Management Integration: Supports centralized management, enabling Zero Touch Provisioning (ZTP) and automated topology discovery for streamlined deployment across multiple sites.
Technical Specifications

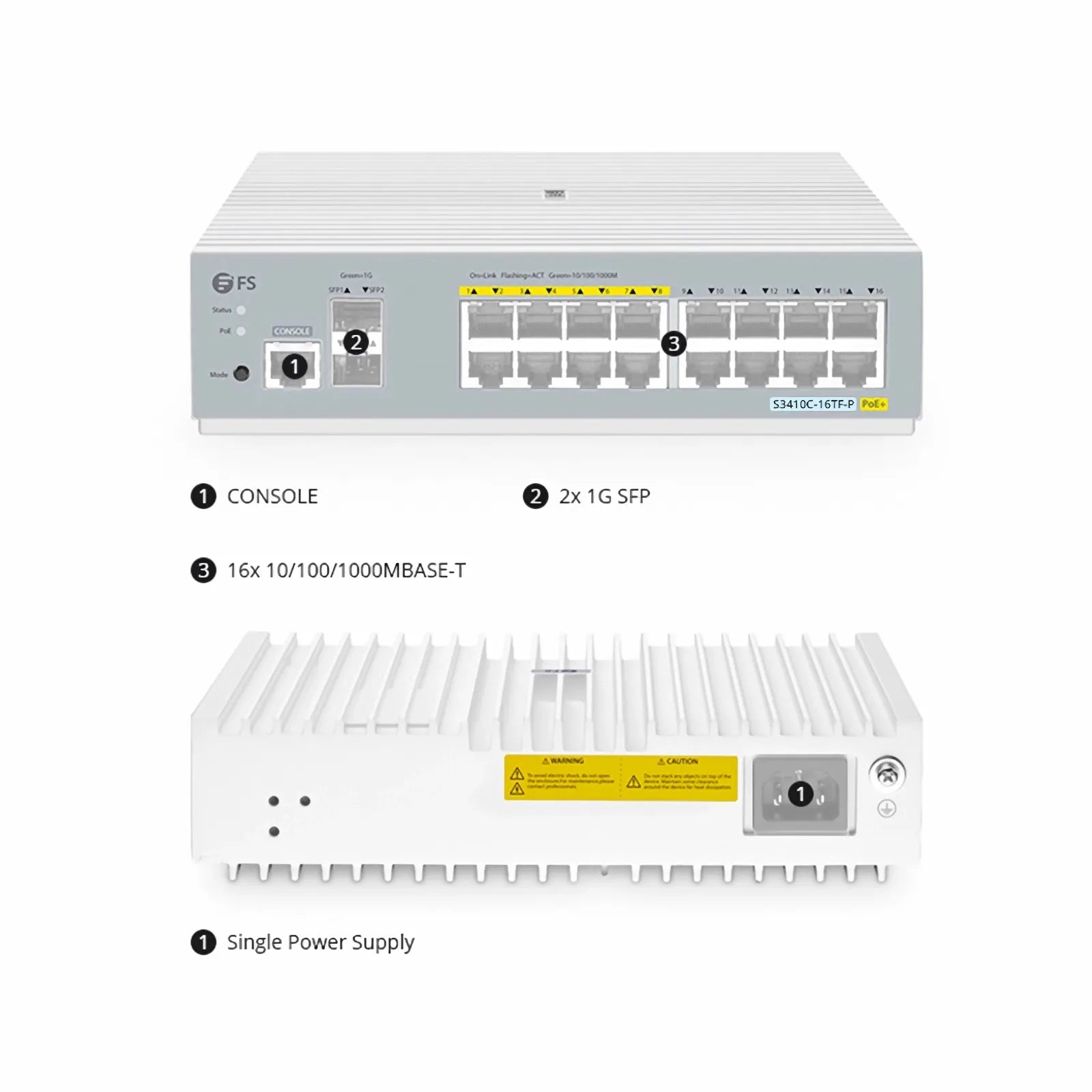

| Ports | 16x 10/100/1000BASE-T RJ45, 2x 1Gb SFP |
| Switch Chip | Broadcom BCM56150 |
| CPU | ARM A9 Single-Core 1GHz |
| Switching Capacity | 18 Gbps (unidirectional) / 36 Gbps (bidirectional) |
| Forwarding Rate | 26.8 Mpps |
| PoE Standard | IEEE 802.3af/at |
| Power Budget | 125W |
| MAC Address Table | 16,381 entries |
| Packet Buffer | 1.5MB |
| DRAM / Flash | 512MB / 256MB |
| Dimensions (HxWxD) | 2.17" x 8.27" x 9.25" (55 x 210 x 235mm) |
| Operating Temperature | 0 to 45°C (32 to 113°F) |
| VLAN Support | 4,000 VLANs |
