Overview

The S3410C-8TMS-P is a high-performance Layer 2+ managed PoE+ switch designed for enterprise and campus network environments. It features 8 ports of 10/100/1000BASE-T for standard connectivity, 2 ports supporting 1000M/2.5G/5GBASE-T, and 2 SFP+ uplinks capable of 1Gb or 10Gb speeds. The device runs on the PicOS® network operating system, providing extensive management and configuration capabilities including MLAG, OSPF, and VLAN support.

Key Features

• Integrated 8-Port PoE+ Support: Provides up to 30W of power per port with a total power budget of 125W, suitable for powering security cameras and Wi-Fi 6 access points directly through the Ethernet cable.

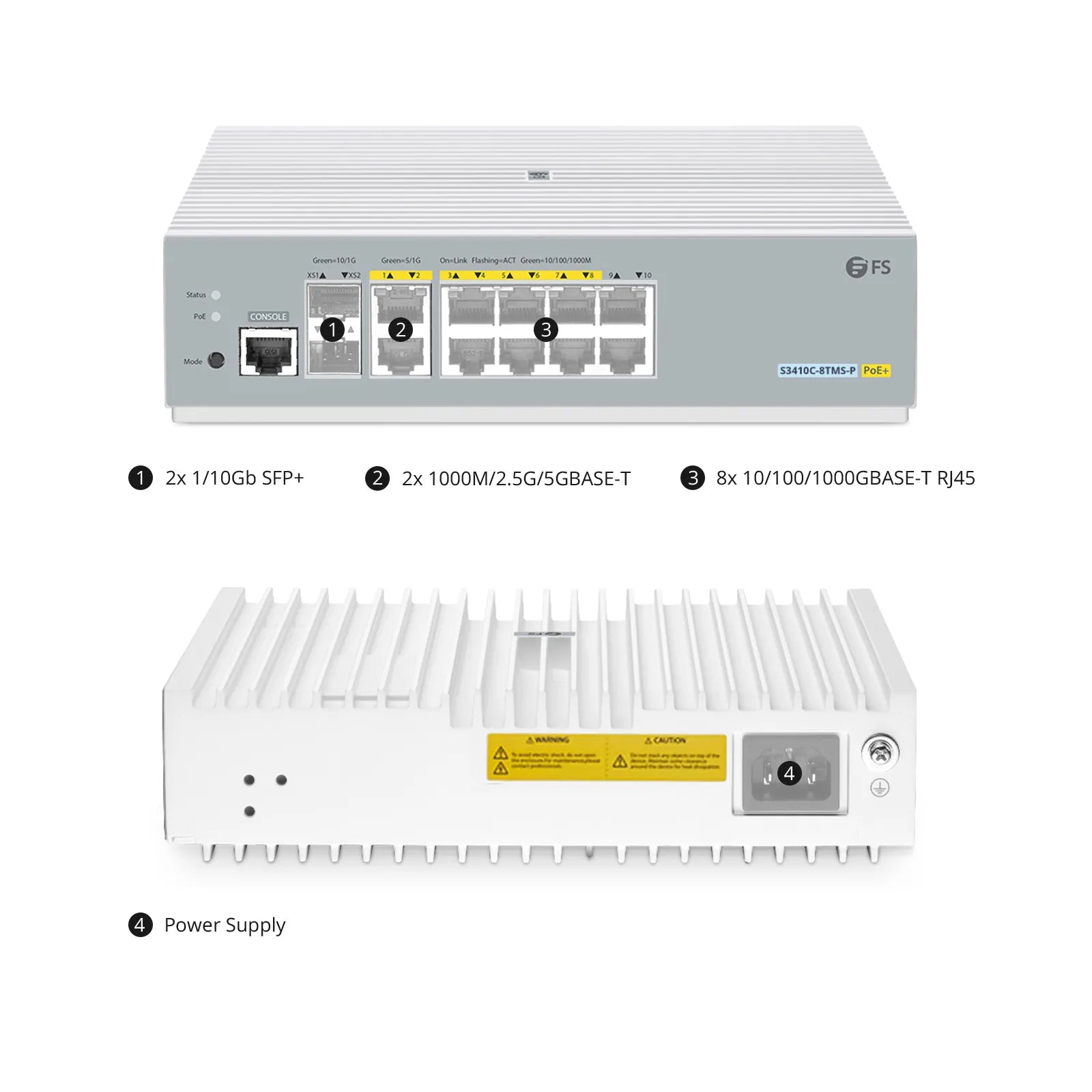

• Multi-Gigabit Uplink Ports: Includes two 5Gb RJ45 ports and two 10Gb SFP+ ports, enabling increased bandwidth capacity for high-speed network edge connections.
• Broadcom BCM56150 Switching Chip: Utilizes a specialized silicon architecture to provide a 38 Gbps unidirectional and 76 Gbps bidirectional switching capacity for consistent data throughput.

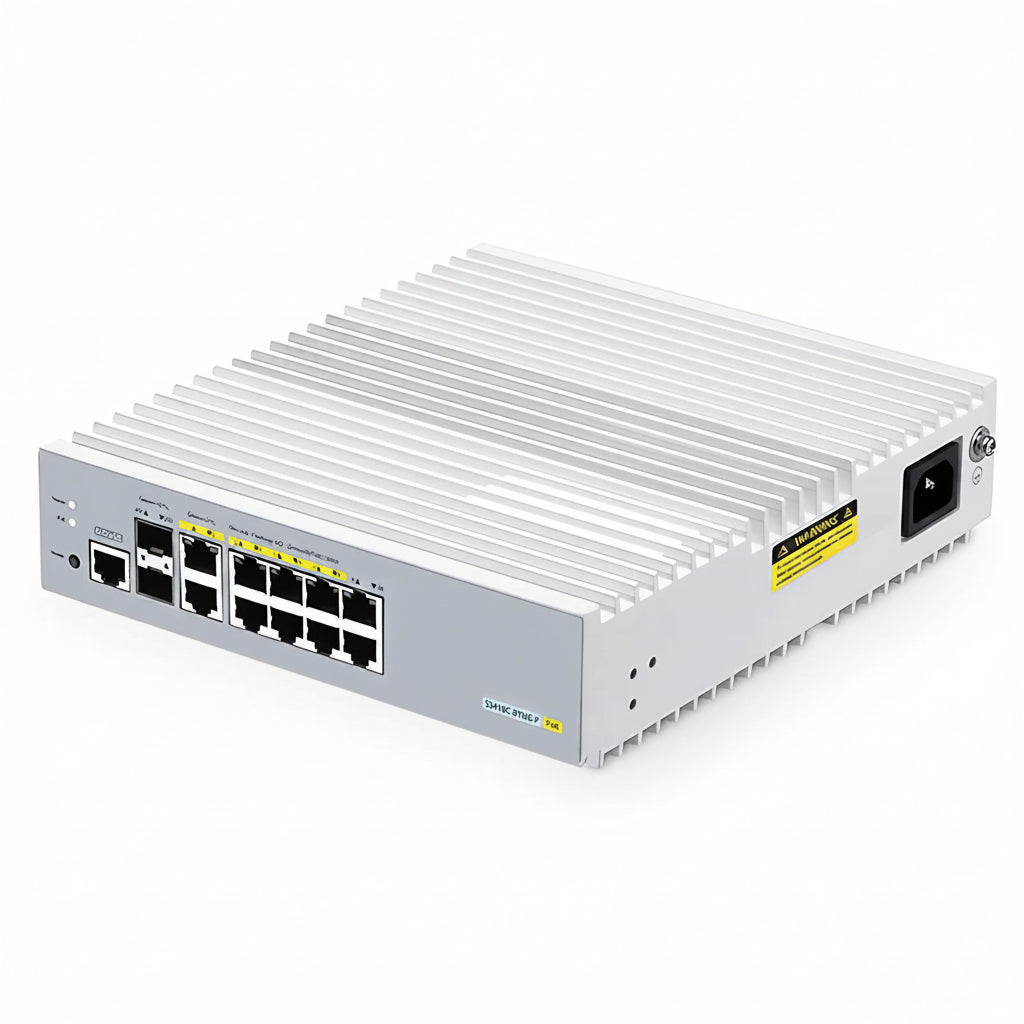

• Fanless Thermal Design: Operates without active cooling fans, which minimizes noise levels in quiet office or classroom environments and reduces potential points of hardware failure.

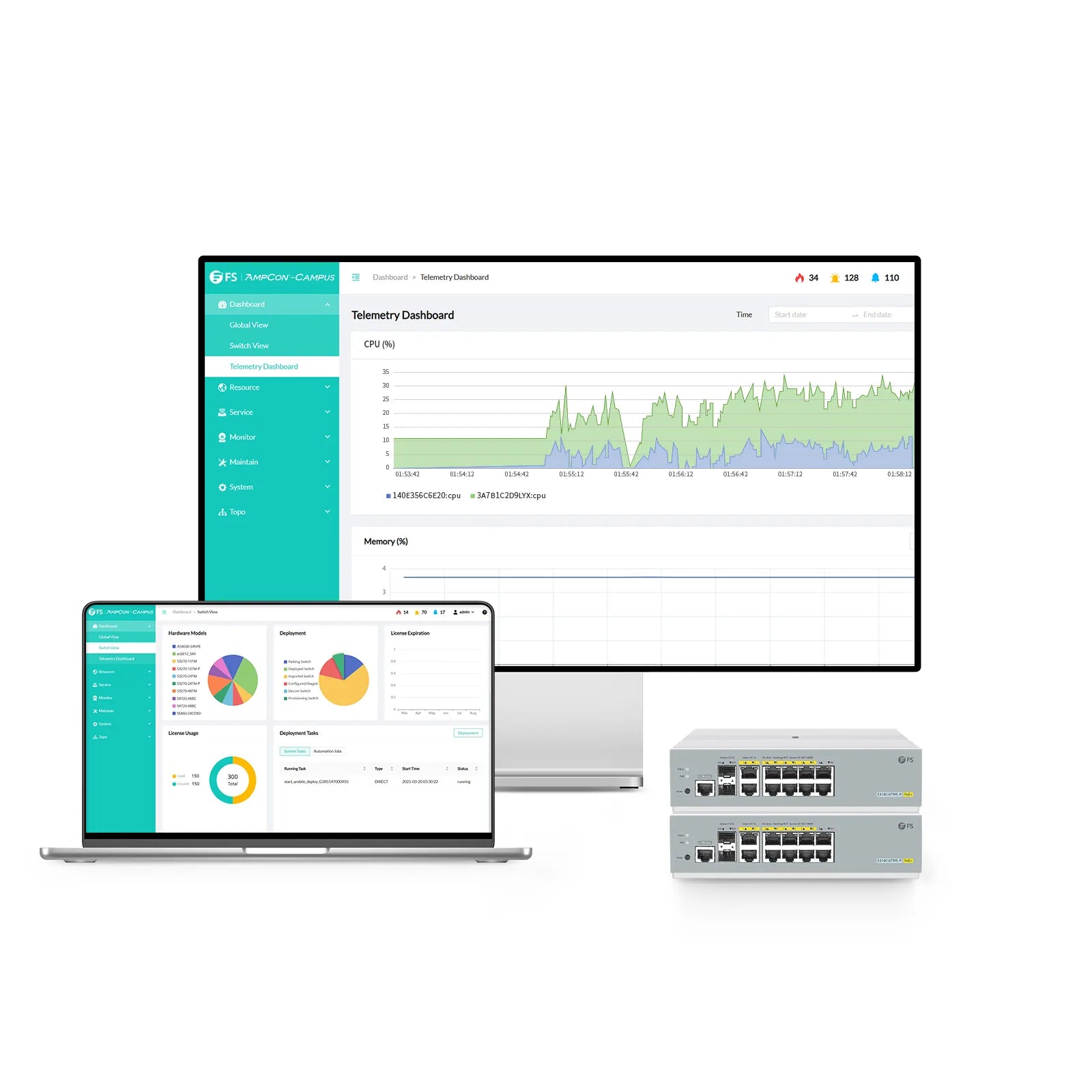

• Comprehensive Management via AmpCon-Campus: Supports zero-touch provisioning, topology auto-discovery, and automated lifecycle management for simplified deployment across multiple branch locations.

Technical Specifications
