S3410L-24TF-P, 24-Port Ethernet L2+ PoE+ Switch, 24 x PoE+ Ports @370W, with 4 x 1Gb SFP Uplinks, PicOS®, Support MLAG, Broadcom Chip

Part No.: 223017

  • $ 1,048.33

Overview

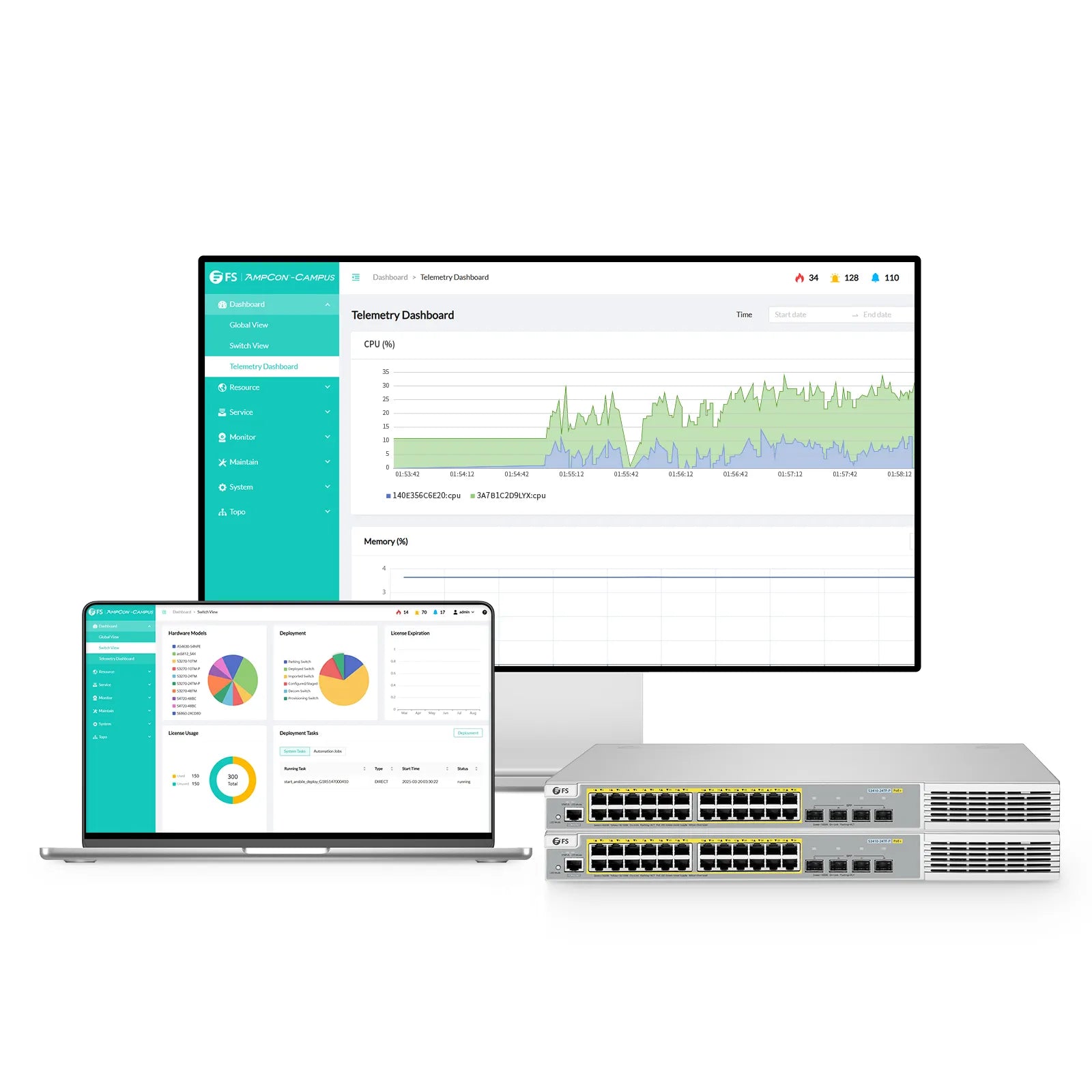

The S3410L-24TF-P is a Layer 2+ Ethernet switch equipped with 24 x 10/100/1000Mbps PoE+ ports and 4 x 1Gb SFP uplink ports. Designed for access-layer deployment, this switch utilizes a Broadcom BCM56150 chipset and an ARM A9 single-core processor. It supports the PicOS network operating system, providing a foundation for network configuration and management, including automated deployment via the AmpCon-Campus platform.

Key Features

  • 370W Power over Ethernet Budget: Provides up to 30W of power per individual port, allowing for the direct powering of security cameras and Wi-Fi 6 access points.
  • Multi-Chassis Link Aggregation (MLAG) Support: Enables the grouping of multiple physical switches into a single logical entity to increase link redundancy and total bandwidth.
  • Comprehensive Management Protocols: Features built-in support for SNMP v1/v2/v3, RMON, and Ansible, allowing for standardized network monitoring and automated configuration tasks.
  • Advanced Security Functions: Includes integrated 802.1X authentication, MAC-based authentication, and Dynamic ARP Inspection to verify the identity of connected devices and protect against unauthorized network access.
  • Traffic Prioritization: Supports Quality of Service (QoS) and Voice VLAN configurations, allowing administrators to prioritize time-sensitive voice and video traffic over standard data traffic.

Technical Specifications

Product Model S3410L-24TF-P
Switching Chipset Broadcom BCM56150
CPU ARM A9 Single-Core

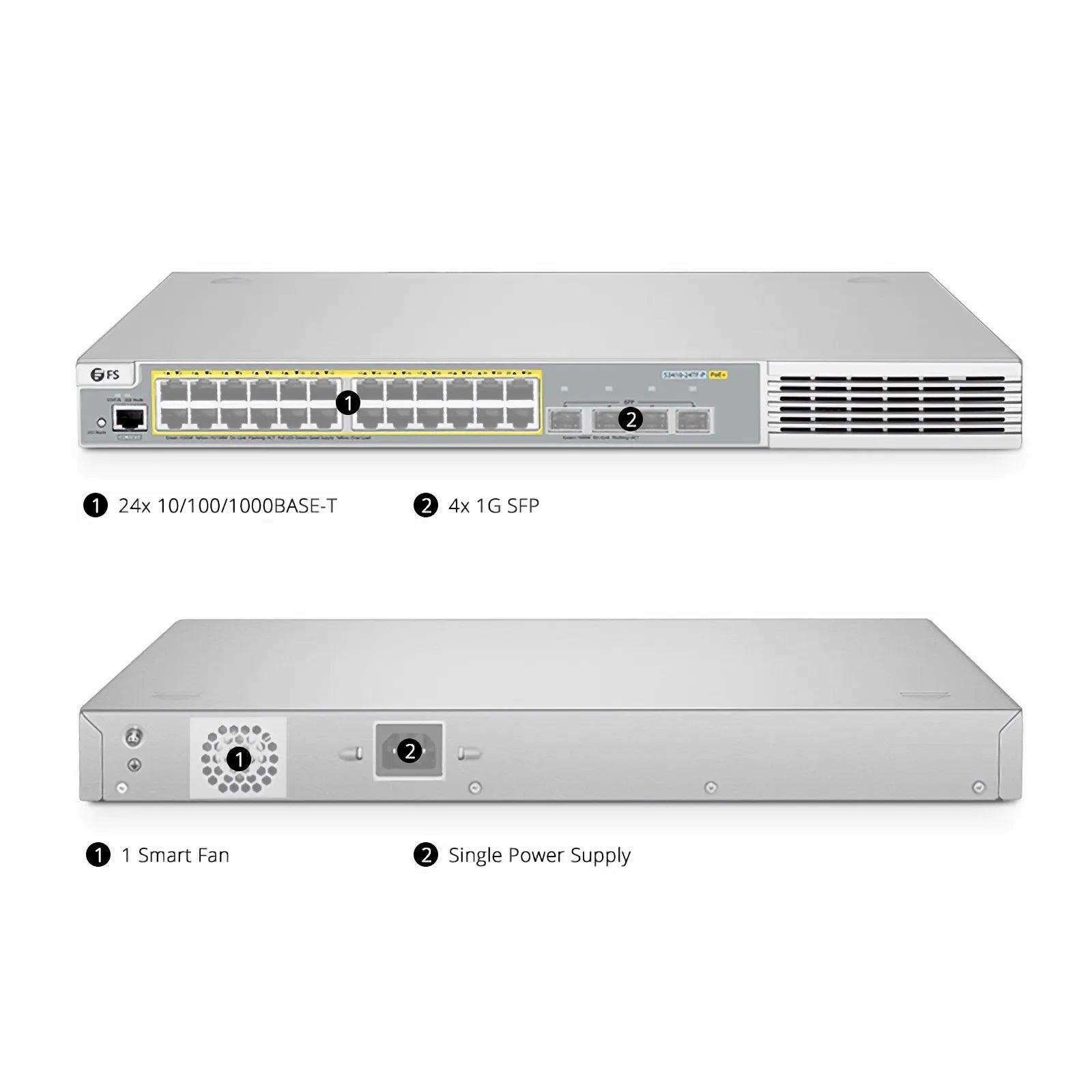

RJ45 Ports 24 x 10/100/1000BASE-T PoE+
SFP Ports 4 x 1Gb SFP Uplinks
PoE Budget 370W
Switching Capacity 28 Gbps (Unidirectional) / 56 Gbps (Bidirectional)
Operating System PicOS
Redundancy Features MLAG, VRRP, LACP, MSTP, ERPS
Security Protocols 802.1X, RADIUS, TACACS+, DHCP Snooping, DAI, IPv4 Source Guard
Management Interfaces AmpCon-Campus, SNMP, Syslog, CLI
