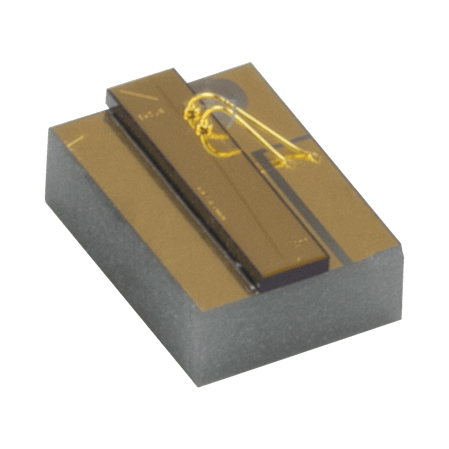

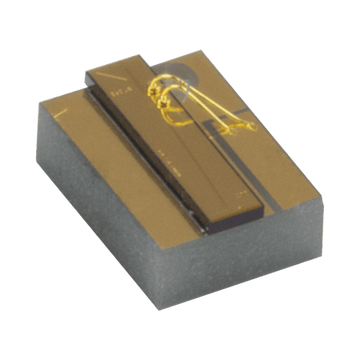

SAF1030C CWL = 1030 nm, GaAs Single Angle Facet Gain Chip on Submount

Overview

The SAF1030C is a GaAs-based single angle facet (SAF) gain chip mounted on a submount. It is engineered for applications requiring high-performance optical gain at a center wavelength of 1030 nm. The single angle facet design is specifically implemented to minimize internal back-reflections, which is critical for maintaining spectral purity and stability in external cavity laser configurations.

This gain chip is designed for integration into precision optical systems and laboratory environments. It provides a robust platform for tunable laser development and wide-bandwidth optical amplification, leveraging the GaAs material system to achieve the necessary gain characteristics for 1030 nm applications.

Key Features

• Single Angle Facet Design
  Features an angled facet architecture to effectively reduce parasitic optical feedback, ensuring stable operation in external cavities.
• 1030 nm Center Wavelength
  Optimized for operation at 1030 nm, making it suitable for high-precision laser spectroscopy and sensing applications.
• GaAs Material Platform
  Utilizes gallium arsenide semiconductor technology to provide efficient optical gain and reliable performance.
• Submount Integration
  The chip is pre-mounted on a stable submount, simplifying the integration process into optical breadboards or OEM systems.
• Compact Form Factor
  Designed for space-constrained optical assemblies, allowing for dense integration in complex test and measurement setups.
• Standardized Interface
  Engineered for compatibility with standard lab-grade optical components and laser drivers.

Applications

• External Cavity Tunable Lasers
• Optical Amplification
• Laser Spectroscopy
• Optical Sensing Systems
• Research and Development of Photonic Devices

Technical Specifications

Frequently Asked Questions

What is the purpose of the angle facet on this gain chip?
The angle facet design minimizes internal back-reflections, which helps prevent unwanted modes and improves the stability of the laser output in external cavity applications.

Is this gain chip ready for direct integration?
Yes, the chip is provided on a submount to facilitate easier mounting into your optical system or laboratory setup.

What does the warranty cover?
The product includes a one-year warranty, which is valid only for unopened packaging. The warranty is void once the original package is opened.

Can this chip be used in high-power applications?
This gain chip is designed for precision and stability; please refer to the specific thermal and electrical operating limits to ensure operation within the safe handling parameters.

What is the material composition?
This device is based on Gallium Arsenide (GaAs) semiconductor technology.
