Overview

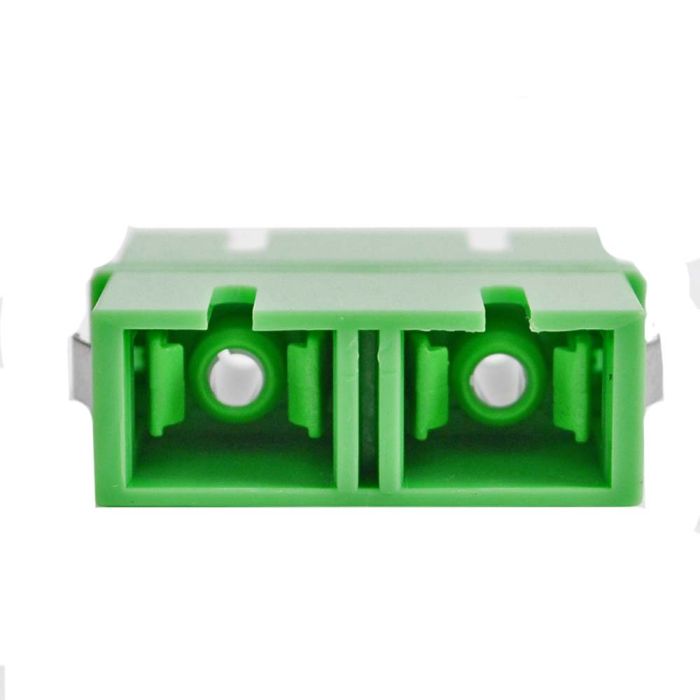

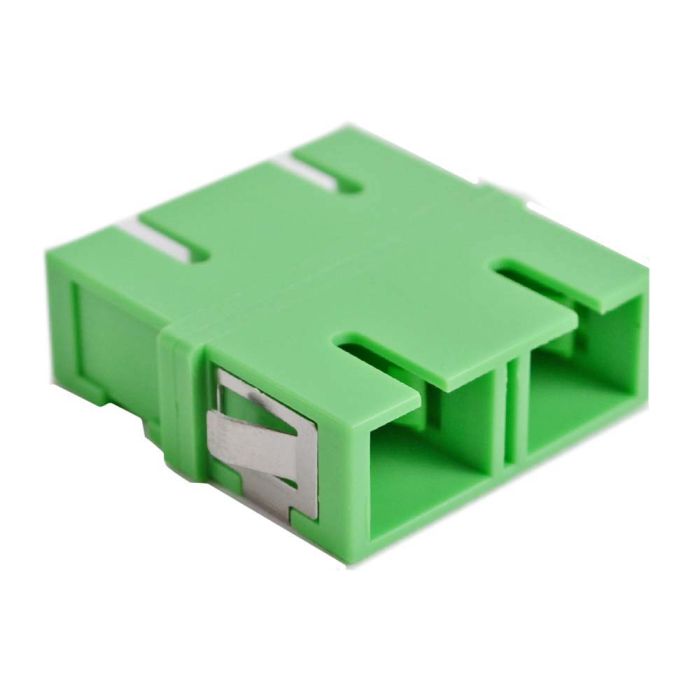

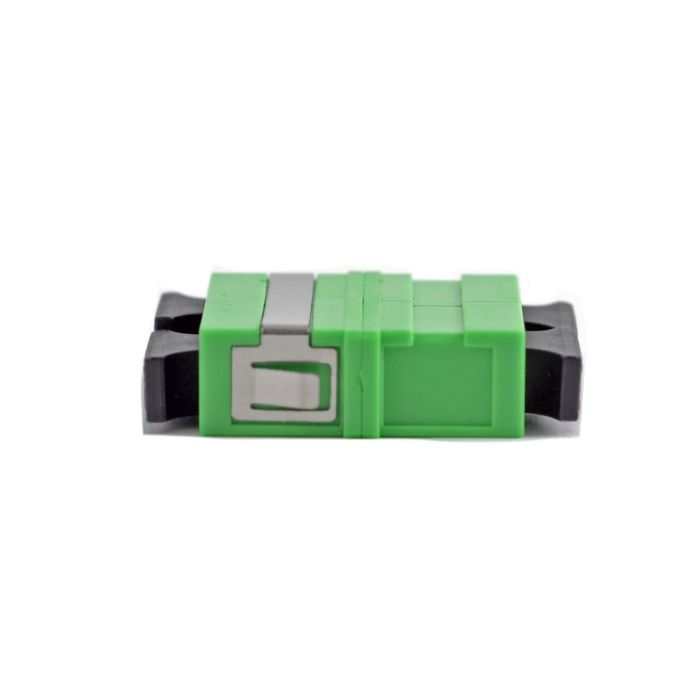

The SC APC Duplex Adapter is a precision-engineered fiber optic component designed for the secure mating of two SC APC duplex fiber optic connectors. It facilitates reliable signal transmission in singlemode network applications, ensuring low insertion loss and high connection repeatability.
Constructed with a durable green polymer housing and high-performance zirconia alignment sleeves, this adapter is optimized for APC (Angled Physical Contact) interfaces. The no-flange design allows for high-density mounting in standard patch panels, enclosures, and fiber management systems where space optimization is critical.
Key Features
-
Duplex Configuration
Supports two fiber connections simultaneously to maximize port density in equipment racks. -
Zirconia Alignment Sleeves
Utilizes high-precision ceramic sleeves for consistent fiber core alignment and stable performance. -
APC Compatibility
Specifically designed for angled physical contact connections to minimize back-reflection. -
Green Polymer Housing
Standardized color-coding for easy identification of APC singlemode components. -
No-Flange Mounting
Low-profile design ideal for dense installations where mounting flanges are not required. -
Durable Construction
Engineered with industrial-grade polymers for long-term stability in diverse operating environments.
Applications
- Telecommunications networks
- Data center cross-connects
- FTTH (Fiber to the Home) distribution
- CATV systems
- Local Area Networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | SC Duplex |
| Fiber Mode | Singlemode |
| Polish Type | APC |
| Housing Material | Polymer |
| Sleeve Material | Zirconia |
| Housing Color | Green |
| Mounting Style | No Flange |
Frequently Asked Questions
What does the "No Flange" design mean?
The adapter does not feature mounting tabs/wings, allowing it to be installed in panels where the adapter is clipped directly into the panel cutout.
Can I use this for multimode fiber?
No, this adapter is designed for singlemode APC applications. Using multimode fiber may result in performance degradation.
Why is the housing green?
Green is the industry-standard color identification for SC APC singlemode adapters.
What are the benefits of Zirconia sleeves?
Zirconia ceramic provides superior dimensional stability and wear resistance compared to phosphor bronze, ensuring long-term connection reliability.
Is this adapter compatible with standard SC connectors?
This is designed specifically for SC APC connectors. It should not be used with standard PC/UPC connectors due to potential damage to the fiber end-faces.
