Overview

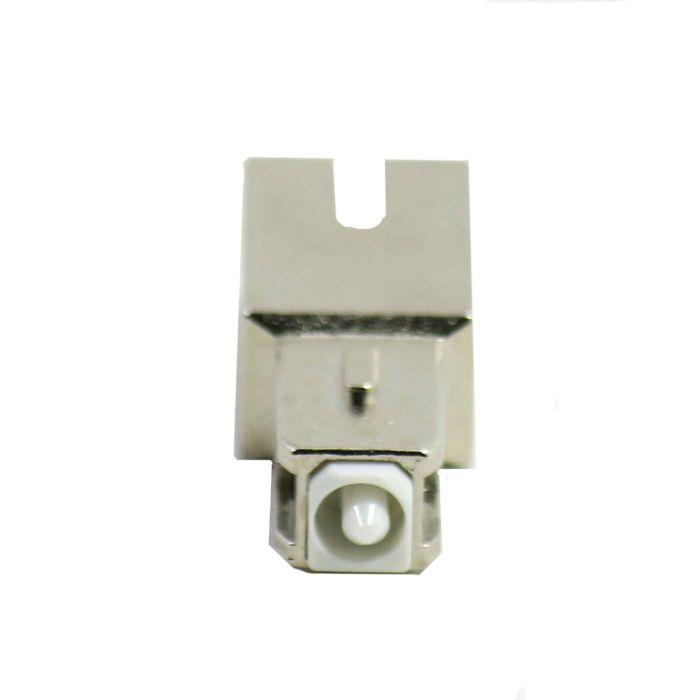

The SC/APC Male to Female Attenuator is a precision-engineered component designed to reduce signal power in singlemode fiber optic networks without compromising signal integrity. By utilizing integrated doped fiber technology, these attenuators provide consistent performance across both 1310nm and 1550nm operating wavelengths.

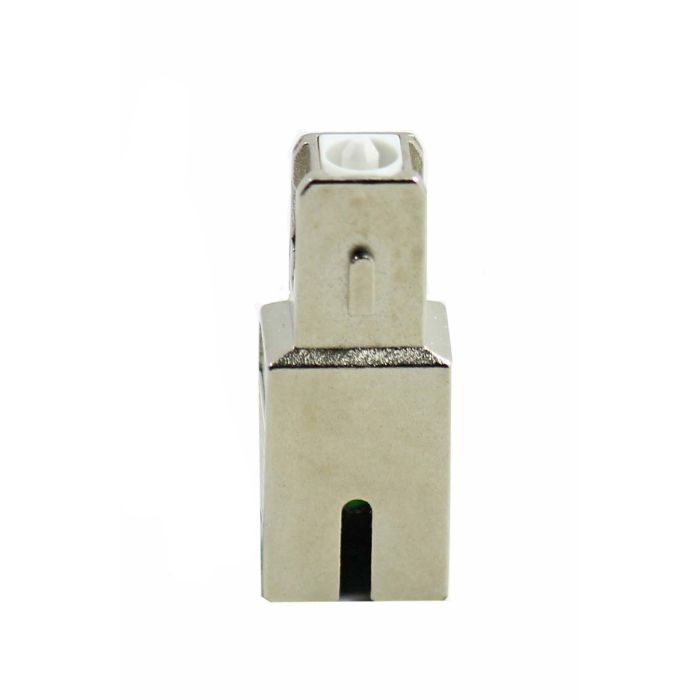

This build-out style attenuator features a convenient male-to-female interface, allowing it to be installed directly into existing patch panels or equipment ports. It is intended for use in environments where precise control over optical power levels is required to prevent saturation of sensitive receivers.
Key Features
-
Doped Fiber Technology
Utilizes high-quality doped fiber to ensure accurate and stable attenuation levels. -
Dual Wavelength Compatibility
Supports both 1310nm and 1550nm wavelengths for versatile network deployment. -
Male-to-Female Interface
Enables simple, tool-free installation into existing SC/APC adapters. -
Fixed Attenuation Value
Provides a reliable 1dB reduction for predictable signal management. -
Singlemode Optimized
Engineered specifically for singlemode fiber infrastructures. -
Compact Form Factor
Small physical footprint allows for high-density patching applications.
Applications
- Fiber optic test and measurement systems
- Receiver power level balancing
- Telecommunications and CATV networks
- Optical power margin testing
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/APC Male to Female |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 1dB |
| Fiber Type | Singlemode |
Frequently Asked Questions
What is the primary use of this attenuator?
This device is used to reduce the signal power in a singlemode fiber link, ensuring it stays within the operating range of the connected receiver.
Is this compatible with both 1310nm and 1550nm systems?
Yes, this attenuator is designed for dual-wavelength operation in both the 1310nm and 1550nm windows.
How does this install into the network?
This is a male-to-female "build-out" style device that plugs directly into an SC/APC adapter or port.
Can this be used on multimode fiber?
No, this device is designed specifically for singlemode fiber applications.
Are other attenuation levels available?
Yes, fixed attenuation values are available in 1dB increments from 1dB to 20dB.
