Overview

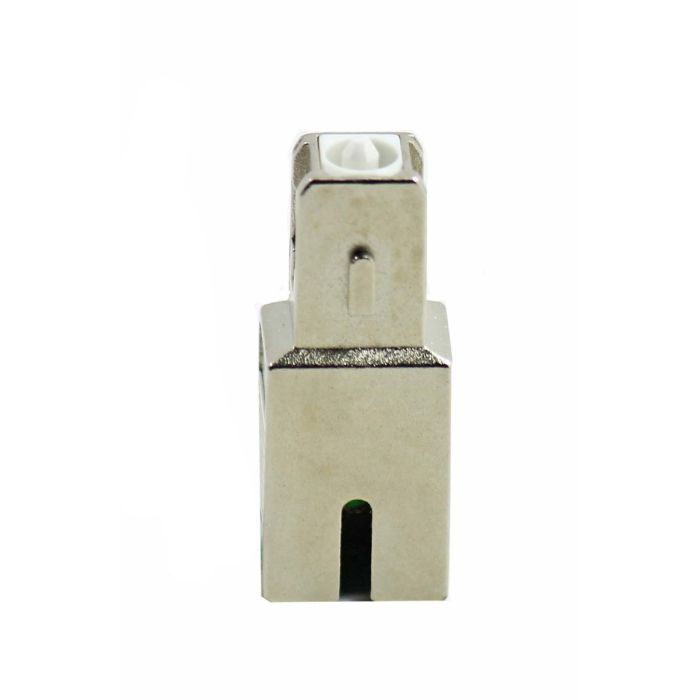

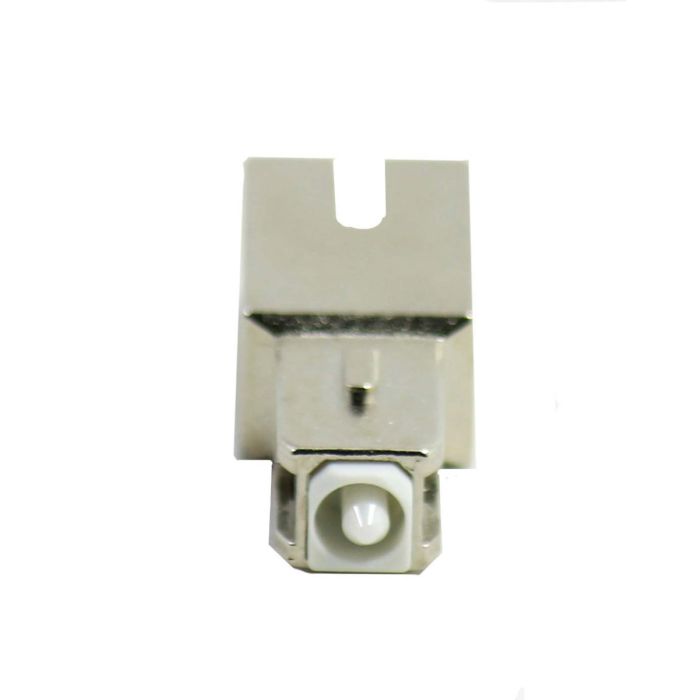

The SC/APC Male-to-Female buildout attenuator is a precision optical component designed to reduce the power level of a fiber optic signal without distorting the transmitted waveform. By utilizing high-quality doped fiber, this attenuator provides stable and reliable signal reduction, ensuring optimal performance for sensitive receiving equipment.
This attenuator is optimized for dual-wavelength operation at both 1310nm and 1550nm, making it a versatile solution for standard singlemode network environments. Its compact, integrated male-to-female design allows for easy installation directly onto existing patch panels or equipment ports, facilitating efficient link margin management in telecommunications and data center infrastructure.
Key Features
-
Dual-Wavelength Compatibility
Optimized for use at both 1310nm and 1550nm, allowing for application flexibility in diverse singlemode network systems. -
Fixed Attenuation Level
Provides a precise 4dB reduction in signal power, ensuring consistent link performance and preventing receiver saturation. -
Male-to-Female Interface
Designed for direct, inline connection between existing SC/APC adapter interfaces, minimizing the need for extra patch cords. -
Doped Fiber Technology
Utilizes integrated doped fiber to achieve stable signal attenuation while maintaining high signal integrity. -
Compact Form Factor
Space-saving design allows for high-density deployment in rack-mount enclosures and patch panels. -
Singlemode Precision
Engineered specifically for singlemode fiber applications to ensure minimal back-reflection and low insertion loss.
Applications
- Telecommunications network power management
- Data center equipment protection
- Fiber optic test and measurement setups
- Prevention of receiver saturation in high-power links
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18741A04 |
| Connector Type | SC/APC (Male to Female) |
| Attenuation Value | 4dB |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
Is this attenuator compatible with 1310nm networks?
Yes, it is designed for operation at both 1310nm and 1550nm.
Can this be installed directly on a patch panel?
Yes, the male-to-female design allows it to plug directly into an existing SC/APC adapter port.
Are other attenuation values available?
Fixed attenuation values are available in 1dB increments ranging from 1dB to 20dB.
