Overview

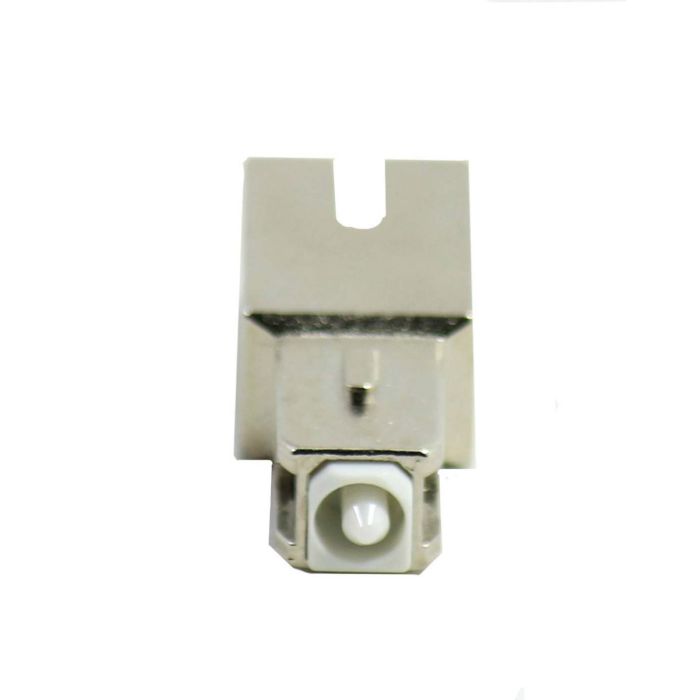

The SC/APC male-to-female fiber optic attenuator is a passive component designed to reduce the power level of an optical signal within a singlemode network. By introducing a precisely calibrated amount of loss, this device prevents receiver saturation in high-power fiber optic systems, ensuring optimal performance for sensitive equipment.
This attenuator is optimized for operation at both 1310nm and 1550nm wavelengths. Featuring a robust build, it is intended for use in data centers, telecommunications networks, and fiber optic testing environments where signal power management is critical.
Key Features
-
Singlemode Compatibility
Optimized for use with standard 9/125 singlemode fiber systems. -
SC/APC Interface
Utilizes angled physical contact (APC) polishing to minimize back reflections. -
Dual Wavelength Operation
Supports consistent performance at both 1310nm and 1550nm wavelengths. -
Fixed Attenuation
Provides a stable 20dB reduction in optical signal power. -
Male-to-Female Design
Allows for easy integration into existing patch panels or equipment ports. -
Compact Form Factor
Saves space in high-density rack configurations.
Applications
- Telecommunications network power level balancing
- Data center fiber optic equipment protection
- Fiber optic test and measurement systems
- High-power signal attenuation
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/APC |
| Gender | Male to Female |
| Fiber Mode | Singlemode |
| Attenuation | 20dB |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the purpose of this attenuator?
This device is used to reduce the signal strength of a fiber optic connection, which is often necessary to prevent signal clipping or damage at the receiver end.
Is this for singlemode or multimode fiber?
This is designed specifically for singlemode fiber applications.
What does SC/APC mean?
SC is the connector body style, and APC refers to the Angled Physical Contact polish, which reduces back reflections compared to flat polish connectors.
Can I use this for 1310nm and 1550nm?
Yes, this attenuator is specified for dual-window operation at both 1310nm and 1550nm.
Is this a fixed or variable attenuator?
This is a fixed attenuator providing a consistent 20dB of signal reduction.
