Overview

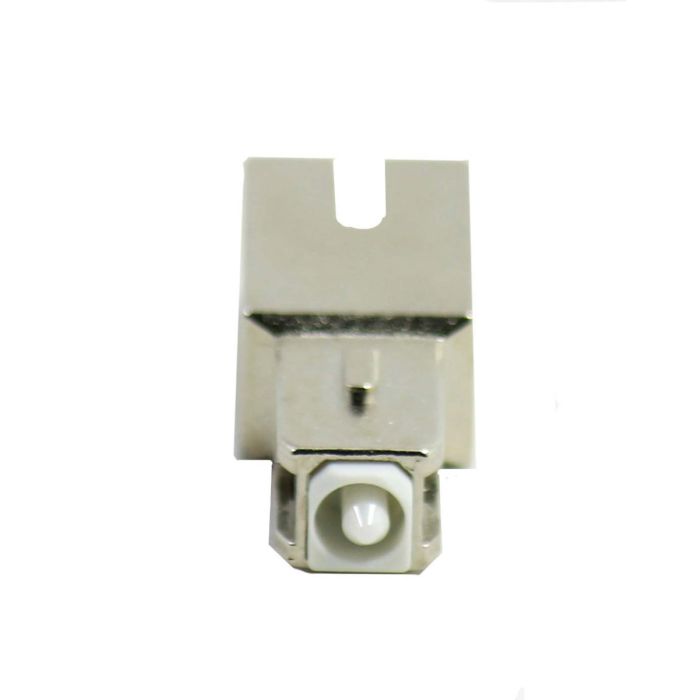

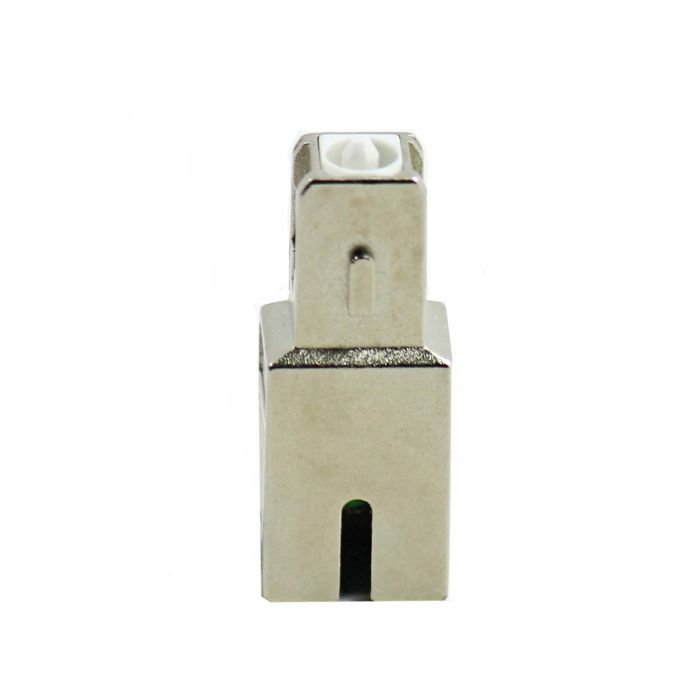

The SC/APC Male-to-Female buildout attenuator is a precision fiber optic component designed to reduce signal power in singlemode networks. It features a doped fiber core that provides stable, reliable attenuation across both 1310nm and 1550nm operating windows.
This component is engineered for straightforward in-line installation, serving as a direct connection between an existing female adapter and a male patch cord. It is ideal for maintaining optimal signal levels in data center, telecommunications, and enterprise network environments to prevent receiver saturation.
Key Features
-
Doped Fiber Technology
Uses specialized doped fiber to ensure accurate and stable attenuation levels. -
Broad Compatibility
Supports standard singlemode operation at both 1310nm and 1550nm wavelengths. -
Male-to-Female Interface
Allows for easy integration into existing patch panels and adapters without additional cabling. -
Precise Attenuation
Available in fixed values to meet specific network power budget requirements. -
Compact Form Factor
Minimal footprint design facilitates high-density mounting in crowded equipment racks. -
SC/APC Polish
Angled Physical Contact (APC) polish provides superior return loss performance for demanding applications.
Applications
- Telecommunications networks
- Data center optical distribution
- CATV systems
- Network power level balancing
- Preventing receiver saturation in high-power systems
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/APC |
| Gender | Male to Female |
| Attenuation Value | 3dB |
| Operating Wavelength | 1310nm / 1550nm |
| Fiber Mode | Singlemode |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the intensity of an optical signal to prevent receiver saturation in high-power fiber optic systems.
Is this compatible with both 1310nm and 1550nm systems?
Yes, it is designed to perform accurately across both common singlemode operating wavelengths.
How do I install this device?
The male side plugs into an existing bulkhead adapter, and your existing patch cord plugs into the female side of the attenuator.
Can I use this for different attenuation values?
This specific part is for 3dB attenuation; fixed values are available from 1dB to 20dB.
What does SC/APC mean?
It signifies an SC-style connector with an Angled Physical Contact (APC) polish, typically identified by a green housing, used to minimize back-reflections.
