Overview

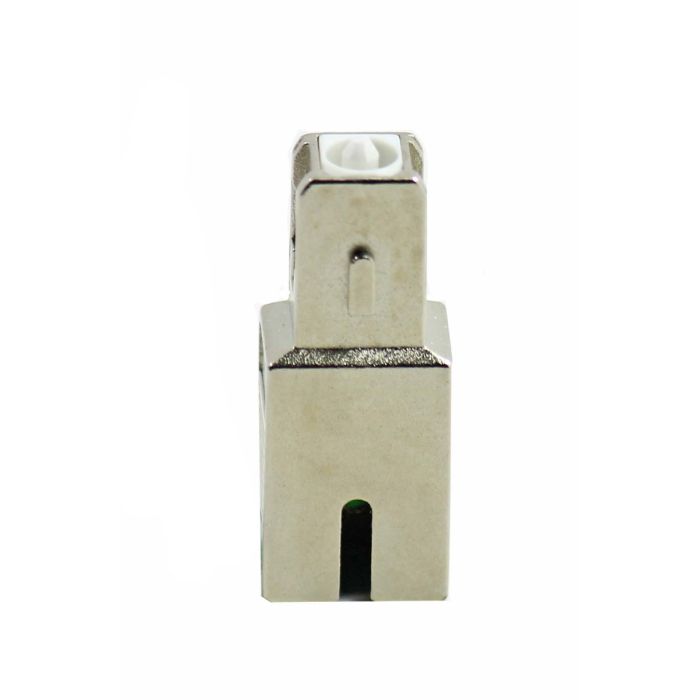

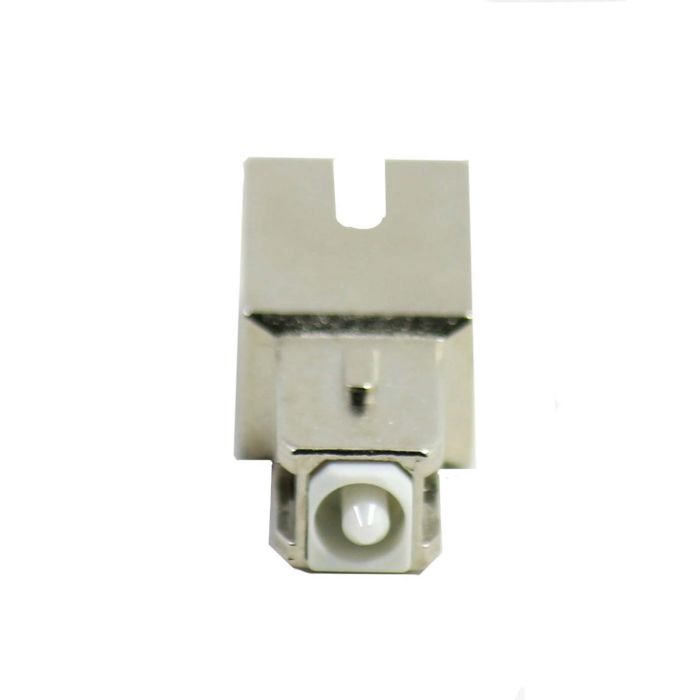

The SC/APC Male-to-Female buildout attenuator is designed for precise signal reduction in singlemode fiber optic networks. By incorporating doped fiber technology, this device ensures consistent signal attenuation, preventing receiver saturation in high-power optical systems.
This attenuator is optimized for dual-window operation, supporting both 1310nm and 1550nm wavelengths. Its compact, integrated male-to-female design allows for direct connection to existing bulkhead adapters or equipment ports, making it a convenient solution for field technicians and network operators managing signal levels in data center and telecommunications environments.
Key Features
-
Dual-Wavelength Compatibility
Optimized for performance at both 1310nm and 1550nm for versatile network use. -
Male-to-Female Design
Easily connects directly to existing SC/APC adapters without additional patch cables. -
Doped Fiber Construction
Utilizes reliable doped fiber technology to achieve precise, stable attenuation. -
Fixed Attenuation
Provides a factory-calibrated 10dB reduction for consistent network signal management. -
SC/APC Interface
Features industry-standard angle-polished connectors for high return loss performance. -
Compact Form Factor
Saves space in dense rack-mount environments and fiber enclosures.
Applications
- Telecommunications network signal leveling
- Data center equipment protection
- FTTH distribution networks
- Optical power budget balancing
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18741A10 |
| Connector Type | SC/APC Male to Female |
| Attenuation Value | 10dB |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
Is this attenuator compatible with both 1310nm and 1550nm wavelengths?
Yes, it is designed for dual-wavelength operation.
Does this unit require an additional patch cord?
No, as a male-to-female buildout attenuator, it connects directly to an existing SC/APC bulkhead adapter.
What is the connector type for this product?
This is an SC/APC connector type.
Can I use this for multimode fiber?
No, this device is specifically for singlemode fiber applications.
What is the standard attenuation for this specific part?
This part provides a fixed 10dB of attenuation.
