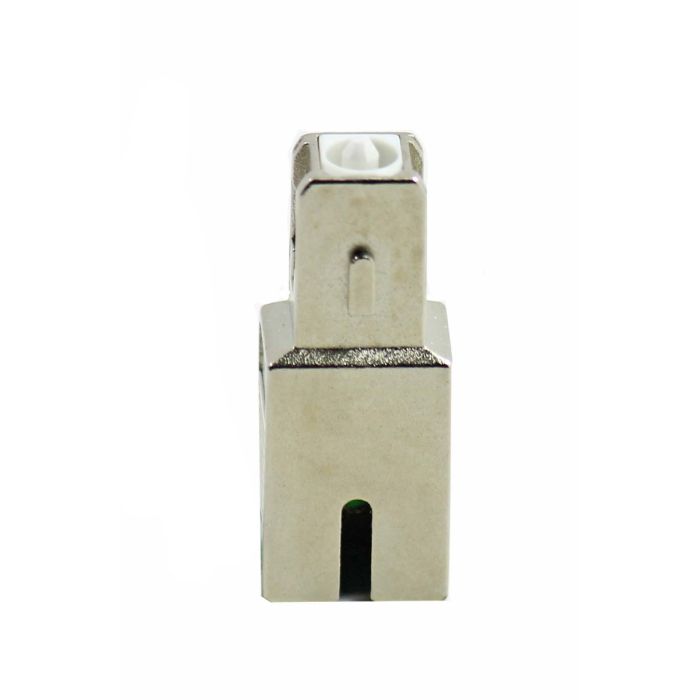

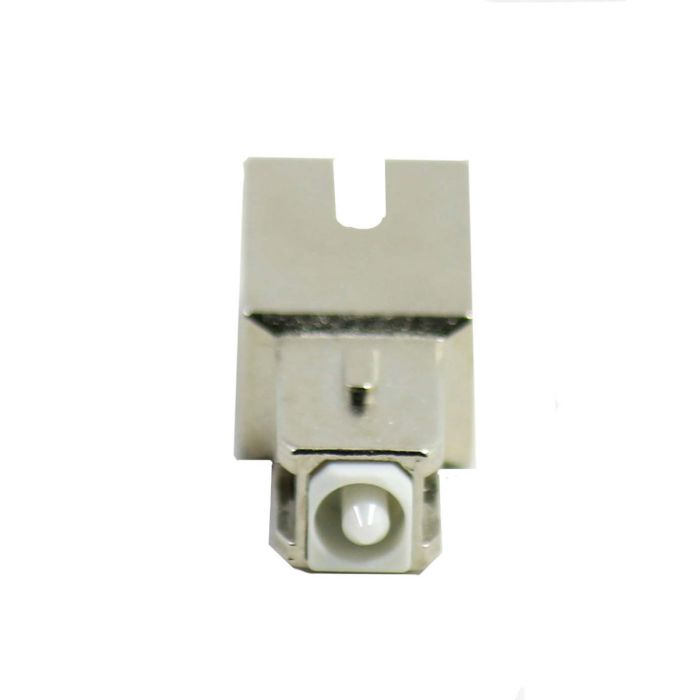

SC/APC Male to Female Singlemode 1310/1550nm Attenuator 5dB

Overview

The SC/APC Male-to-Female Attenuator is a precision optical component designed to reduce signal power in singlemode fiber optic networks. By utilizing doped fiber technology, this build-out style attenuator provides a consistent, reliable reduction in light intensity, preventing receiver saturation in high-power systems.

This attenuator is optimized for performance at both 1310nm and 1550nm operating wavelengths. Its male-to-female configuration allows for easy integration into existing patch panels or equipment ports, functioning effectively as a fixed-value reduction tool for telecommunications and data center environments.

Key Features

• Doped Fiber Technology
  Uses specialized doped fiber to ensure stable and precise attenuation levels.
• Dual Wavelength Support
  Optimized for both 1310nm and 1550nm, providing versatility for various singlemode applications.
• Male-to-Female Configuration
  Allows for quick, plug-and-play installation onto existing SC/APC adapters.
• Fixed Attenuation
  Ensures a consistent signal drop of 5dB, essential for balanced link power budgets.
• Compact Design
  Build-out style housing minimizes space requirements in high-density patch panels.
• Singlemode Compatibility
  Engineered specifically for singlemode systems to maintain signal integrity.

Applications

• Fiber optic telecommunications networks
• Data center link power balancing
• Optical equipment testing and calibration
• CATV and FTTX installations

Technical Specifications

Frequently Asked Questions

Is this attenuator compatible with both 1310nm and 1550nm wavelengths?
Yes, it is designed for operation across both common singlemode wavelengths.

What is the connection type?
This is an SC/APC male-to-female build-out attenuator.

Can I use this for multimode fiber?
No, this device is designed specifically for singlemode fiber optic applications.

Is the attenuation fixed or variable?
This is a fixed attenuator with a value of 5dB.

How does this install into a network?
It features a male-to-female design that attaches directly to an existing SC/APC adapter or port.

Downloads

• Product PDF
