Overview

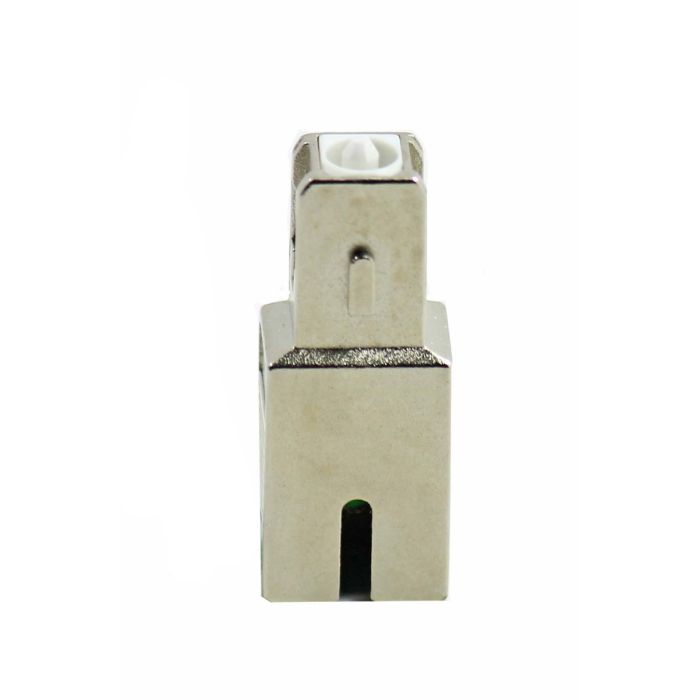

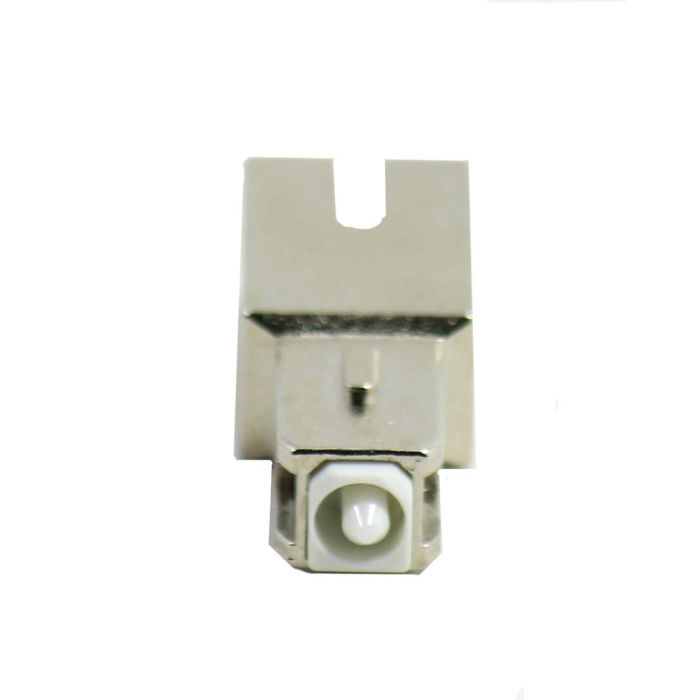

The SC/APC Male to Female Attenuator is a precision fiber optic component designed to reduce signal power in singlemode networks. By integrating doped fiber technology, this device ensures consistent signal reduction, making it an essential tool for managing optical power levels to prevent receiver saturation in high-power fiber optic links.
Engineered for versatility, this attenuator is optimized for dual-wavelength operation at 1310nm and 1550nm. Its compact male-to-female (build-out) design allows for direct, space-saving connection to existing adapters and equipment ports, providing a stable and reliable solution for field technicians and data center operators.
Key Features
-
Dual-Wavelength Compatibility
Optimized for use at both 1310nm and 1550nm, ensuring broad utility across standard singlemode network infrastructures. -
Precision Attenuation
Features a fixed 6dB attenuation value, providing predictable and stable signal power reduction. -
Male-to-Female Design
Build-out style connector allows for seamless, direct integration into existing equipment ports or patch panels. -
Doped Fiber Technology
Utilizes high-quality doped fiber to maintain signal integrity while effectively managing optical power levels. -
SC/APC Connector Interface
Standard SC/APC interface ensures compatibility with widely used singlemode hardware and industry-standard APC polish requirements. -
Compact Form Factor
Small profile design minimizes space requirements in high-density rack and patch panel environments.
Applications
- Telecommunications network power management
- Data center equipment protection
- Signal balancing in fiber optic testing
- CATV and FTTx link power adjustments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18741A06 |
| Attenuation Value | 6dB |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Connector Type | SC/APC Male to Female |
Frequently Asked Questions
What is the primary purpose of this attenuator?
It is used to reduce the intensity of an optical signal in a fiber optic link to prevent the overloading of downstream equipment receivers.
Can this be used on 1310nm and 1550nm networks?
Yes, this attenuator is designed to be suitable for operation at both 1310nm and 1550nm wavelengths.
What does the male-to-female configuration mean?
It indicates the device can plug directly into a female port (like an adapter) and provides a female port on the other end to receive a male connector.
Is this for Singlemode or Multimode?
This is a Singlemode attenuator.
What connector polish is this?
This device uses an APC (Angled Physical Contact) polish.
