Overview

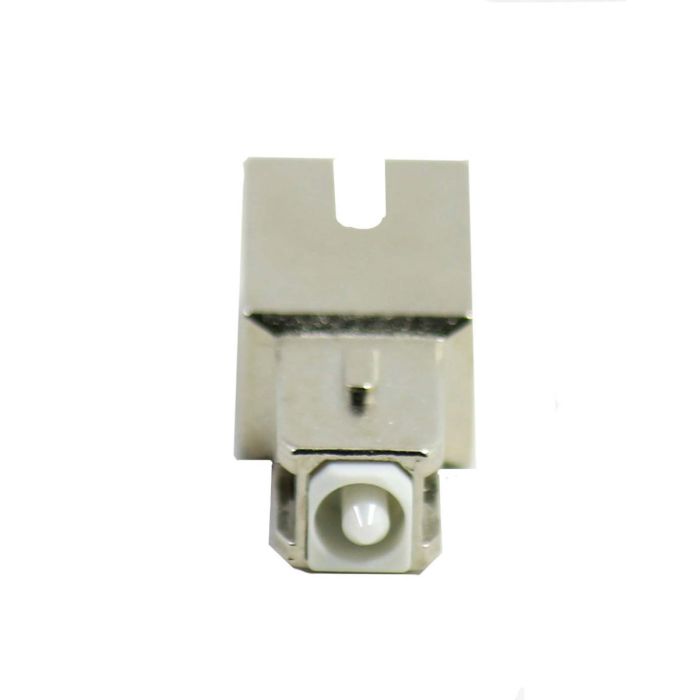

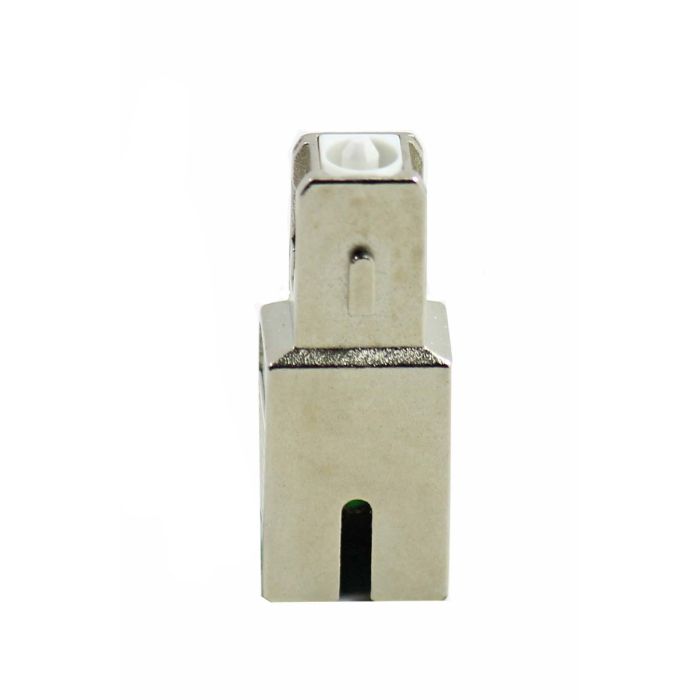

The SC/APC Male-to-Female buildout attenuator is a passive fiber optic component designed to reduce the optical power level in singlemode fiber systems. It is engineered for precision signal management, allowing network technicians to prevent receiver saturation in high-power optical links.
Featuring a male-to-female (plug-and-jack) interface, this attenuator is constructed with doped fiber technology, ensuring stable and consistent performance across both the 1310nm and 1550nm operating wavelengths. It is suitable for use in data centers, telecommunications headends, and OSP environments where precise signal attenuation is required to maintain link integrity.
Key Features
-
Doped Fiber Technology
Utilizes specialized doped fiber to achieve stable, accurate attenuation levels in varying optical environments. -
Dual Wavelength Compatibility
Designed to function effectively at both 1310nm and 1550nm, supporting versatile network applications. -
Male-to-Female Configuration
Standard plug-and-jack design allows for simple integration between existing patch cords and hardware ports. -
Fixed Attenuation Value
Provides a precise 9dB reduction, ensuring predictable signal levels for sensitive optical equipment. -
SC/APC Interface
Features APC (Angled Physical Contact) polish to minimize back-reflection in high-performance networks. -
Compact Design
Small form factor ensures minimal footprint within dense rack environments or patch panels.
Applications
- Telecommunications network power level balancing
- Data center fiber link testing and installation
- Preventing saturation of optical receivers
- CATV and FTTx deployments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18741A09 |
| Connector Type | SC/APC Male to Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation | 9dB |
Frequently Asked Questions
What does the 9dB value signify?
The 9dB rating indicates the fixed amount of optical signal reduction provided by the device.
Is this compatible with both 1310nm and 1550nm systems?
Yes, this attenuator is explicitly designed for dual-window operation at 1310nm and 1550nm.
Can I use this with standard UPC connectors?
No, this device features an APC (Angled Physical Contact) polish. Connecting it to a UPC (Ultra Physical Contact) connector will cause damage and high insertion loss.
Is this a fixed or variable attenuator?
This is a fixed attenuator.
How does this connect to my equipment?
The male end connects to a standard SC/APC adapter or bulkhead, while the female end accepts a standard SC/APC patch cord.
