Overview

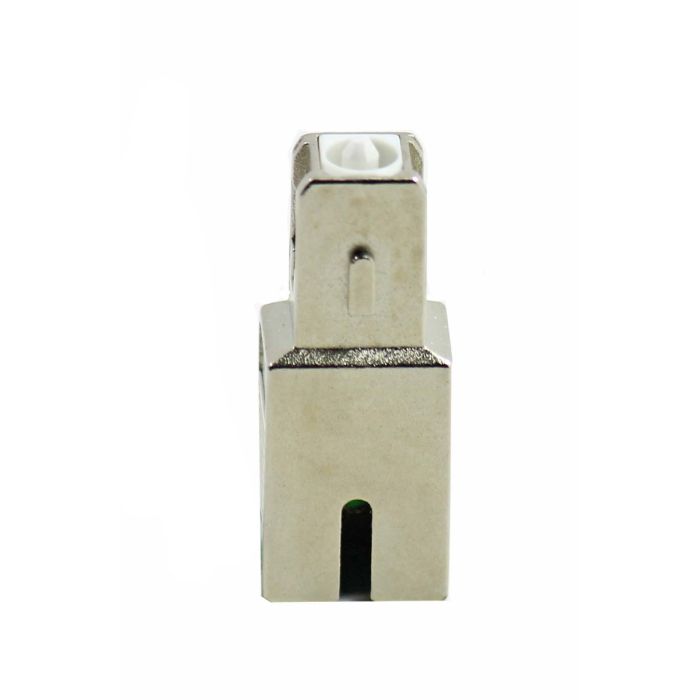

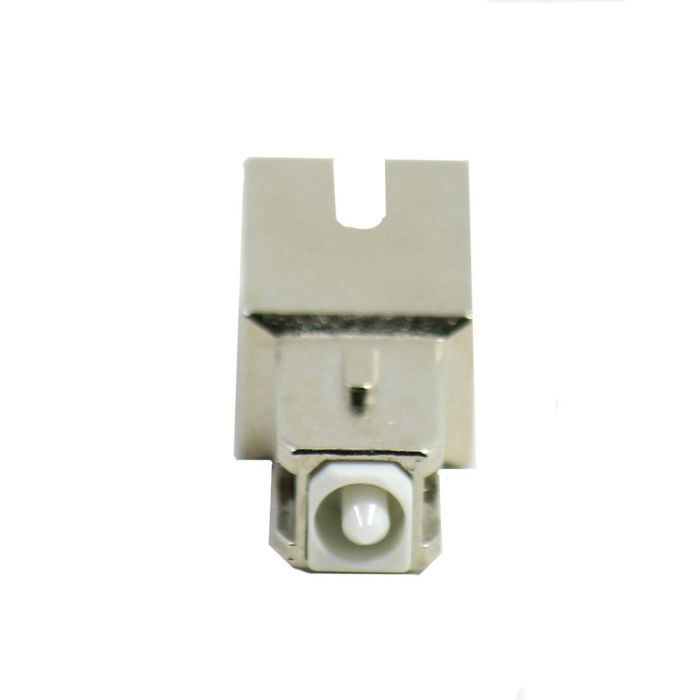

The SC/APC Male-to-Female fiber optic attenuator is designed to precisely reduce signal intensity in singlemode optical networks. By incorporating doped fiber technology, this device ensures consistent signal reduction, effectively managing optical power levels to prevent saturation in sensitive equipment.
This buildout-style attenuator is optimized for operation at both 1310nm and 1550nm wavelengths, making it a versatile component for telecommunications, data centers, and test environments. Its compact, connector-style housing allows for easy integration directly into existing patch panels or equipment interfaces.
Key Features
-
Doped Fiber Construction
Uses high-quality doped fiber to provide precise and stable light attenuation for accurate signal management. -
Dual Wavelength Support
Optimized for both 1310nm and 1550nm singlemode applications, ensuring compatibility with standard network architectures. -
Buildout Design
The male-to-female configuration allows for direct connection to existing ports, simplifying installation in field and rack environments. -
SC/APC Interface
Utilizes an Angled Physical Contact (APC) polish to minimize back-reflection, which is critical for high-return-loss requirements. -
Fixed Attenuation Value
Provides a reliable, factory-calibrated 7dB attenuation level, ensuring predictable network performance.
Applications
- Telecommunications network power management
- Data center fiber optic equipment protection
- Optical signal testing and calibration
- Fiber optic link budget balancing
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/APC (Male to Female) |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 7dB |
Frequently Asked Questions
What does the 7dB value represent?
It represents the amount of signal reduction in decibels (dB) provided by the attenuator.
Is this compatible with both 1310nm and 1550nm systems?
Yes, this attenuator is designed to work across both common singlemode operating wavelengths.
What is an APC connector?
APC stands for Angled Physical Contact; it features an 8-degree angle on the ferrule face to reduce back-reflections.
Can I use this with multimode fiber?
No, this is specifically designed for singlemode fiber applications.
How is this installed?
It is a male-to-female device that plugs directly into an existing SC/APC adapter or port.
