Overview

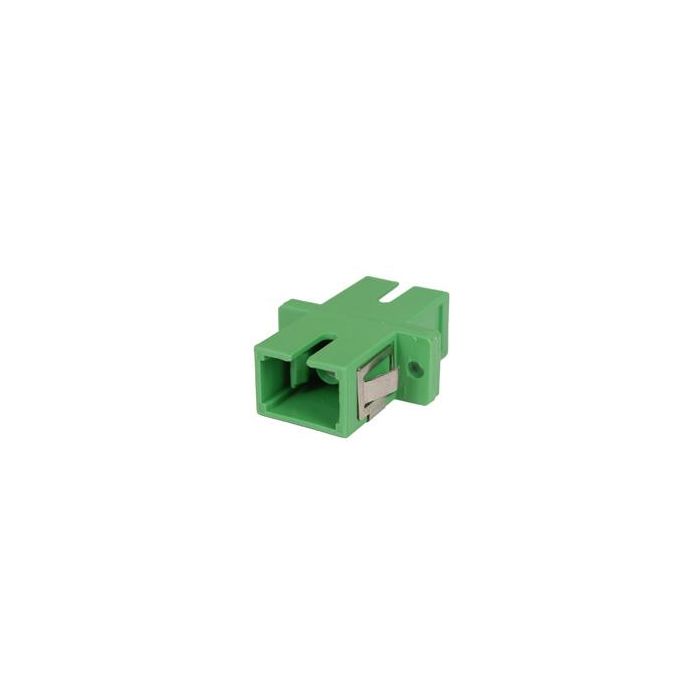

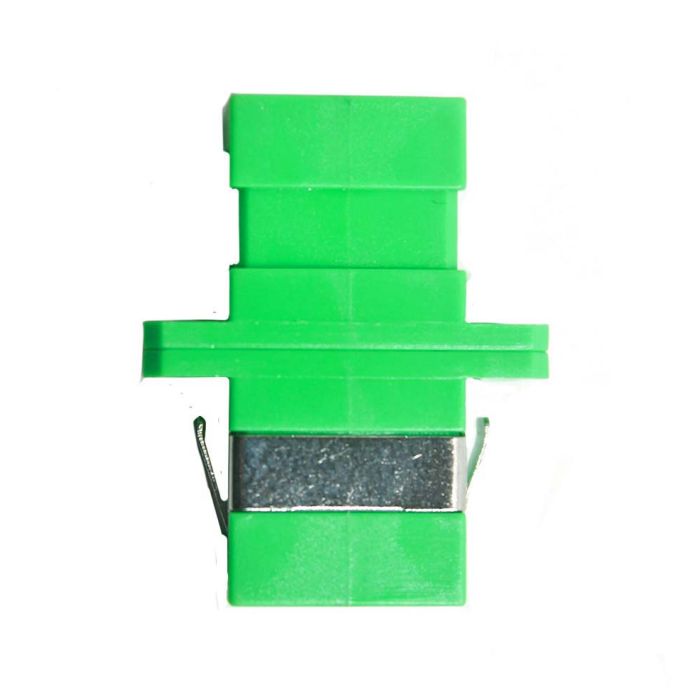

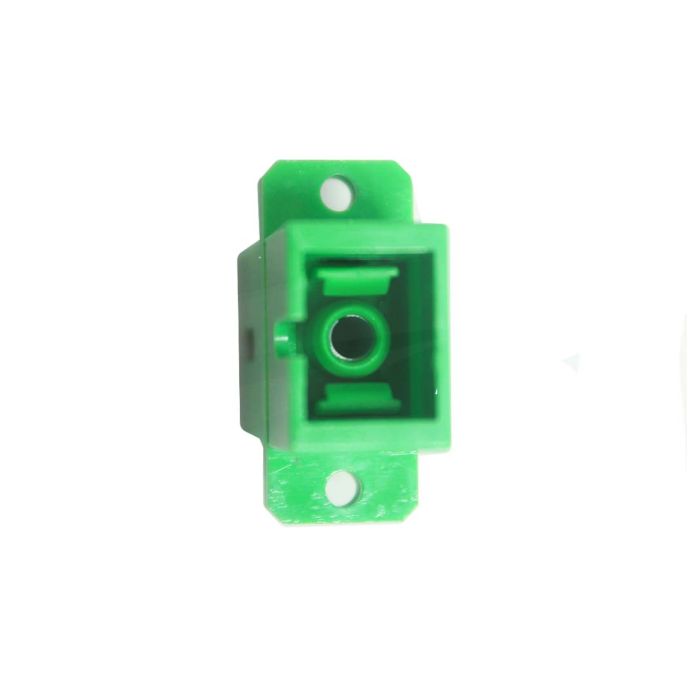

The SC APC Simplex Adapter is a precision-engineered fiber optic component designed for the secure and reliable alignment of singlemode fiber connectors. Featuring a standard SC footprint, this adapter is equipped with a high-quality zirconia ceramic alignment sleeve, which ensures consistent optical performance and low insertion loss for critical network connections.
Designed for easy installation, this simplex adapter includes an integrated mounting flange, making it suitable for secure attachment to patch panels, wall mount enclosures, and rack-mount hardware. The durable green polymer housing provides clear identification for APC (Angled Physical Contact) connections, helping to prevent accidental cross-connection with standard UPC components in fiber distribution environments.
Key Features
-
Zirconia Ceramic Sleeve
Ensures high-precision fiber core alignment for reliable, low-loss signal transmission. -
APC Compatible Design
Green housing color-coding indicates APC polish, reducing the risk of improper mating. -
Integrated Flange
Allows for secure, stable mounting in various rack-mount and wall-mount enclosures. -
Simplex Configuration
Compact single-port design for efficient space utilization in high-density panels. -
Polymer Housing
Lightweight yet durable construction provides effective protection for the internal mating sleeve. -
Singlemode Optimized
Engineered to maintain strict alignment tolerances required for singlemode network applications.
Applications
- Fiber Optic Patch Panels
- Wall Mount Enclosures
- Telecommunication Distribution Frames
- FTTH (Fiber to the Home) Termination Points
- Data Center Cross-Connects
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | SC Simplex |
| Fiber Mode | Singlemode |
| Polish Type | APC |
| Housing Material | Polymer |
| Housing Color | Green |
| Alignment Sleeve Material | Zirconia |
| Mounting | Flanged |
Frequently Asked Questions
What does the green color on this adapter signify?
The green color is the industry-standard designation for APC (Angled Physical Contact) connectors, which feature an 8-degree endface angle to minimize back-reflection.
Can I use this with Multimode fiber?
No, this adapter is specifically optimized for Singlemode fiber. Using it with Multimode connectors may result in improper alignment and performance degradation.
Does this adapter include mounting hardware?
The adapter features an integrated mounting flange; however, specific panel mounting screws are typically provided with your patch panel or enclosure.
What is the purpose of the Zirconia sleeve?
Zirconia is a ceramic material used for alignment sleeves because of its high durability and ability to maintain precise alignment between ferrules over many mating cycles.
Is this a simplex or duplex adapter?
This is a simplex adapter, designed to house a single SC fiber connection.
