Overview

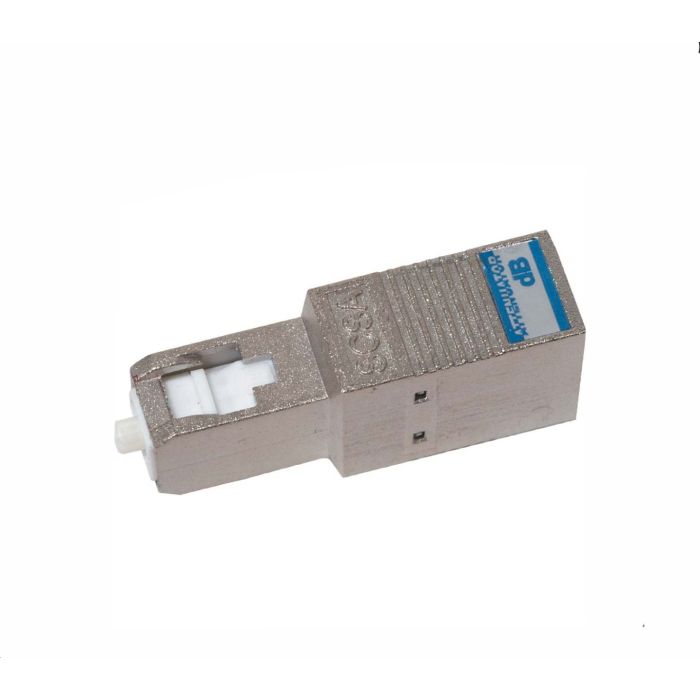

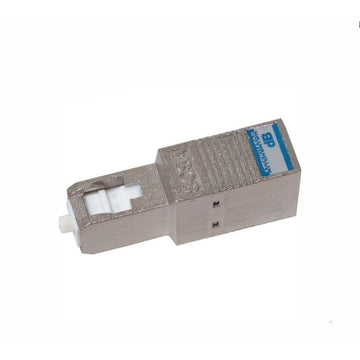

The SC Attenuator is a precision-engineered, male-to-female fiber optic component designed to reduce signal power in singlemode networks. By integrating high-quality doped fiber, this attenuator provides reliable signal attenuation for sensitive equipment, ensuring optimal performance across both 1310nm and 1550nm operating wavelengths.
Designed for easy integration into existing fiber runs, this device features a build-out style architecture that allows for direct connection between patch cords and adapters. This robust construction is well-suited for data centers, telecommunications facilities, and various testing environments where signal power management is essential to prevent receiver saturation.
Key Features
-
Singlemode Compatibility
Optimized for 1310nm and 1550nm wavelengths, ensuring accurate attenuation for standard singlemode fiber applications. -
Fixed Attenuation Level
Features a stable 10dB attenuation value to provide consistent signal power reduction. -
Build-Out Design
Male-to-female interface enables simple plug-and-play installation between existing SC fiber connections. -
UPC Polish
Utilizes Ultra Physical Contact (UPC) polishing for effective signal transmission and minimized back-reflection. -
Compact Form Factor
The space-saving design is ideal for high-density patch panels and equipment racks where vertical or horizontal clearance is limited. -
Doped Fiber Technology
Incorporates advanced doped fiber materials for precise light absorption and long-term stability.
Applications
- Telecommunications networks
- Data center equipment interconnections
- Optical power level testing
- Network maintenance and diagnostic procedures
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC |
| Polish | UPC |
| Configuration | Male to Female |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 10dB |
| Fiber Mode | Singlemode |
Frequently Asked Questions
What is the purpose of this attenuator?
This device reduces the intensity of an optical signal in a singlemode fiber link, which is necessary to prevent overloading the receiver in certain high-power network configurations.
Can this be used on multimode fiber?
No, this product is specifically engineered for singlemode fiber operation at 1310nm and 1550nm wavelengths.
Is the attenuation fixed or adjustable?
This is a fixed attenuator with a value of 10dB.
What does the male-to-female configuration mean?
It features a plug (male) end that connects into a patch panel or adapter, and a receptacle (female) end that allows a patch cord to plug into it, effectively acting as an extension.
What type of polish is used?
This model features a UPC (Ultra Physical Contact) polish.
