Overview

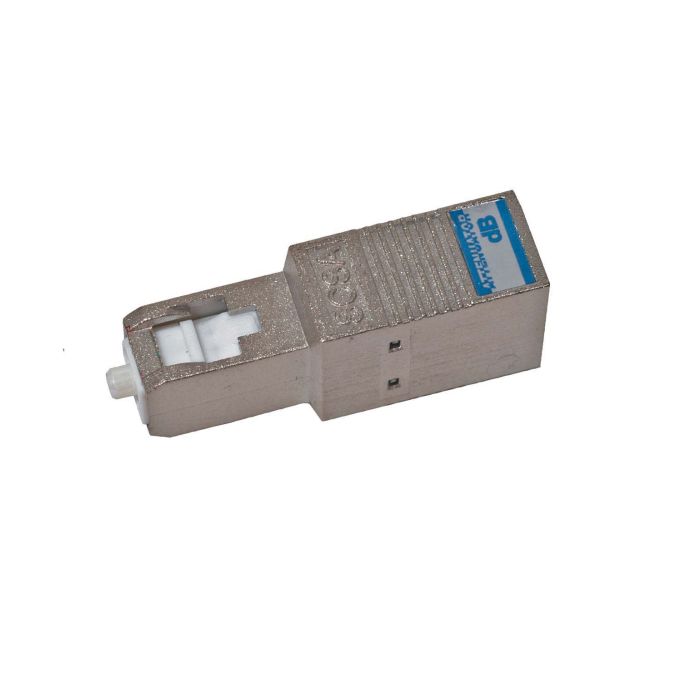

The SC Attenuator Male to Female is a precision fiber optic component designed to reduce signal power in singlemode networks. It features a male-to-female (plug-and-jack) interface, allowing it to be easily integrated into existing fiber links, patch panels, or adapter bulkheads.
Constructed with doped fiber, this attenuator provides stable performance across both the 1310nm and 1550nm operating wavelengths. It is ideal for balancing optical power levels in telecommunications, CATV, and data center environments to prevent receiver saturation in high-power applications.
Key Features
-
Doped Fiber Technology
Utilizes high-quality doped fiber to achieve precise attenuation levels with minimal signal distortion. -
Broad Wavelength Compatibility
Optimized for operation at both 1310nm and 1550nm, ensuring flexibility across various singlemode network applications. -
Compact Male-to-Female Design
Connects directly to equipment ports or existing cable assemblies for space-saving integration. -
Consistent Attenuation
Engineered to deliver stable signal reduction performance throughout the lifespan of the component. -
Standard SC Interface
Compatible with standard SC-type adapters and ports commonly found in modern fiber infrastructure. -
Simplified Installation
Plug-and-play design requires no specialized tools, facilitating quick deployment by field technicians.
Applications
- Telecommunications networks
- CATV systems
- Data center optical power balancing
- Fiber optic testing and measurement setups
- Preventing receiver saturation
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC Male to Female |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Polish | UPC |
| Attenuation Value | 2dB |
Frequently Asked Questions
What does the male-to-female interface mean?
This means the device acts as a build-out attenuator; one end plugs directly into a bulkhead or adapter, and the other end accepts a standard male fiber patch cord.
Is this attenuator suitable for 1550nm?
Yes, this attenuator is specifically designed for dual-wavelength operation at both 1310nm and 1550nm.
Can I use this on multimode fiber?
No, this device is designed for singlemode fiber applications.
What is the polish type?
This model features a UPC (Ultra Physical Contact) polish.
Can I daisy-chain these for higher attenuation?
While technically possible, it is generally recommended to use a single attenuator of the correct value to minimize connection loss and back-reflection.
