Overview

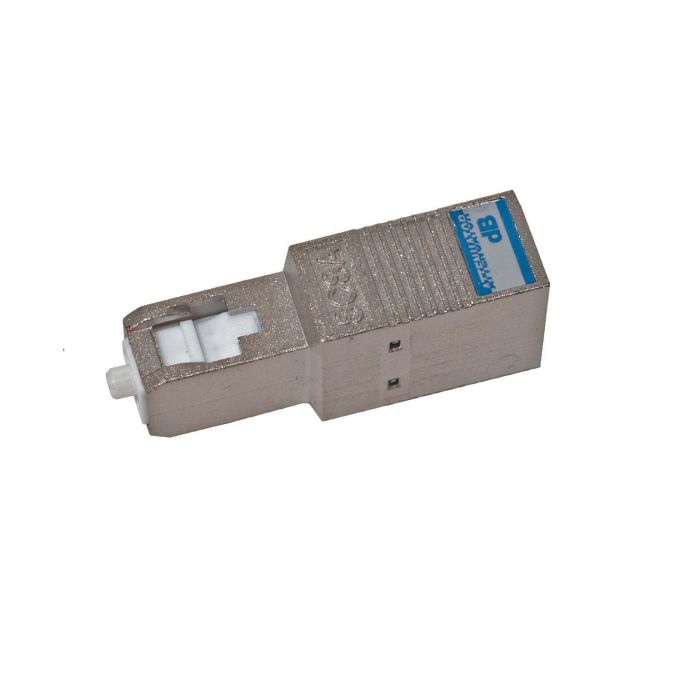

The SC Male-to-Female Attenuator is a high-precision fiber optic component designed to reduce signal power in singlemode networks. It is specifically engineered to manage optical power levels, preventing receiver saturation in high-power transmission systems.
Constructed with doped fiber technology, this attenuator is optimized for dual-wavelength performance across 1310nm and 1550nm operating windows. It features a convenient male-to-female buildout design, allowing for quick, direct integration between existing patch cords and equipment ports without requiring additional jumper cables.
Key Features
-
Dual-Wavelength Compatibility
Optimized for reliable operation at both 1310nm and 1550nm wavelengths. -
Fixed Attenuation
Provides precise 5dB signal reduction for consistent network performance. -
Buildout Design
Male-to-female interface enables direct connection to adapter ports or equipment interfaces. -
Doped Fiber Technology
Utilizes advanced fiber doping for stable and accurate attenuation values. -
Standard SC Interface
Ensures broad compatibility with existing SC-based network infrastructure. -
UPC Polish
Features Ultra Physical Contact polish to minimize back-reflection.
Applications
- Telecommunications network power balancing
- Fiber optic test and measurement setups
- CATV and broadband distribution systems
- Preventing saturation in optical receivers
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC Male to Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 5dB |
| Polish | UPC |
Frequently Asked Questions
What does the male-to-female design mean?
It means the device has an SC connector plug on one end and an SC adapter port on the other, allowing it to connect directly to equipment or patch panels.
Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed to perform accurately at both 1310nm and 1550nm wavelengths.
What polish type is used?
This model features a UPC (Ultra Physical Contact) polish.
Can I use this for multimode fiber?
No, this is specified for singlemode fiber applications.
What is the attenuation value of this unit?
This specific unit provides a fixed attenuation of 5dB.
