Overview

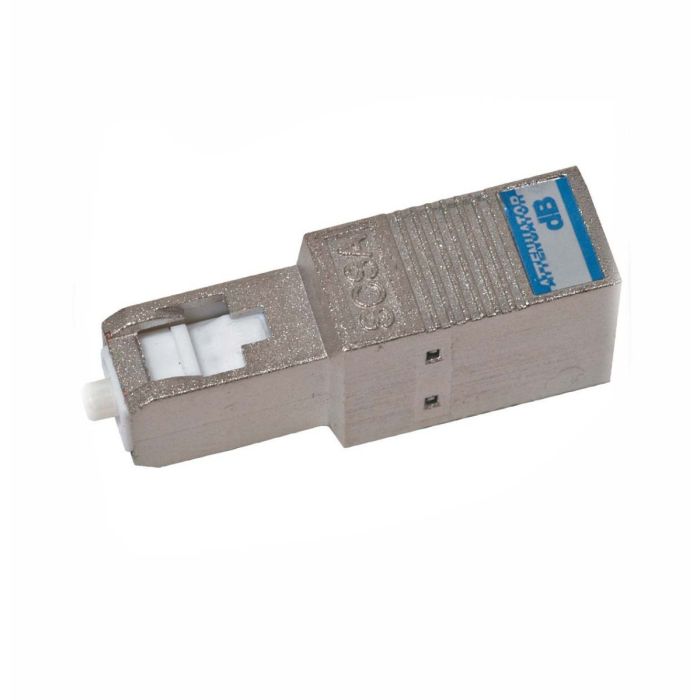

The SC Male-to-Female Attenuator is an essential component designed to reduce signal power in singlemode fiber optic networks without disrupting the integrity of the connection. Utilizing doped fiber technology, this buildout-style attenuator provides precise signal level adjustment to prevent receiver saturation in high-power systems.
This device is optimized for dual-window operation, covering both the 1310nm and 1550nm wavelengths. Its compact male-to-female design allows for easy integration into existing patch panels or equipment ports, offering a straightforward solution for balancing link power budgets in data centers and telecommunications infrastructure.
Key Features
-
Doped Fiber Construction
Features internal doped fiber technology for consistent attenuation performance at standard telecom wavelengths. -
Dual-Wavelength Operation
Engineered to operate effectively at both 1310nm and 1550nm for versatile network deployment. -
Male-to-Female Interface
Allows for direct mating with existing SC adapters for quick and efficient installation. -
Fixed Attenuation Value
Provides a stable, factory-calibrated 6dB reduction in signal strength. -
Standard SC Geometry
Designed for compatibility with industry-standard SC connectivity hardware. -
Compact Buildout Design
Saves space in dense rack environments compared to inline patch cable solutions.
Applications
- Telecommunications network power balancing
- Data center optical link power management
- Preventing receiver saturation in high-power systems
- Testing and laboratory environments
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18731A06 |
| Connector Type | SC Male to Female |
| Fiber Type | Singlemode |
| Polish | UPC |
| Attenuation Value | 6dB |
| Operating Wavelength | 1310nm / 1550nm |
Frequently Asked Questions
What is the purpose of this attenuator?
This device is used to reduce the optical signal power in a fiber link to a level that is compatible with the receiver, preventing signal distortion or damage caused by excessive power.
Is this compatible with 1550nm networks?
Yes, this attenuator is designed for use at both 1310nm and 1550nm wavelengths.
What type of connection does this have?
It features an SC Male interface on one end and an SC Female interface on the other, allowing it to connect directly into an existing SC adapter.
Can I use this for multimode fiber?
No, this model is specified for use in singlemode fiber optic systems.
What polish style is this?
This is a UPC (Ultra Physical Contact) connector.
