Overview

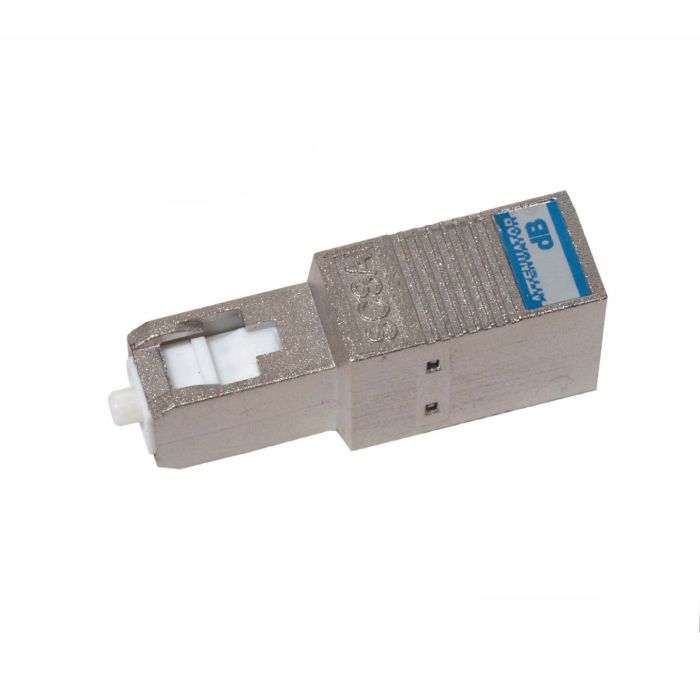

The SC Attenuator (Male-to-Female) is a precision fiber optic component designed to reduce signal power in singlemode networks. By utilizing doped fiber, this attenuator effectively lowers optical signal levels to prevent receiver saturation in high-power environments or during testing procedures.
This buildout-style attenuator features a male SC connector on one end and a female SC adapter on the other, allowing it to be easily installed inline between a patch cord and a port. It is optimized for operation across the standard 1310nm and 1550nm telecommunication wavelengths, ensuring stable performance in demanding network infrastructures.
Key Features
-
Doped Fiber Technology
Uses specialized doped glass to provide precise optical power reduction for reliable signal management. -
Dual Wavelength Compatibility
Engineered for consistent performance at both 1310nm and 1550nm for versatile network integration. -
Male-to-Female Configuration
Allows for direct, inline connection to existing SC ports or equipment interfaces. -
Standard SC Interface
Compatible with industry-standard SC connectivity, facilitating simple deployment in existing fiber panels. -
UPC Polish
Features Ultra Physical Contact polish to minimize back-reflection within the signal path. -
Fixed Attenuation Level
Provides a stable and consistent 9dB attenuation value for predictable signal control.
Applications
- Optical network power balancing
- Preventing receiver saturation in active equipment
- Fiber optic testing and system commissioning
- Data center link attenuation
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18731A09 |
| Connector Type | SC Male to SC Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm, 1550nm |
| Attenuation Value | 9dB |
| Polish | UPC |
Frequently Asked Questions
What is the primary function of this attenuator?
This device is used to reduce the intensity of an optical signal in a fiber optic link to ensure power levels remain within the operational range of transceivers.
Can this be used on multimode fiber?
No, this model is designed specifically for singlemode fiber applications.
Is the attenuation level adjustable?
No, this is a fixed attenuator with a 9dB rating.
Does it support both 1310nm and 1550nm?
Yes, it is suitable for use at both standard telecommunication wavelengths.
How does it connect to the network?
It features a male-to-female design, meaning it acts as a buildout component that attaches directly to an existing SC port or cable connector.
