Overview

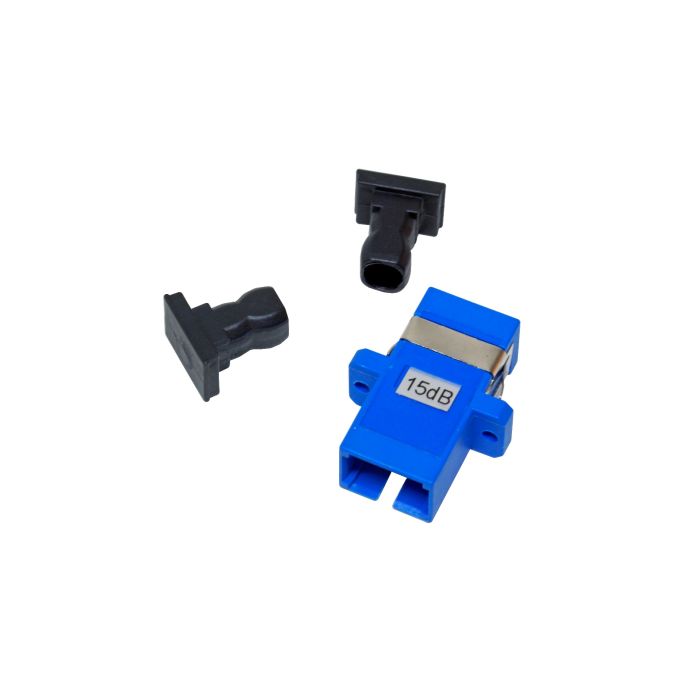

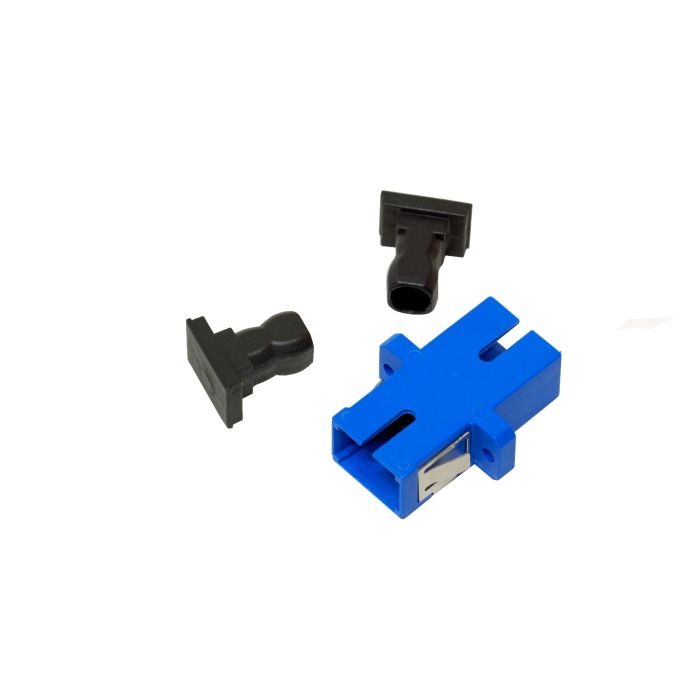

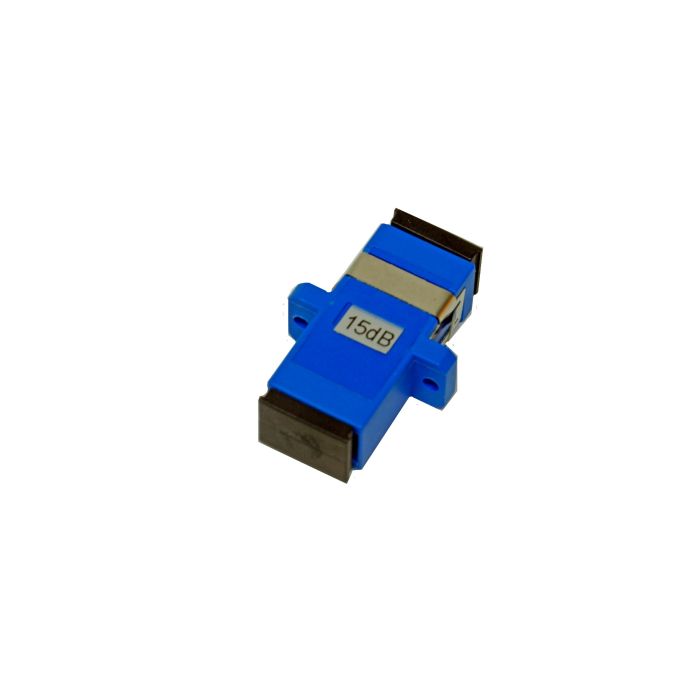

The SC Female-to-Female Bulkhead Attenuator is a precision-engineered fiber optic component designed for use in singlemode network applications. By providing a fixed signal reduction of 15dB, it ensures that sensitive downstream equipment receives appropriate optical power levels, protecting receivers from saturation and preventing data errors.
This bulkhead-style attenuator features a robust housing suitable for mounting in standard patch panels or fiber enclosures. It supports operation at both 1310nm and 1550nm wavelengths, making it a versatile choice for telecommunications, enterprise networks, and data center environments where signal management and network stability are critical.
Key Features
-
Fixed Attenuation
Provides a constant 15dB signal reduction for consistent network performance. -
Standard SC Interface
Utilizes industry-standard SC female-to-female connectivity for easy integration into existing infrastructure. -
Dual Wavelength Compatibility
Optimized for operation at both 1310nm and 1550nm windows. -
Bulkhead Design
Standard form factor allows for secure installation in fiber patch panels and wall-mount enclosures. -
Singlemode Optimized
Engineered for high-precision performance in singlemode fiber optic systems. -
Compact Form Factor
Space-saving design allows for high-density mounting configurations.
Applications
- Telecommunications network power level adjustment
- Data center equipment protection
- Fiber optic testing and laboratory setups
- Fiber to the Home (FTTH) distribution hubs
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC Female to SC Female |
| Attenuation Value | 15dB |
| Fiber Mode | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Mounting Type | Bulkhead |
Frequently Asked Questions
What is the purpose of this attenuator?
This device reduces optical signal strength by 15dB to prevent signal saturation in receivers.
Is this for singlemode or multimode fiber?
This unit is specifically designed for singlemode applications.
Can this be mounted in a standard patch panel?
Yes, the bulkhead design is intended for integration into standard fiber optic patch panels and enclosures.
What wavelengths does it support?
It is designed for use at common singlemode wavelengths of 1310nm and 1550nm.
What connectors does it use?
It features SC female-to-female connectivity.
