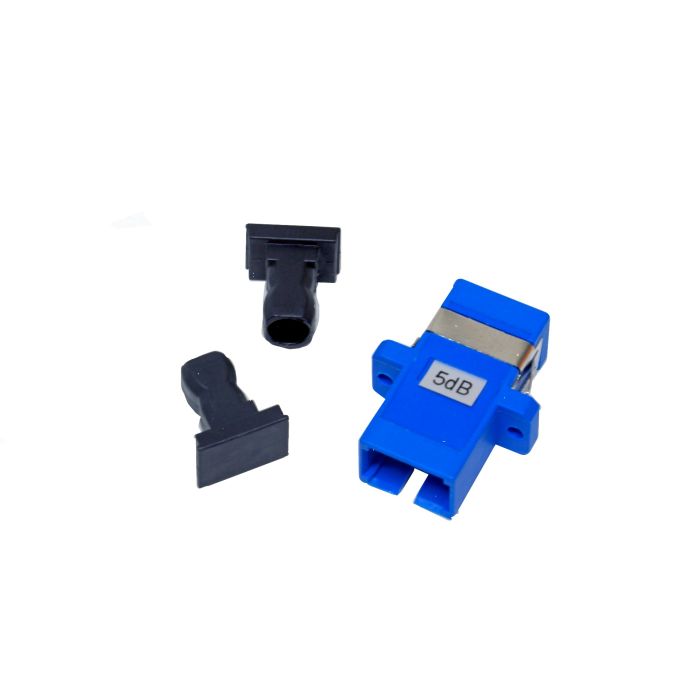

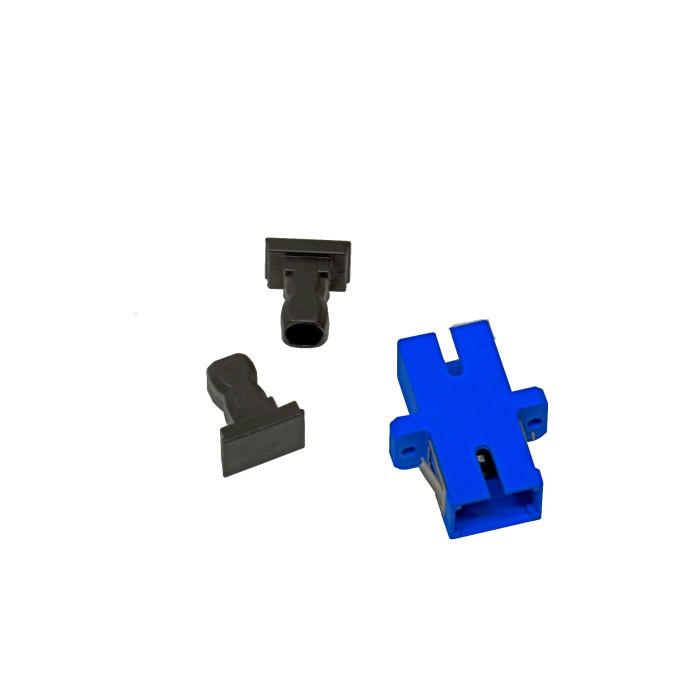

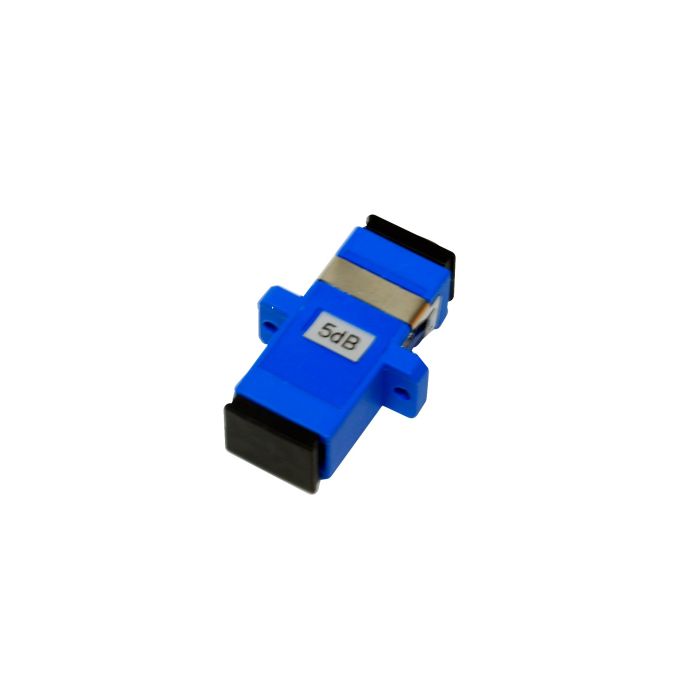

SC Female to Female Bulkhead Attenuator Singlemode 1310/1550nm 5dB

Overview

The SC Female-to-Female Bulkhead Attenuator is designed for use in singlemode fiber optic networks operating at 1310nm and 1550nm wavelengths. This passive device provides a precise 5dB reduction in signal power, which is essential for managing optical power levels in systems where the transmitter output is too strong for the receiver, preventing signal saturation and potential equipment damage.

This bulkhead-style attenuator features a female-to-female interface, allowing it to be easily integrated into existing patch panels or wall-mount enclosures. Constructed for standard SC connectivity, it ensures a secure, repeatable connection in data center environments, telecommunications infrastructure, and enterprise fiber networks.

Key Features

• Singlemode Compatibility
  Optimized for 9/125µm singlemode fiber, ensuring low-loss signal propagation.
• 5dB Attenuation
  Provides a fixed 5dB reduction to stabilize signal levels and maintain system performance.
• Dual Wavelength Operation
  Supports both 1310nm and 1550nm windows, making it versatile for standard network deployments.
• Bulkhead Mounting
  Designed for installation into standard bulkhead panels for organized, rack-based signal management.
• Female-to-Female Interface
  Allows for quick mating of two existing SC-terminated patch cords.
• Standard SC Design
  Ensures compatibility with industry-standard SC adapter interfaces.

Applications

• Telecommunications infrastructure
• Data center fiber management
• Enterprise network power balancing
• FTTH (Fiber to the Home) distribution hubs

Technical Specifications

Frequently Asked Questions

What is the purpose of an optical attenuator?
An attenuator is used to reduce the power of an optical signal in a fiber link to prevent receiver saturation when the input power is too high.

Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber networks.

Can this be mounted in a standard patch panel?
Yes, the bulkhead design is intended for panel or enclosure mounting.

Does this require power to operate?
No, this is a passive optical component and does not require electrical power.

What does the female-to-female designation mean?
It means the device acts as a coupling component with a receptacle on both sides to accept two standard male SC connectors.
