Overview

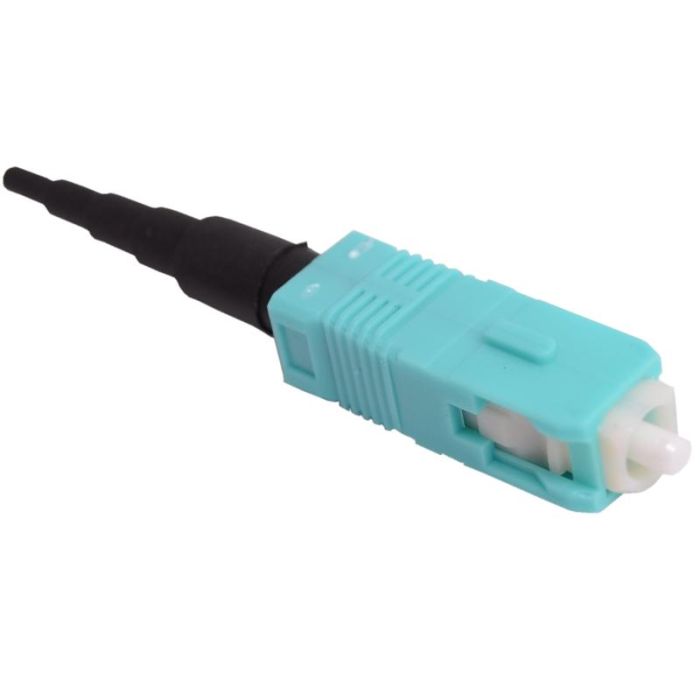

The SC Multimode 50µm OM4 Bobtail Pre-Polished Connector is a field-installable optical connector engineered for rapid fiber termination. Designed for seamless compatibility with 50/125µm Infinicor 600 or equivalent multimode fibers, this connector is suitable for both 900µm buffered fiber and 250µm coated bare fiber.
This connector utilizes a simplified termination process that requires only stripping, cleaving, and the application of a one-step cyanoacrylate adhesive. This method significantly reduces field assembly times to less than two minutes, providing an efficient solution for data center and network infrastructure maintenance without the need for specialized termination tools.
Key Features
-
Field Termination
Designed for rapid installation to reduce network downtime during deployment or repairs. -
Broad Fiber Compatibility
Works with 50/125µm Infinicor 600 or equivalent fibers for versatile application. -
Simplified Assembly
Eliminates the need for specialized termination tools or complex polishing procedures. -
Fast Installation
Typical assembly times are under 2 minutes, increasing labor efficiency. -
Enhanced Pull Strength
Provides increased mechanical durability compared to standard connectors. -
Cost-Effective
Offers a lower total cost of ownership compared to traditional quick-term connectors.
Applications
- Fiber-to-the-Desk (FTTD)
- Data center infrastructure
- Local Area Network (LAN) backbone installations
- Emergency fiber restoration
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC |
| Fiber Type | Multimode (OM4) |
| Fiber Size | 50/125µm |
| Compatible Fiber Coating | 900µm buffered / 250µm coated bare fiber |
| Termination Method | Cyanoacrylate adhesive |
| Typical Assembly Time | < 2 minutes |
Frequently Asked Questions
What type of adhesive is required for this connector?
This connector requires a standard one-step cyanoacrylate adhesive for the termination process.
Are special tools required for installation?
No, this connector is designed for field termination without the need for specialized or expensive termination tool kits.
Can I use this with 250µm fiber?
Yes, the connector is designed to work with both 900µm buffered and 250µm coated bare fiber.
How long does it take to install?
Typical assembly times for this connector are under 2 minutes.
What is the fiber core size?
This connector is compatible with 50/125µm multimode fiber.
