Overview

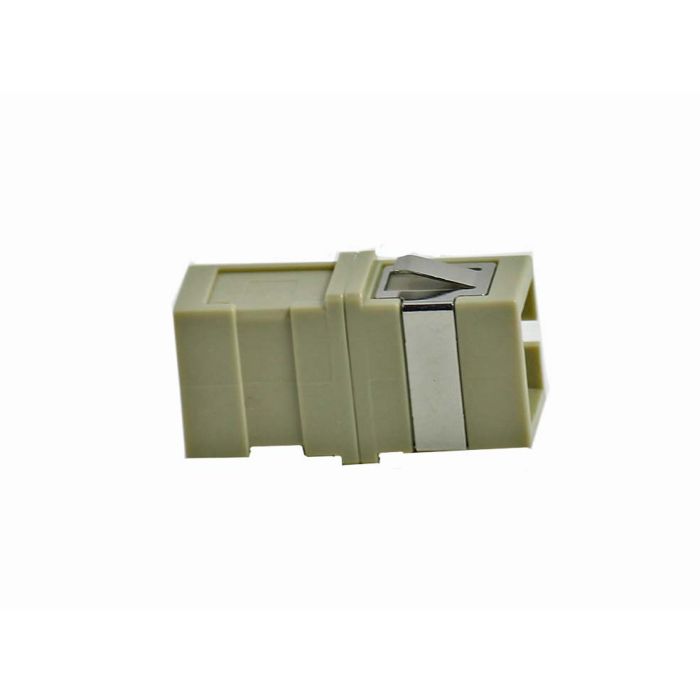

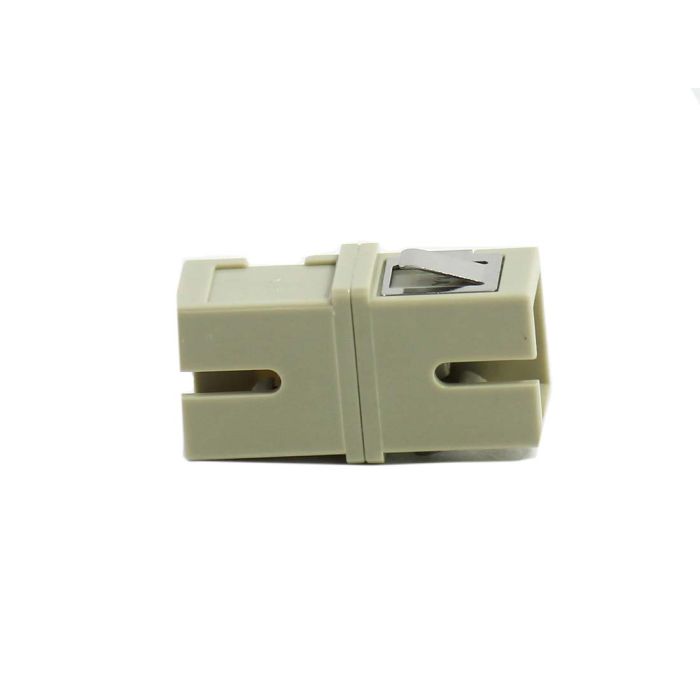

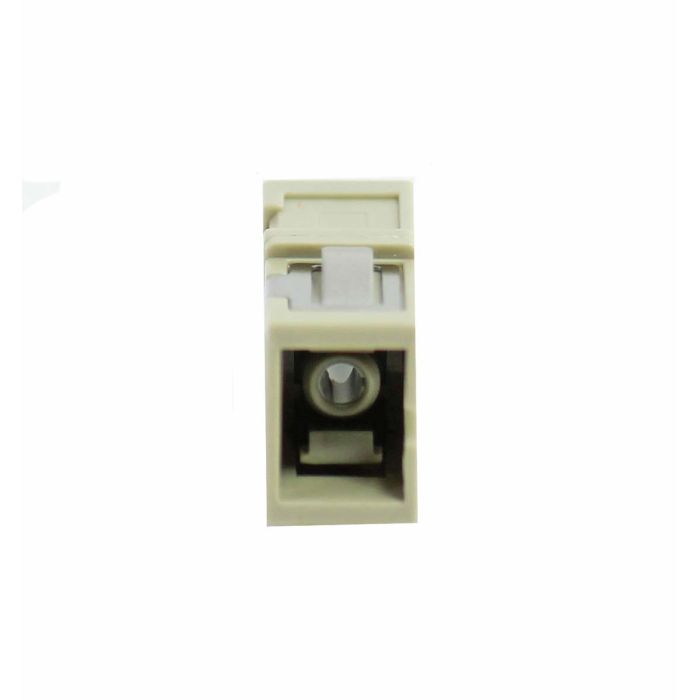

The SC Simplex Multimode Adapter serves as a female-to-female interface designed to interconnect two fiber optic patch cables. These adapters, also known as mating sleeves or couplers, provide a secure connection for precision alignment in fiber optic networks.
Constructed with a durable beige polymer housing, this adapter features a phosphorous bronze internal alignment sleeve, specifically optimized for multimode PC (Physical Contact) fiber connectors. Its no-flange design is ideal for applications where space-saving panel integration is required.
Key Features
-
Standard SC Interface
Ensures compatibility with industry-standard SC simplex fiber connectors. -
Phosphorous Bronze Sleeve
Provides precise alignment for multimode PC connectors, maintaining signal integrity. -
Beige Polymer Housing
Ruggedized construction for long-term durability in indoor environments. -
No Flange Design
Allows for compact mounting in high-density rack and wall enclosures. -
Female-to-Female Configuration
Allows for quick, reliable patching of existing fiber cable runs. -
Multimode Optimized
Designed specifically for MM fiber applications, ensuring accurate center-to-center fiber mating.
Applications
- CATV Networks
- Data Communications
- Telecommunications Infrastructure
- Local Area Networks (LAN)
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | SC Simplex |
| Fiber Mode | Multimode |
| Alignment Sleeve Material | Phosphorous Bronze |
| Housing Color | Beige |
| Mounting Style | No Flange |
Frequently Asked Questions
What is the purpose of the phosphorous bronze sleeve?
The bronze sleeve is used to align the ferrules of the two fiber connectors precisely, ensuring minimal insertion loss for multimode applications.
Can I use this adapter with singlemode fiber?
No, this specific adapter is designed for multimode applications. Singlemode applications typically require zirconia ceramic sleeves.
Does this adapter come with a mounting flange?
No, this model features a 'no flange' design for high-density applications.
Are dust caps included?
Adapters typically include dust caps to protect the internal alignment sleeve from contamination when not in use.
What is the connector interface?
It features an SC female-to-female interface for connecting two SC male patch cables.
