Overview

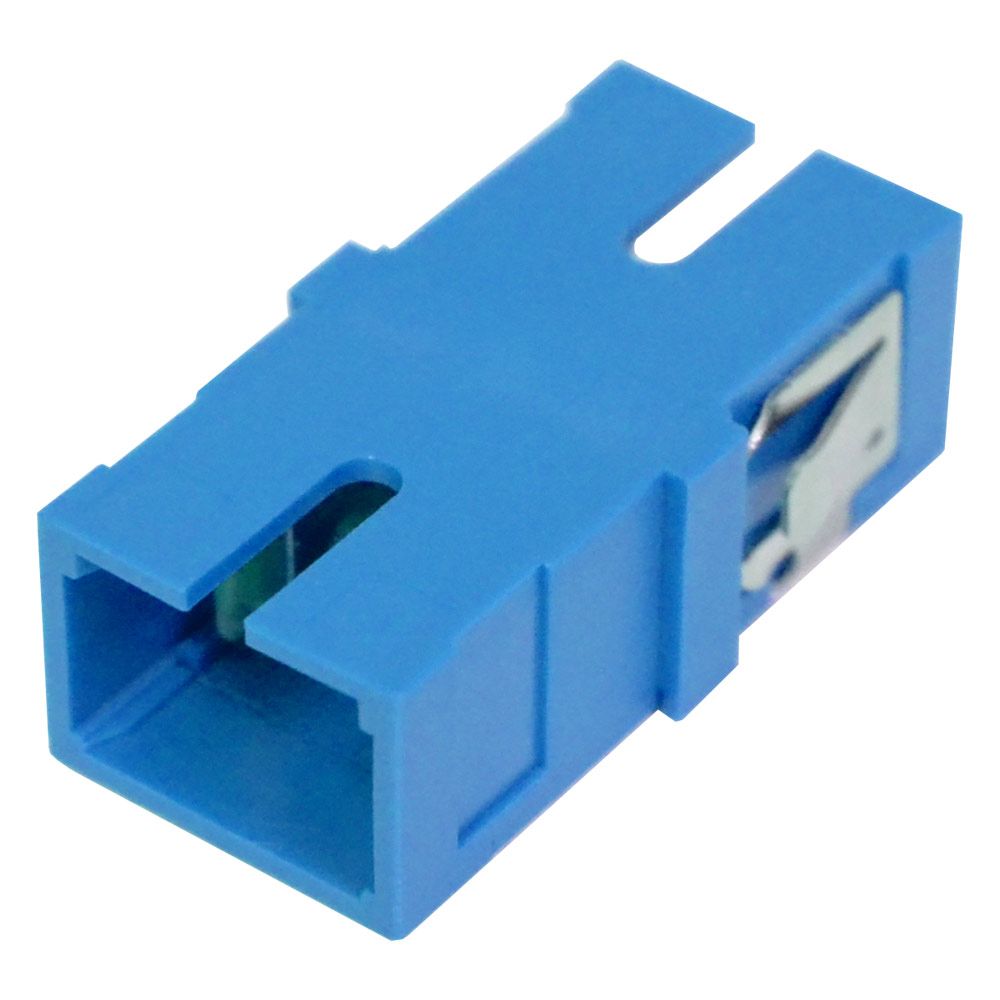

The SC/UPC Simplex Adapter is a precision-engineered component designed for high-performance singlemode fiber optic networking. It provides a stable and secure connection interface for SC patch cords, facilitating reliable signal transmission in data centers, telecommunications networks, and enterprise cabling systems.
Featuring a robust, one-piece body design, this adapter offers superior structural integrity and side-loading resistance compared to standard ultrasonically welded two-piece alternatives. The inclusion of a high-quality zirconia ceramic alignment sleeve ensures optimal ferrule alignment, which is critical for minimizing insertion loss and maintaining high return loss performance in singlemode applications.
Key Features
-
One-Piece Body Construction
Ensures structural rigidity and increased side-loading performance, preventing the casing separation common in two-piece adapters. -
Zirconia Ceramic Alignment Sleeve
Provides precise, consistent ferrule alignment for low-loss signal transmission. -
Singlemode Optimization
Designed specifically for singlemode fiber networks, meeting the demands of high-bandwidth infrastructure. -
SC/UPC Compatibility
Standard industry footprint for seamless integration into existing rack-mount panels, wall boxes, and equipment. -
No Flange Design
Reduces profile in dense panel environments and simplifies installation in high-density rack configurations. -
Blue Polymer Housing
Industry-standard color coding allows for quick visual identification of singlemode components. -
GR-326-CORE Compliant
Meets rigorous industry standards for performance and reliability in diverse environmental conditions.
Applications
- Data Centers
- Telecommunication Networks
- Enterprise Local Area Networks (LAN)
- FTTH / FTTX Installations
- Test and Measurement Equipment
Technical Specifications
| Specification | Value |
|---|---|
| Adapter Type | SC/UPC Simplex |
| Fiber Mode | Singlemode |
| Housing Material | Blue Polymer |
| Alignment Sleeve | Zirconia |
| Mounting Style | No Flange |
| Standards | Exceeds GR-326-CORE |
Frequently Asked Questions
What is the purpose of the zirconia sleeve?
The zirconia ceramic sleeve ensures precise alignment between the two fiber ferrules inside the adapter, which is essential to minimize signal loss and maximize transmission efficiency.
Why is the one-piece body design an advantage?
The one-piece construction increases the physical strength of the adapter and provides better resistance to side-loading forces compared to two-piece designs that are ultrasonically welded.
Is this adapter compatible with multimode fiber?
This specific adapter is designed and optimized for singlemode applications. Using it with multimode components may result in performance degradation due to differences in sleeve tolerance.
What does the No Flange design mean for installation?
No Flange adapters are designed for high-density mounting in panels or enclosures where the footprint must be kept minimal, as they do not require mounting screws for the flange.
Does this adapter support APC connectors?
This is an SC/UPC adapter. It is intended for use with UPC (flat/PC) style connectors and is not compatible with the angled physical contact (APC) interface.
