Overview

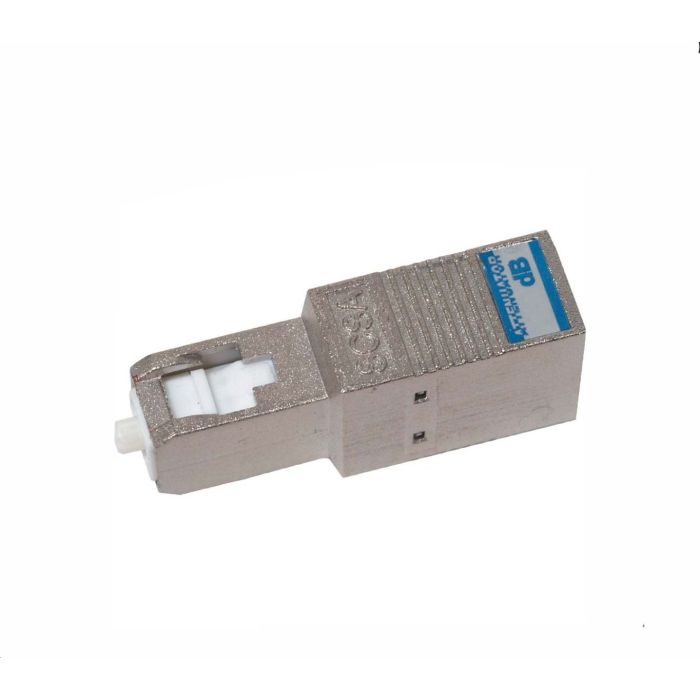

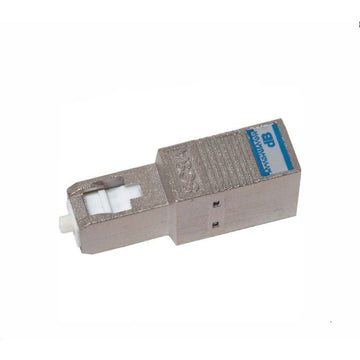

The SC/UPC Male-Female Attenuator is a precision optical component designed to reduce signal power in singlemode fiber optic networks. By accurately lowering the light intensity, it prevents receiver saturation and ensures optimal signal levels for sensitive equipment in 1310nm and 1550nm wavelength applications.
This plug-and-style attenuator features a convenient male-to-female design, allowing for easy integration into existing patch panels or direct connection to active equipment ports. Its compact construction provides a stable, repeatable attenuation value, making it an essential tool for balancing optical power budgets in telecommunications and data center environments.
Key Features
-
Singlemode Compatibility
Optimized for 1310nm and 1550nm wavelengths to ensure precise power adjustment in standard singlemode fiber systems. -
Fixed Attenuation Value
Provides a reliable 20dB reduction, ensuring consistent performance and preventing signal degradation from over-powering. -
Male-to-Female Interface
Enables seamless inline connectivity between existing fiber optic adapters and equipment, simplifying network installation. -
SC/UPC Connector Type
Features industry-standard SC physical contact connectors for secure and reliable signal transmission. -
Precise Power Management
Effectively manages signal strength to protect sensitive optical receivers from damage or saturation. -
Compact Design
Small form factor allows for dense installations in rack-mount enclosures and limited-space environments.
Applications
- Fiber optic telecommunications
- Data center link balancing
- CATV networks
- Optical testing and measurement
- FTTH network equipment protection
Technical Specifications
| Specification | Value |
|---|---|
| Part Number | F18731A20 |
| Connector Type | SC/UPC |
| Configuration | Male-Female |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 20dB |
| Fiber Mode | Singlemode |
Frequently Asked Questions
What is the purpose of this attenuator?
It is used to reduce the signal power level on a fiber optic line to prevent receiver saturation.
Is this compatible with multimode fiber?
No, this device is specifically designed for singlemode fiber applications.
Can I connect this directly to my equipment?
Yes, the male-female interface allows you to plug it directly into a device port or an existing adapter.
What wavelengths does this support?
It is optimized for operation at both 1310nm and 1550nm wavelengths.
What does the 20dB value mean?
This indicates that the component will reduce the optical signal intensity by 20 decibels.
