Overview

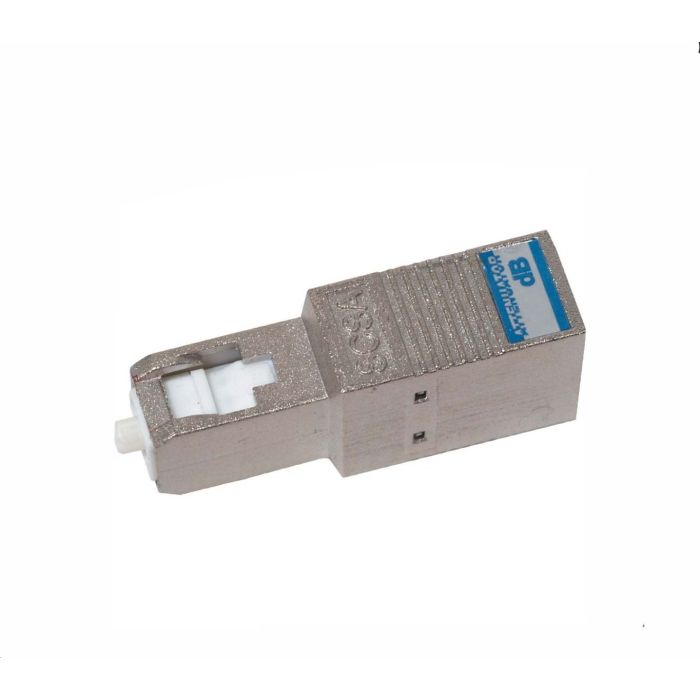

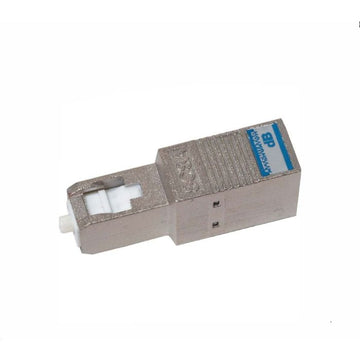

The SC/UPC Male-Female attenuator is designed to precisely reduce the power level of optical signals in singlemode fiber optic networks. By introducing a controlled amount of signal loss, this component protects sensitive receivers from saturation in high-power applications, ensuring consistent network performance and preventing signal distortion.
This build-out style attenuator features a compact male-to-female design, allowing for seamless integration directly onto existing patch panels or equipment ports. Optimized for operation at 1310nm and 1550nm wavelengths, it provides stable, repeatable attenuation for standard telecommunications and data center environments.
Key Features
-
18dB Attenuation Level
Provides precise reduction of optical signal strength to match receiver sensitivity requirements. -
Male-to-Female Configuration
Enables direct plug-and-play installation onto existing SC port interfaces without requiring additional patch cords. -
Dual Wavelength Optimization
Factory calibrated for optimal performance across both 1310nm and 1550nm operating windows. -
Singlemode Compatibility
Engineered for use with standard OS2 singlemode fiber systems. -
UPC Polish
Features Ultra Physical Contact polish to minimize back-reflection and ensure high signal integrity. -
Compact Form Factor
Space-saving design allows for high-density installation in patch panels and equipment cabinets.
Applications
- Telecommunications networks
- Data center fiber management
- Optical testing and system commissioning
- Preventing receiver saturation in long-haul links
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC/UPC Male-Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 18dB |
Frequently Asked Questions
What is the purpose of an optical attenuator?
An attenuator is used to reduce the power level of a fiber optic signal to prevent receiver damage or saturation when the signal is too strong.
Does this attenuator work with both 1310nm and 1550nm?
Yes, this unit is designed to operate effectively at both standard telecommunications wavelengths.
Is this a male-to-male or male-to-female device?
This is a male-to-female build-out attenuator, designed to connect directly to an existing SC female port.
Can I use this with multimode fiber?
No, this attenuator is specified for use with singlemode fiber systems only.
What does the UPC designation mean?
UPC stands for Ultra Physical Contact; it refers to the polish type of the fiber end-face, which provides a better surface finish and lower return loss than a standard flat polish.
