Overview

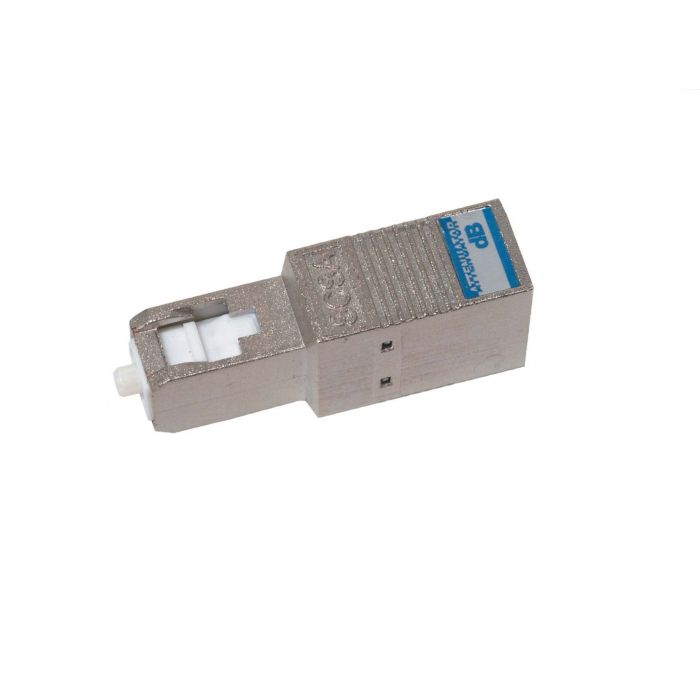

The SC UPC Male to Female Attenuator is a precision optical component designed to reduce signal intensity in singlemode fiber optic networks. This build-out style attenuator is engineered for dual-wavelength compatibility, supporting both 1310nm and 1550nm operating windows to ensure flexibility across common telecommunications applications.
Constructed with high-quality doped fiber, this device provides stable and consistent attenuation performance. Its male-to-female (M2F) configuration allows for direct integration into existing fiber patches or adapter panels, making it an ideal solution for balancing power levels in transmission systems to prevent receiver saturation.
Key Features
-
Dual-Wavelength Operation
Optimized for use at both 1310nm and 1550nm wavelengths, providing versatility in singlemode network environments. -
Build-Out Design
The male-to-female connector interface allows for quick, tool-less installation directly onto existing adapters or equipment ports. -
Stable Doped Fiber Technology
Utilizes integrated doped fiber to ensure accurate and repeatable attenuation levels. -
Standard SC Interface
Features industry-standard SC connectivity for seamless integration with existing network hardware. -
UPC Polish
Equipped with an Ultra Physical Contact (UPC) finish to ensure low back-reflection and high signal integrity. -
Fixed Attenuation
Provides a reliable, set 3dB signal reduction to protect sensitive optical receivers from power overload.
Applications
- Telecommunications network power leveling
- CATV fiber link signal management
- Data center optical equipment testing
- Preventing receiver saturation in high-power fiber links
Technical Specifications
| Specification | Value |
|---|---|
| Connector Type | SC Male to Female |
| Fiber Type | Singlemode |
| Operating Wavelength | 1310nm / 1550nm |
| Attenuation Value | 3dB |
| Polish | UPC |
Frequently Asked Questions
What does M2F mean?
M2F stands for Male to Female, indicating the connector interface has a plug (male) on one end and a socket (female) on the other for easy mating with existing adapters.
Is this compatible with multimode fiber?
No, this is specifically designed for singlemode fiber optic applications.
Can I use this for both 1310nm and 1550nm?
Yes, this attenuator is specifically engineered to operate across both common singlemode wavelengths.
What is the polish type?
This unit features a UPC (Ultra Physical Contact) polish.
What is the attenuation level of this unit?
This specific model provides a fixed 3dB attenuation.
