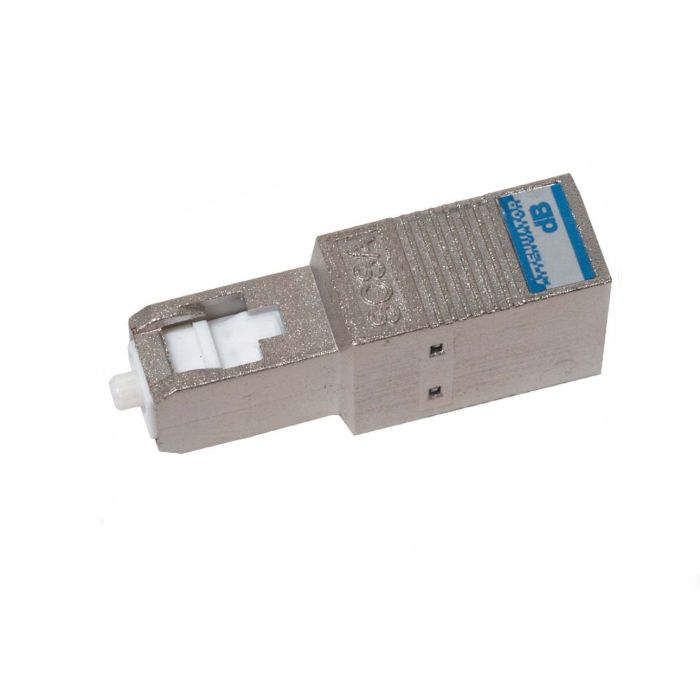

SC UPC Male to Female Singlemode 1310/1550nm Attenuator 7dB

Overview

The SC UPC Male to Female Attenuator is a precision fiber optic component designed to reduce the optical power level in singlemode systems. By utilizing doped fiber technology, this build-out style attenuator provides a stable and reliable reduction in signal intensity, essential for preventing receiver saturation in high-power network environments.

This device is engineered for seamless integration into existing fiber infrastructures, featuring a compact male-to-female design that connects directly between a fiber cable and a port. It is optimized for dual-wavelength performance, making it suitable for both 1310nm and 1550nm telecommunications applications.

Key Features

• Doped Fiber Technology
  Utilizes specialized doped fiber to achieve precise attenuation, ensuring consistent signal power management.
• Dual Wavelength Optimization
  Engineered for effective operation at both 1310nm and 1550nm windows for versatile deployment.
• Male-to-Female Configuration
  Allows for direct "build-out" connection to equipment ports, simplifying the installation process without additional patch cords.
• Standard SC Connector Interface
  Features industry-standard SC physical contact connectors for broad compatibility with existing patch panels and active equipment.
• Fixed Attenuation Value
  Provides a factory-calibrated 7dB reduction, eliminating the need for field adjustments or calibration.
• Compact Physical Design
  The small footprint ensures minimal space requirements in high-density rack-mount environments.

Applications

• Telecommunications networks
• Fiber optic test and measurement
• CATV systems
• Power level balancing in optical links
• Preventing receiver saturation

Technical Specifications

Frequently Asked Questions

What is the primary function of this attenuator?
This device is used to reduce the intensity of an optical signal by a fixed 7dB to prevent receiver saturation in singlemode fiber systems.

Is this attenuator compatible with both 1310nm and 1550nm?
Yes, it is designed to perform accurately at both standard telecommunications wavelengths.

Does this require an additional cable to install?
No, it is a build-out (male-to-female) style that plugs directly into a female bulkhead port on one side while accepting a male patch cord on the other.

What does the "UPC" designation mean?
UPC stands for Ultra Physical Contact, which describes the specific polish of the fiber connector end-face to reduce back-reflection.

Can I use this for multimode fiber applications?
No, this product is specifically specified for singlemode fiber systems.

Downloads

• Product PDF
