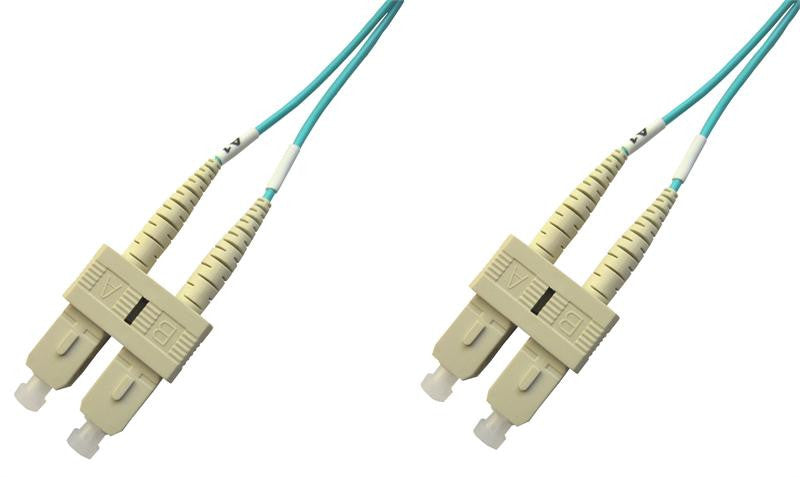

SCP-SCP-MD5A-1M - SC/PC to SC/PC multimode OM3 aqua 50/125 duplex fiber optic patch cord cable
Product description
Multimode 50/125 um core OM3 aqua color jacket, 1m length, optimized for 10G speed, duplex SC/PC to SC/PC fiber optic patchcord, good for 850nm and 1310nm multimode connections.
Technical specifications:
- typical insertion loss: 0.35 dB
- return loss > 35 dB
- fiber jacket 3.0mm, aqua color, zipcord
- operating temperature: -40 to +75 Celsius degrees
- each cable assembly is manually tested and verified
- each cable assembly is individually sealed and labeled
- label mentions measured loss on patch cord
