Overview

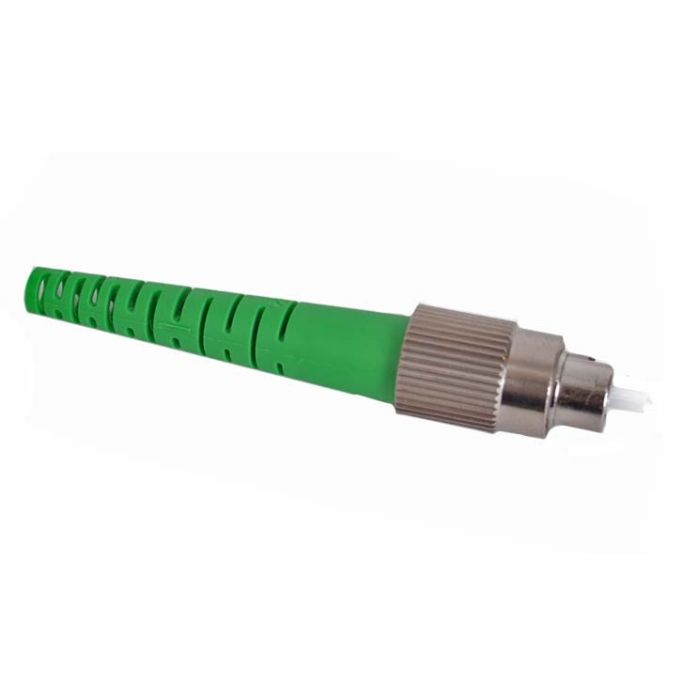

The Seikoh Giken FC Connector is a high-precision fiber optic connector designed for singlemode APC (Angled Physical Contact) applications. This connector is engineered to provide low insertion loss and high return loss performance, making it a critical component for high-bandwidth telecommunications, data centers, and network infrastructure.
Constructed with a durable zirconia ferrule, this connector is designed for use with 3mm cable jackets. It features an angled polish to minimize back-reflections, which is essential for sensitive optical systems. The green boot provides easy visual identification of the APC polish type in complex patching environments.
Key Features
-
Zirconia Ferrule
Provides precise fiber alignment and high mechanical durability for consistent signal transmission. -
APC Polish
Features an 8-degree angled face to reduce back-reflection, ideal for high-speed network links. -
Green Color Coding
Green boot identifies the connector as APC, reducing errors during field installation and maintenance. -
3mm Cable Compatibility
Optimized for standard 3mm outer diameter fiber optic cabling. -
Precision Engineering
Designed by Seikoh Giken to meet strict optical performance standards.
Applications
- Telecommunications networks
- Data center interconnects
- CATV systems
- Fiber-to-the-x (FTTX) deployments
- High-speed enterprise networks
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Seikoh Giken |
| Connector Type | FC |
| Polish | APC |
| Mode | Singlemode |
| Ferrule Material | Zirconia |
| Ferrule Size | 126µm |
| Cable Diameter | 3mm |
| Boot Color | Green |
| Part Number | SNP8871261B3K2G |
Frequently Asked Questions
What is the purpose of the APC polish on this connector?
The APC (Angled Physical Contact) polish uses an 8-degree angle to ensure that reflected light is directed into the cladding rather than back towards the source, which is critical for high-performance singlemode systems.
Is this connector suitable for multimode fiber?
No, this is specifically designed for singlemode fiber applications.
What ferrule size does this connector use?
This connector utilizes a 126µm zirconia ferrule.
Does the green boot indicate a specific connector type?
Yes, the green boot is an industry-standard indicator for APC singlemode connectors.
Can I use this with 900µm buffered fiber?
No, this version is specifically configured for 3mm cable.
