Overview

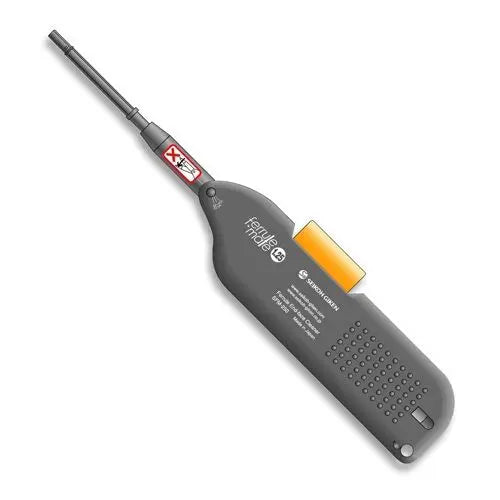

The Seikoh Giken SFM-125 Ferrule Mate is a professional-grade cleaning tool engineered to maintain 1.25mm fiber optic ferrules. Designed for efficiency, this cleaner is suitable for use on both patch cable connectors and those installed within bulkhead adapters.
The unit features a specialized dust cap that protects the cleaning tip when not in use. Its versatile tip can be adjusted up to 45 degrees, facilitating the cleaning of angled connectors and those in confined adapter ports. The system utilizes a static-free polyester cloth to ensure thorough debris removal without introducing electrostatic discharge risks to sensitive fiber components.
Key Features
-
1.25mm Ferrule Compatibility
Optimized for precision cleaning of LC and MU connector end-faces. -
Adjustable Cleaning Tip
The tip articulates up to 45 degrees, allowing for effective cleaning of angled (APC) ferrules in dense patch panels. -
Dual-Mode Operation
Includes a flip-open cap for direct connector cleaning and a removable cap for easy insertion into bulkhead adapters. -
Static-Free Cloth
Uses specialized polyester fabric that prevents debris attraction caused by static electricity. -
High Capacity
Provides up to 350 cleaning cycles per unit, supporting long-term field use. -
Connector Versatility
Compatible with both PC and APC polished end-faces.
Applications
- Data centers and high-density fiber installations
- Field installation and maintenance of LC/MU fiber networks
- Maintenance of telecommunications patch panels
- Fiber optic equipment testing and inspection
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Seikoh Giken |
| Model | SFM-125 |
| Ferrule Size | 1.25mm |
| Cleaning Capacity | Up to 350 swipes |
| Fiber Compatibility | PC and APC |
| Cleaning Material | Static-free polyester cloth |
Frequently Asked Questions
Is this cleaner suitable for APC connectors?
Yes, the SFM-125 is compatible with both PC and APC type ferrules.
Can I use this on 2.5mm connectors?
No, this model is designed specifically for 1.25mm ferrules. The SFM-250 model is required for 2.5mm applications.
How many cleans does one unit provide?
Each unit provides up to 350 cleaning cycles.
Does it work inside adapters?
Yes, the design allows for cleaning connectors directly through bulkhead adapters.
Why is the tip adjustable?
The 45-degree adjustable tip makes it significantly easier to clean angled connectors (APC) without needing to rotate the entire tool.
