Overview

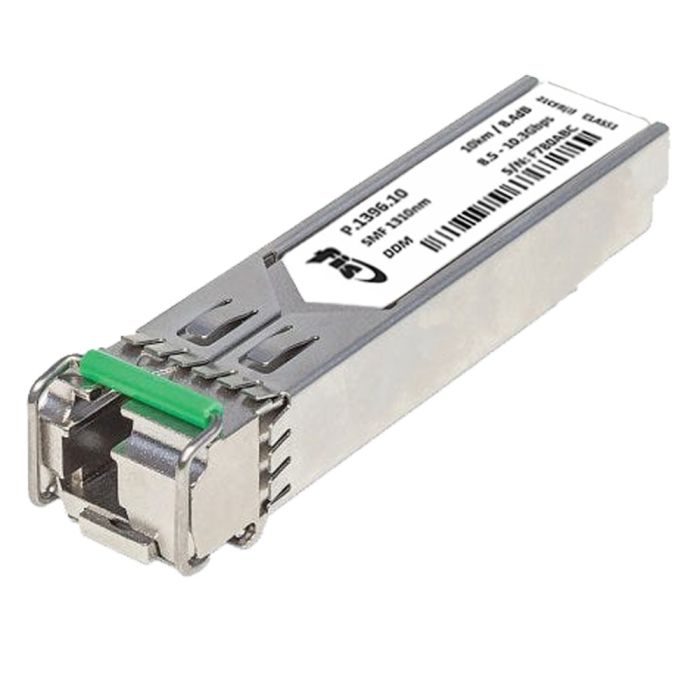

The SFP 1 Gbps SM LC 1310/1550 (TX/RX) transceiver is a high-performance optical module designed for singlemode fiber networks. It is specifically engineered to maximize fiber infrastructure efficiency by utilizing Wavelength Division Multiplexing (WDM) technology.
By using distinct light sources for transmit and receive functions over a single strand of fiber, this module provides full-duplex communication while significantly reducing the amount of cabling required. It is built to industry-standard MSA (Multi-Source Agreement) specifications to ensure broad compatibility with diverse networking hardware in data centers and enterprise environments.
Key Features
-
WDM Technology
Enables full-duplex transmission over a single strand of fiber, effectively doubling the capacity of existing fiber runs. -
20 km Operating Range
Supports long-distance connectivity, making it suitable for campus-wide links or connections between building distribution frames. -
MSA Standard Compatible
Ensures compliance with standard SFP port interfaces for seamless integration into various switches and routers. -
Singlemode Operation
Optimized for long-reach, high-bandwidth singlemode fiber deployments. -
Standard LC Interface
Utilizes the industry-standard Small Form Factor LC connector for reliable and compact physical connections. -
1 Gbps Data Rate
Provides reliable 1 Gigabit Ethernet throughput for high-speed network backbones.
Applications
- Enterprise LAN/WAN backbones
- Data center server-to-switch connectivity
- Fiber-constrained network expansion
- Long-reach industrial networking
Technical Specifications
| Specification | Value |
|---|---|
| Data Rate | 1 Gbps |
| Technology | WDM (Wavelength Division Multiplexing) |
| Fiber Type | Singlemode |
| Range | 20 km |
| Connector Type | LC |
| Wavelength (TX) | 1310 nm |
| Wavelength (RX) | 1550 nm |
| Compatibility | MSA Standard |
Frequently Asked Questions
What is the primary advantage of WDM technology?
WDM allows for full-duplex communication over a single strand of fiber, which helps minimize fiber usage when cabling capacity is limited.
Is this module compatible with standard SFP ports?
Yes, this module is built to MSA (Multi-Source Agreement) standards, ensuring it is compatible with most standard SFP transceiver slots.
What is the maximum distance for this module?
This SFP is rated for a distance of up to 20 km over singlemode fiber.
Does this module require a specific fiber type?
Yes, this module is designed for use with singlemode fiber optic cable.
What connectors are required for this transceiver?
This module utilizes LC connectors for the fiber interface.
