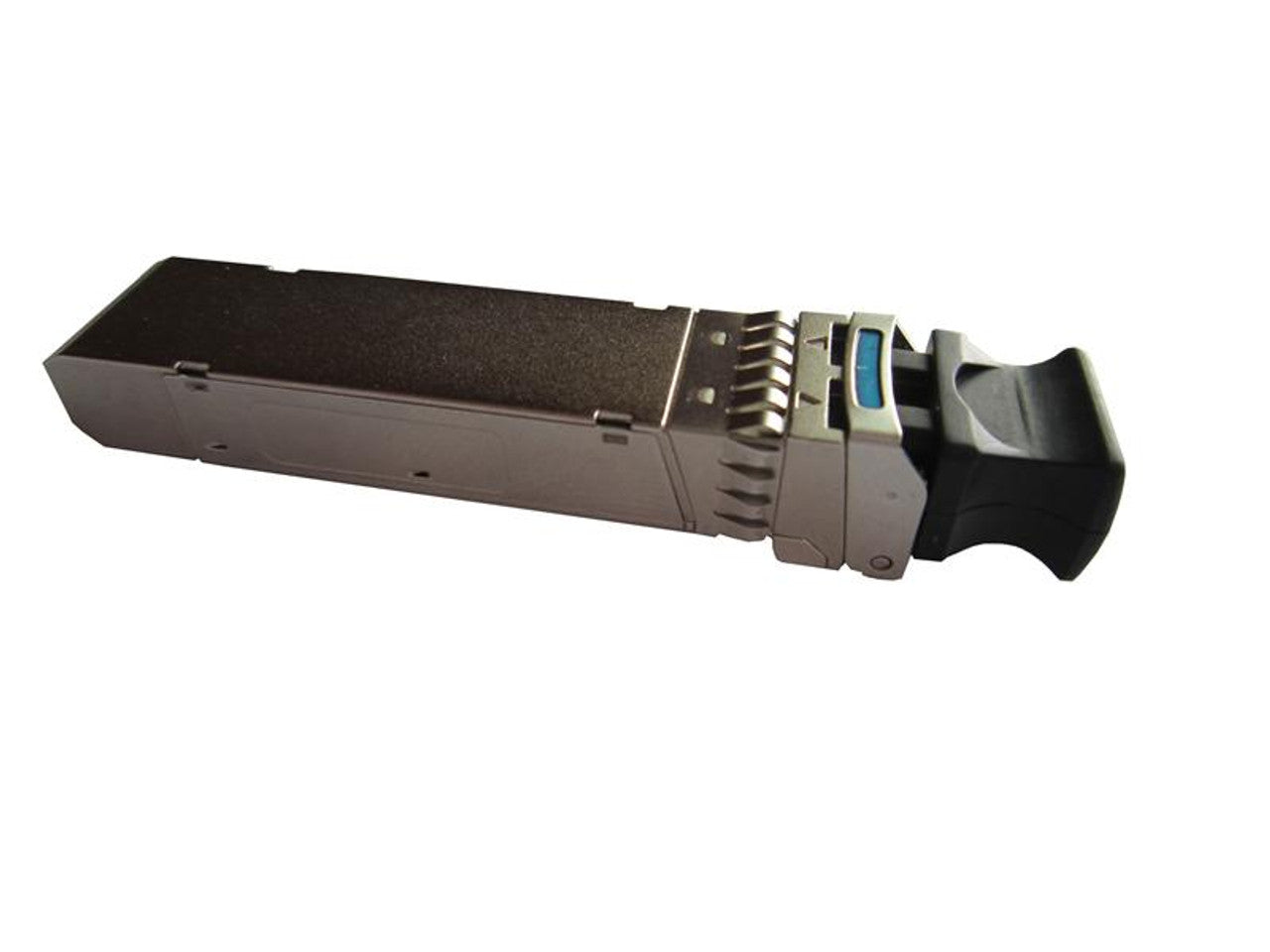

SFP+ 10G CWDM optical transceiver, 80km
Product description
The SFP-1080-Cxx is a CWDM 10G SFP+ optical module. It is available for all 8 "main" CWDM channels 1471nm to 1611nm wavelengths.
Transceiver supports all 10G rated speeds for Ethernet, SONET, SDH or Fibre Channel networks.
SFP-1080-Cxx is the general Part Number, the xx representing a combination of two digits that define the wavelength used. For instance, the SFP-1080-C47 is a CWDM SFP+ transceiver running 1471nm wavelength.
There are also available CWDM 10G transceivers for a few CWDM channels in the 1270 to 1330nm range. These modules are not common and only available on special order. Please contact us and inquire on the availability of such models.
Our transceivers have been tested and found compatible on various 10G Ethernet switches from Cisco, Juniper, Force10, Edge-Core and other manufacturers.
SFP-1080-Cxx 10G SFP+ CWDM 80Km transceiver specifications
SFP-1080-Cxx 10G SFP+ CWDM 80Km transceiver specifications
| Form factor | SFP |
| Speed | 9.95 to 10.3Gb/s |
| Optical connector | dual LC |
| Operating distance | 80Km |
| Power | single 3.3V |
| Compliance | MSA SFF-8431, RoHS |
| Operating mode | CWDM ITU channels |
| Fiber type | Single-mode 9/125um |
| Wavelength | CWDM ITU grid (1471~1611nm) |
| Digital Diagnostic | Yes (SFF-8472 compliant) |
Additional information on SFP-1080-Cxx CWDM transceiver:
PDF Datasheet
