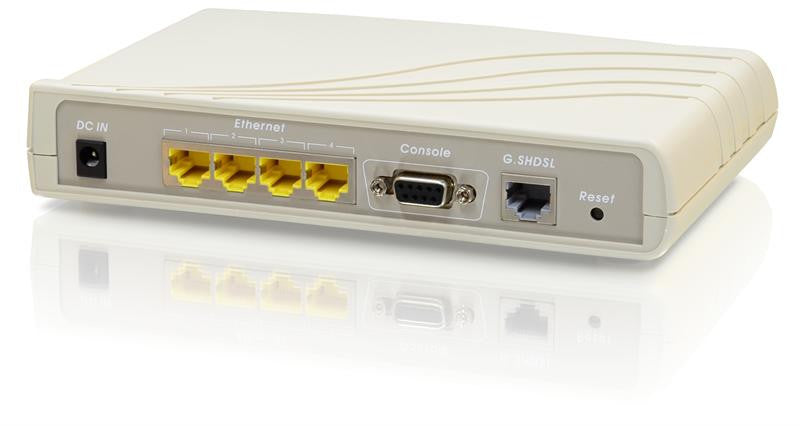

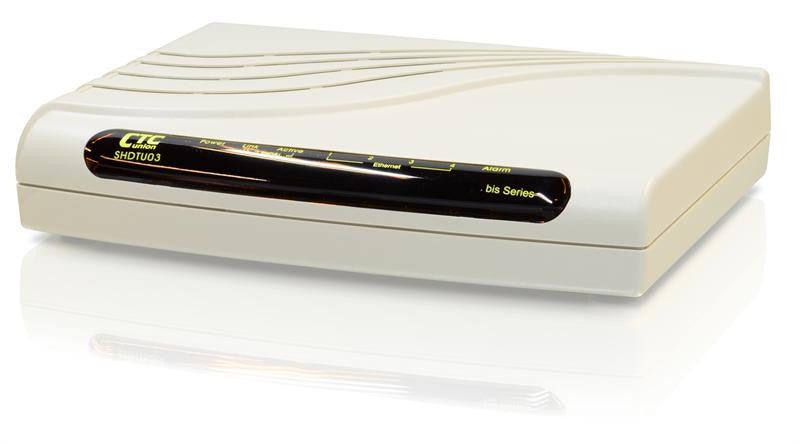

SHDTU03bF-ET10RS LAN Extender 2 wire 5.7Mbps G.SHDSL.bis ATM modem router, AC powered
Product description
The SHDTU03bF-ET10RS ATM modem series is 2-wire Ethernet Bridge/Router that complies with G.991.2 standards and has a built-in four port 10Base-T /100Base-TX auto-negotiation and auto-MDIX switch. Modem provides business-class, multi-rate 2-wire up to 5.7Mbps (SHDSL.bis) and 2.3Mbps (SHDSL) payload rates over existing single pair of copper wires. SHDTU03bF-ET10RS modem is designed not only to optimize the service bit rate from central office to customer premises but also integrates high-end Bridging/ Routing EFM bonding capabilities with advanced functions such as virtual server mapping and VPN passthrough. Unit allows customers to leverage the latest in broadband technologies to meet their growing data communication needs. In bridge mode, the four switching ports may be configured for IEEE802.1Q VLAN or port based VLAN applications. The modem can be configured in either central or client mode providing a point-to-point solution.
Technical specifications
The SHDTU03bF-ET10RS ATM modem series is 2-wire Ethernet Bridge/Router that complies with G.991.2 standards and has a built-in four port 10Base-T /100Base-TX auto-negotiation and auto-MDIX switch. Modem provides business-class, multi-rate 2-wire up to 5.7Mbps (SHDSL.bis) and 2.3Mbps (SHDSL) payload rates over existing single pair of copper wires. SHDTU03bF-ET10RS modem is designed not only to optimize the service bit rate from central office to customer premises but also integrates high-end Bridging/ Routing EFM bonding capabilities with advanced functions such as virtual server mapping and VPN passthrough. Unit allows customers to leverage the latest in broadband technologies to meet their growing data communication needs. In bridge mode, the four switching ports may be configured for IEEE802.1Q VLAN or port based VLAN applications. The modem can be configured in either central or client mode providing a point-to-point solution.
Technical specifications
- Supports Ethernet over ATM over SHDSL
- Full ATM protocol stack implementation over G.SHDSL
- Adaptive rate installation maximizes data rate based on loop conditions
- Standard ITU G.991.2 (2004) supports improved reach, speed and interoperability compared to conventional G.SHDSL
- Supports point-to-point configurations
- Local management interface via console port
- Intuitive Web based management
- SNMP management with SNMPv1/v2 and MIB II
- Build-in advanced SPI firewall (Firewall routers)
- Efficient IP routing and transparent learning bridge to support broadband Internet services
- VPN pass-through for safeguarded connections
- DMZ host/Multi-DMZ/Multi-NAT; multiple PCs on a LAN with only one IP address
- PPPoA and PPPoE support user authentication with PAP/CHAP/MSCHAP
- Raw and time stamped statistics
- Supports firmware upgrade via web interface
Additional information on SHDTU03bF-ET10RS :
PDF Datasheet; PDF User Manual.
