Shunts

Overview

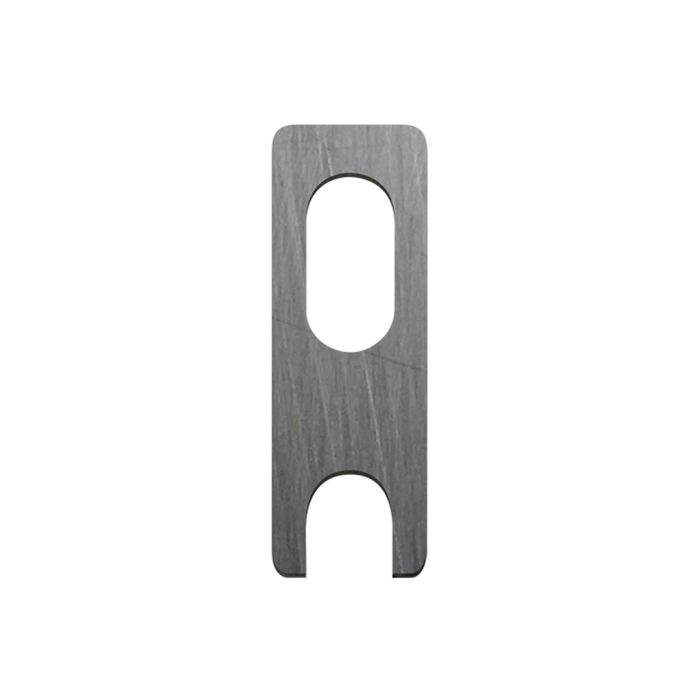

The TS-SHUNT is designed to provide reliable electrical continuity between adjacent terminals. Engineered for durability, this shunt is constructed from high-grade stainless steel to ensure excellent resistance against rust and corrosion, making it suitable for both indoor use and exposed outdoor terminal post installations.

The component features a unique hole and slot design that facilitates quick installation and removal for testing procedures. It can also be left permanently in place to serve as a consistent continuity bridge, offering versatile performance for network technicians and field operators.

Key Features

• Stainless Steel Construction
  Ensures long-term resistance to rust and corrosion in harsh outdoor environments.
• Continuity Bridge Functionality
  Creates secure electrical contact between two adjacent terminal posts.
• Hole and Slot Design
  Allows for rapid installation, removal, and adjustments during field testing.
• Field Versatility
  Can be used as a temporary test connection or a permanent continuity link.
• Robust Material
  Maintains structural integrity even when exposed to environmental elements.

Applications

• Electrical continuity bridging
• Terminal post testing
• Field diagnostics
• Outdoor cabinet maintenance

Technical Specifications

Frequently Asked Questions

What is the primary material used for this shunt?
The shunt is constructed entirely from stainless steel to prevent rust and corrosion.

Can this be left in place permanently?
Yes, it can be left in place to function as a permanent continuity bridge between terminals.

Is the shunt suitable for outdoor use?
Yes, the stainless steel construction makes it resistant to corrosion when installed on outdoor terminal posts.

How does the installation process work?
The unique hole and slot design allows for easy installation and removal without specialized tools.

What is the purpose of the hole and slot design?
It enables the shunt to be quickly connected or disconnected for testing purposes.
