Overview

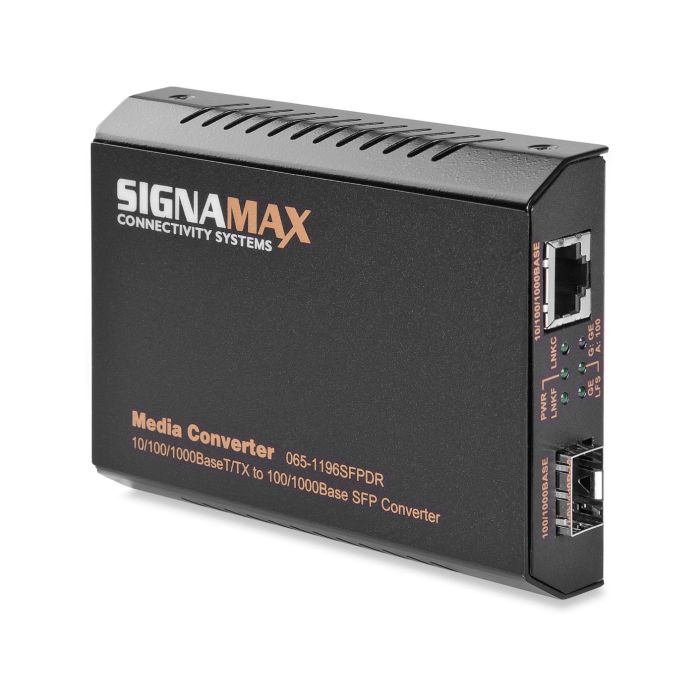

The Signamax 10/100/1000 to 100/1000 SFP Media Converter provides a flexible, intelligent solution for bridging legacy 10BaseT and 100BaseTX copper networks with high-speed 1000Base Gigabit Ethernet fiber or 100Base fiber optic backbones. By utilizing SFP technology, this device ensures long-distance connectivity while maintaining full compatibility with modern fiber standards.
Equipped with a high-performance integrated switch, the converter supports jumbo frames up to 9K bytes, ensuring efficient data throughput for bandwidth-intensive applications. Designed for industrial longevity and stable operation, it features an MTBF of over 212 years, making it suitable for critical network infrastructure in data centers and enterprise environments.
Key Features
-
Dual-Rate SFP Support
Features flexible 1000Base or 100Base SFP capability to adapt to varying network speed requirements. -
Low Latency Architecture
Provides extremely low latency to effectively support large, multi-hop network topologies. -
High Reliability
Engineered for mission-critical environments with a mean time between failures exceeding 212 years. -
Jumbo Frame Support
Supports up to 9K bytes of jumbo frames, optimizing throughput for Gigabit transmission. -
Flow Control Standards
Includes IEEE 802.3x flow control for full-duplex operation and back-pressure support for half-duplex configurations. -
DIP Switch Configuration
Allows easy field settings for link fault signaling, fiber auto/force modes, and SFP speed selection. -
Flexible Mounting Options
Supports multiple installation methods including wall mounting, DIN-rail mounting, or integration into a media converter rack-mount chassis. -
Link Fault Signaling
Propagates link drops between ports to ensure managed switches can respond via Spanning Tree Protocol.
Applications
- Bridging copper-to-fiber network segments
- Extending network reach in enterprise environments
- Data center fiber-optic uplinks
- Industrial automation network connectivity
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651196SFPDR |
| Copper Interface | 10/100/1000Base-T/TX |
| Fiber Interface | 100/1000Base SFP |
| Flow Control | IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex) |
| MTBF | Over 212 years |
| Jumbo Frame Support | 9K Bytes |
| Mounting Options | Wall, DIN-Rail, Rack Chassis |
Frequently Asked Questions
Does this device support both 100Mbps and 1000Mbps fiber?
Yes, it features dual-rate SFP capability supporting both 100Base and 1000Base SFP modules.
How are the device settings adjusted?
The unit uses physical DIP switches to configure features such as link fault signaling, auto/force modes, and SFP speed.
What mounting methods are available?
The device is versatile and can be wall-mounted, DIN-rail mounted, or placed in a dedicated media converter rack chassis.
Does it support jumbo frames?
Yes, it supports jumbo frames up to 9K bytes to handle high-bandwidth data requirements.
How does the Link Fault Signaling feature work?
It propagates a link drop from one port to the other, allowing connected managed switches to trigger recovery mechanisms like Spanning Tree Protocol.
