Overview

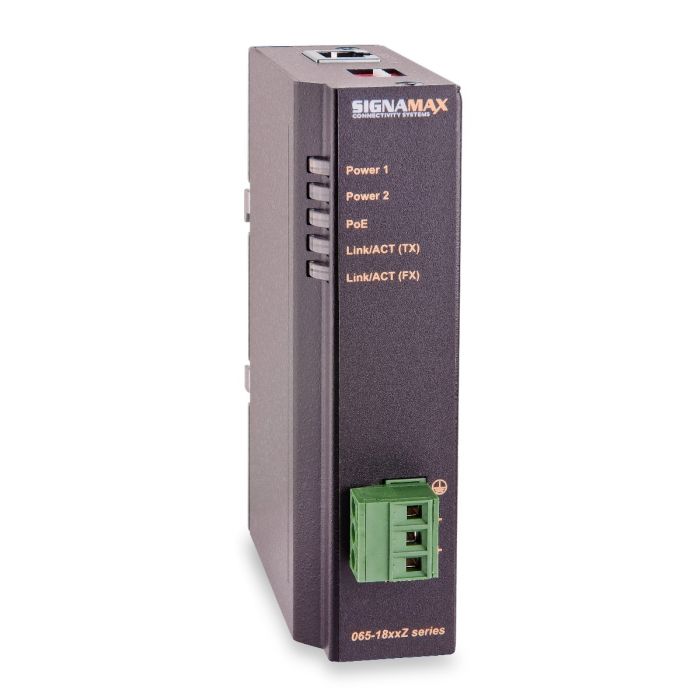

The Signamax 10/100 to 100FX Industrial Media Converter is a ruggedized networking solution engineered for deployment in harsh environments where equipment must withstand severe temperature fluctuations. It serves as a reliable bridge between copper-based 10/100Base-T/TX Ethernet networks and fiber-optic 100Base-FX infrastructures over multimode fiber.
Designed for industrial, security, and public safety applications, this device supports PoE+ (Power over Ethernet) functionality, allowing it to supply up to 30 watts of power to connected PoE or PoE+ powered devices. Its robust construction ensures consistent performance in environments ranging from -10°C to 60°C (14°F to 140°F), and its compact, plug-and-play design simplifies installation on shop floors, transportation systems, or outdoor cabinets.
Key Features
-
PoE+ Capability
Supports IEEE 802.3at standards to provide up to 30 watts of power to connected devices, reducing the need for local power sources at the edge. -
Rugged Industrial Design
Built to operate reliably in temperatures from -10°C to 60°C, ensuring stability in demanding thermal environments. -
DIP Switch Configuration
Allows for easy field settings including link fault signaling, link down alarms, and speed/duplex mode selection. -
Versatile Mounting
Includes support for standard DIN-rail or panel mount installations for flexible integration into existing control cabinets. -
High-Power DC Input
Features 48V DC terminal block power inputs compatible with typical industrial DC power supplies. -
Plug-and-Play Setup
Compact design allows for quick deployment without the need for complex software configuration.
Applications
- Industrial automation and shop floor connectivity
- Security and surveillance systems
- Public safety networks
- Transportation and infrastructure management
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Model | 10/100Base-T/TX to 100Base-FX |
| Part Number | 0651810Z |
| Fiber Connector | SC |
| Fiber Type | Multimode |
| Maximum Span | 3 km |
| PoE Support | PoE+ (30W) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
| Power Input | 48V DC Terminal Block |
| Mounting | DIN-rail or Panel Mount |
Frequently Asked Questions
What is the maximum distance supported?
This multimode unit supports a distance of up to 3km.
Does this unit support PoE+?
Yes, it is equipped to function as Power Source Equipment (PSE) providing up to 30 watts (PoE+).
What kind of power input does it require?
The device uses 48V DC terminal block power inputs.
Is the unit suitable for outdoor environments?
It is designed for harsh environments and temperature extremes within its operating range, making it ideal for various industrial and security settings.
What mounting options are available?
The converter supports both DIN-rail and panel mount installations.
