Overview

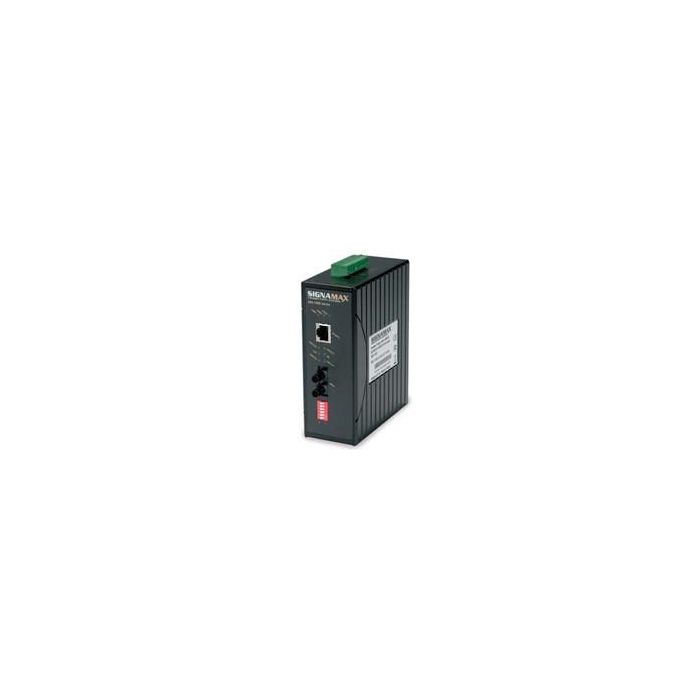

The Signamax 10/100 to 100FX PoE+ Industrial Media Converter is designed to bridge the gap between copper-based Ethernet networks and fiber optic infrastructure. This device is engineered for mission-critical connectivity in demanding industrial environments where reliability and performance are essential.
Equipped with PoE+ (30 watt) Power Source Equipment (PSE) capabilities, this unit simplifies installations by providing power directly to connected devices via the twisted pair connection. Its ruggedized design ensures consistent operation in environments subject to severe temperature fluctuations, such as manufacturing shop floors, transportation hubs, and outdoor security systems.
Key Features
-
PoE+ PSE Capability
Supports up to 30W of power output for connected PoE or PoE+ powered devices, eliminating the need for local power supplies at the edge. -
Industrial Temperature Range
Engineered to maintain operational integrity in temperatures ranging from 14°F to 140°F (-10°C to 60°C). -
DIP Switch Configuration
Allows for easy field adjustments of link fault signaling, link down alarms, and speed/duplex modes. -
DC Power Inputs
Features a 48V DC terminal block power input suitable for standard industrial power distribution systems. -
Flexible Mounting Options
Designed for versatile deployment with support for both DIN-rail and panel mount installations. -
Compact Form Factor
Space-saving design allows for high-density installation within cramped control cabinets.
Applications
- Outdoor security and surveillance systems
- Industrial factory automation
- Public safety infrastructure
- Transportation and traffic management systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651820Z |
| Operating Distance | 20 km |
| PoE Support | PoE+ (up to 30 Watts) |
| Operating Temperature | 14°F to 140°F (-10°C to 60°C) |
| Connector Type | SC |
| Mounting Options | DIN-rail or panel mount |
| Power Input | 48 V DC Terminal Block |
Frequently Asked Questions
Does this unit require external power?
Yes, it requires 48V DC input via the integrated terminal block.
Is this device compatible with standard PoE cameras?
Yes, it supports PoE+ (30W), which is compatible with most standard PoE and PoE+ devices.
Can it be mounted on a DIN-rail?
Yes, the unit supports both DIN-rail and panel mounting.
What is the maximum fiber distance?
The unit supports up to 20km over singlemode fiber.
What is the operating temperature range?
The device is rated for operation between 14°F and 140°F (-10°C to 60°C).
