Overview

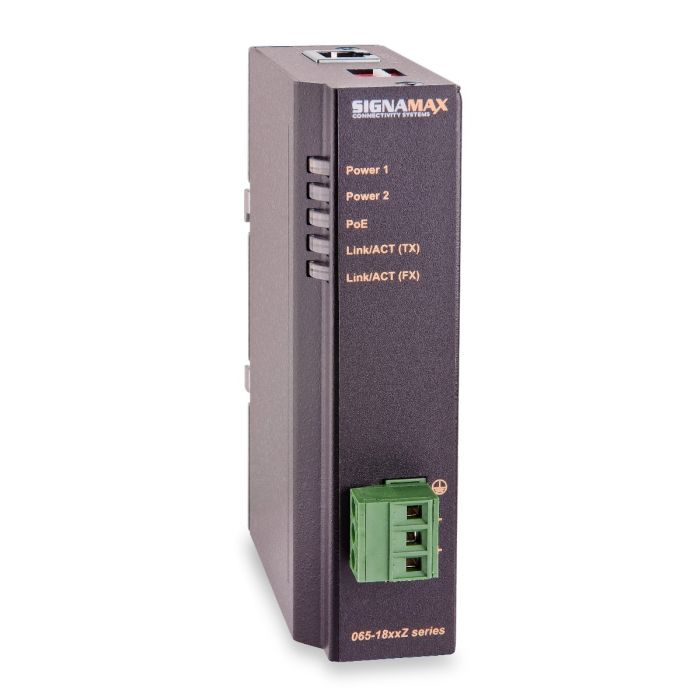

The Signamax 10/100 to 100FX PoE+ Industrial Media Converter is designed to provide reliable network conversion in harsh environments where equipment must withstand extreme temperature fluctuations. This unit serves as both a data bridge between twisted pair and fiber optic cabling and as a Power Source Equipment (PSE) device, capable of delivering up to 30 watts of power to connected PoE or PoE+ powered devices.
Constructed for durability, this converter is an ideal solution for outdoor installations, transportation systems, and industrial shop floors. It features a compact, plug-and-play design that simplifies deployment in mission-critical applications such as public safety and security networks.
Key Features
-
PoE+ Power Delivery
Provides up to 30 watts of power to PoE or PoE+ enabled devices via the twisted pair connection. -
Industrial Temperature Range
Engineered to maintain consistent performance in extreme environments ranging from -10°C to 60°C (14°F to 140°F). -
Rugged Design
Built for industrial deployment in demanding indoor and outdoor locations. -
DIP Switch Configuration
Allows for easy adjustment of link fault signaling, link down alarms, and speed/duplex modes. -
Versatile Power Inputs
Features 48V DC terminal block power inputs for industrial power integration. -
Flexible Installation
Supports both DIN-rail and panel mount configurations to suit specific enclosure needs.
Applications
- Security and Surveillance Networks
- Public Safety Systems
- Transportation Infrastructure
- Industrial Shop Floors
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651800Z |
| Fiber Connector | ST |
| Fiber Type | Multimode |
| Operating Distance | 2km |
| PoE Support | PoE+ (30 Watt) |
| Operating Temperature | -10°C to 60°C (14°F to 140°F) |
Frequently Asked Questions
Does this converter support PoE+?
Yes, it is equipped as Power Source Equipment (PSE) and provides up to 30 watts to connected devices.
What type of fiber connectors does this model use?
This model utilizes ST-style fiber connectors.
Can this device be mounted on a DIN-rail?
Yes, it supports both DIN-rail and panel mount installations.
What is the operating temperature range?
The device is rated to operate between -10°C and 60°C (14°F to 140°F).
Is this a plug-and-play device?
Yes, the design is plug-and-play for simple installation, while still offering advanced configuration via DIP switches.
