Overview

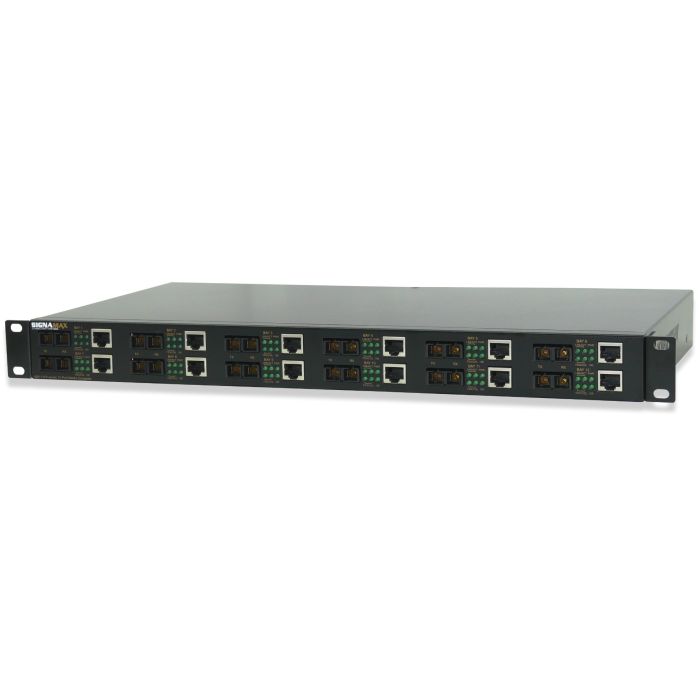

The Signamax 12-Channel Rack Mount Media Converter is a high-density solution designed for enterprise-level networks and carrier environments. This system aggregates 12 independent media converter channels into a compact, 1U rack-mount enclosure, providing an efficient way to manage large-scale media conversion requirements.
Equipped with dual redundant, load-sharing power supplies, the unit is engineered to ensure continuous system uptime and reliability. Each of the 12 channels supports seamless conversion between 10/100Base-T/TX and 100Base-FX interfaces, utilizing store-and-forward switching architecture to maintain data integrity across the network.
Key Features
-
High Port Density
Features 12 independent media converter channels in a single 1U rack space to optimize equipment footprint. -
Redundant Power Supplies
Includes dual load-sharing power supplies to provide automatic backup and ensure continuous operation. -
Media Conversion
Supports conversion between 10/100Base-T/TX and 100Base-FX for versatile fiber-to-copper integration. -
Store-and-Forward Architecture
Utilizes advanced switching technology to verify data packets before forwarding, reducing transmission errors. -
Link Fault Signaling
Equipped with link fault signaling on all switching converters to quickly identify and alert on connection issues. -
Fan-Cooled Chassis
Integrated cooling system promotes airflow to maintain stable operating temperatures for internal components.
Applications
- Enterprise network backbones
- Carrier-class fiber-to-copper service delivery
- High-density data center cable management
- Multi-channel network expansion
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0651200SC20 |
| Channel Density | 12 Channels |
| Rack Height | 1U |
| Copper Interface | 10/100Base-T/TX |
| Fiber Interface | 100Base-FX |
| Connector Type | SC |
| Power Supply | Dual Redundant, Load-Sharing |
| Architecture | Store-and-Forward |
| Cooling | Fan-Cooled |
Frequently Asked Questions
Does this unit support Gigabit conversion?
The standard chassis supports 10/100Base-T/TX to 100Base-FX; however, the platform can be optionally equipped with 12 channels of Gigabit capability.
What is the power redundancy configuration?
The system utilizes dual load-sharing power supplies to provide redundancy, ensuring that if one supply fails, the other maintains system operation.
How many rack units does this consume?
This device is designed for a standard 19-inch rack and occupies 1U of rack space.
What kind of signaling does it support for connection issues?
The converter features link fault signaling across all integrated switching modules.
Is the cooling internal?
Yes, the chassis is fan-cooled to ensure adequate thermal management for high-density operation.
