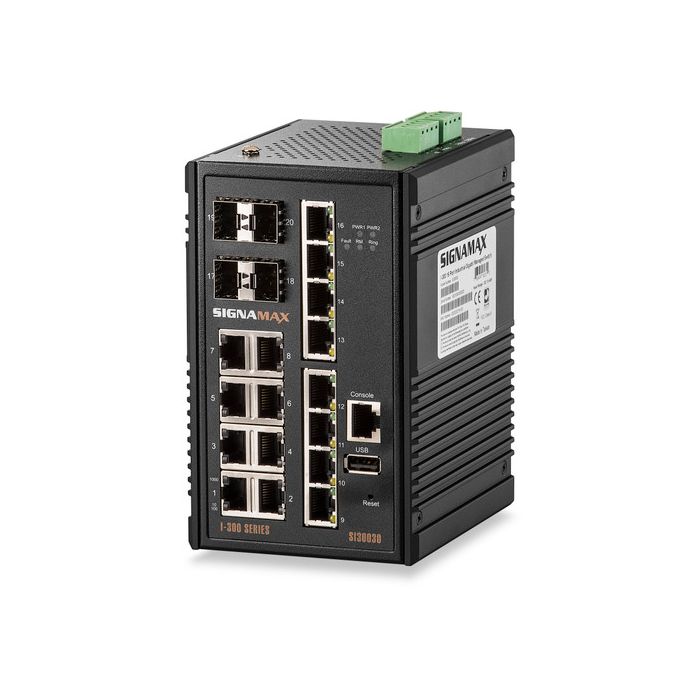

Signamax 16-Port Industrial Managed Media Switch 10/100/1000 Base T/TX (RJ45) with 4-1000/GbE SFP Ports

Overview

The Signamax I-300 Series Managed Industrial Switch is a high-performance network solution engineered for extreme environments. It provides reliable connectivity for industrial automation, outdoor surveillance, and infrastructure applications where standard networking hardware may fail. The unit is built to withstand significant shock and vibration while operating across a wide temperature range.

This managed Layer 2 switch features a non-blocking architecture with 40Gbps of switching bandwidth, ensuring high-speed data transmission across its 16 RJ45 ports and 4 dedicated Gigabit SFP ports. Its robust design includes redundant power inputs, surge protection, and support for rapid-recovery ring protocols to ensure high availability and minimal downtime in mission-critical deployments.

Key Features

• Ruggedized Housing
  Features an IP30-rated enclosure designed to protect internal components from solid objects and debris in industrial settings.
• Wide Temperature Tolerance
  Engineered for reliable operation in extreme climates ranging from -40 to 75 °C (-40 to 167 °F).
• Surge Protection
  Includes 4kV LAN surge protection, preventing damage to the network equipment during electrical spikes in outdoor environments.
• Redundant Power Support
  Equipped with dual terminal block DC inputs to provide power failover protection with integrated reverse polarity and overload monitoring.
• High-Speed Connectivity
  Provides 16 Gigabit Ethernet RJ45 ports and 4 dedicated Gigabit SFP ports for high-density fiber or copper uplinks.
• Advanced Fault Recovery
  Supports ERPSv2, enabling recovery times of 20ms to maintain continuous network uptime in ring topologies.
• Configuration Management
  Features a USB interface dedicated to easy configuration backups, firmware upgrades, and rapid image restoration.
• Hardware Reliability
  Includes a 5-year hardware warranty, ensuring long-term operational support for industrial networks.

Applications

• Industrial automation and control systems
• Outdoor physical security and video surveillance
• Transportation and infrastructure networking
• Harsh-environment enterprise network edge

Technical Specifications

Frequently Asked Questions

Does this switch support redundancy?
Yes, the switch features redundant terminal block DC inputs and supports industry-standard ring protocols for fault-tolerant operation.

What kind of protection does the enclosure offer?
The switch is housed in an IP30-rated enclosure, protecting the internal electronics from solid objects.

Can I update the configuration via USB?
Yes, the switch includes a USB port specifically for configuration backup, restoration, and firmware upgrades.

Is this switch suitable for outdoor use?
It is designed for industrial and outdoor applications, featuring a wide operating temperature range and 4kV surge protection.

What is the network recovery time?
When configured in a ring topology using ERPSv2, the switch achieves a disconnection recovery time of 20ms.
