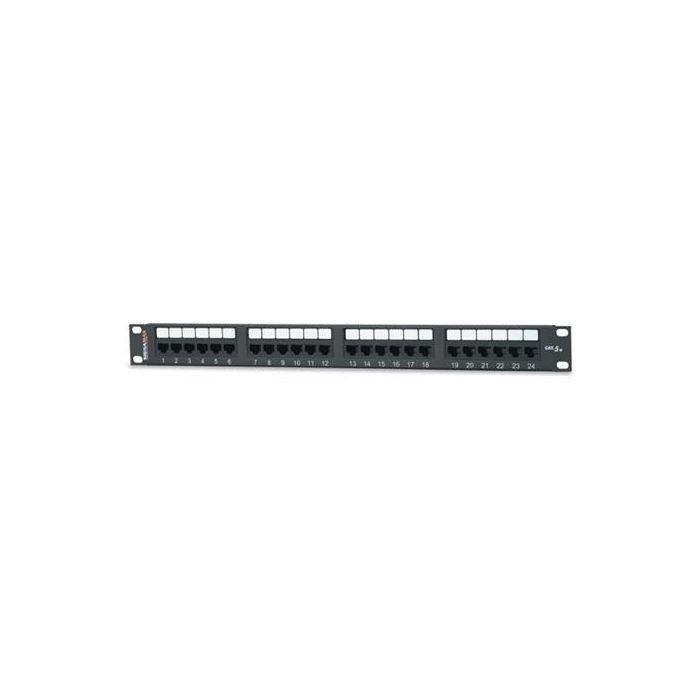

Signamax 24-Port Cat5e 1U High Density Patch Panel

Overview

The Signamax 24-Port Cat5e 1U High Density Patch Panel is designed for efficient connectivity management in telecommunications rooms. This feed-thru panel is engineered to interface between distribution cabling and equipment, facilitating seamless cross-connections using patch cables while maintaining stringent Category 5e performance standards.

Built for durability in high-density environments, this panel utilizes modular coupling ports and includes a tool-less, snap-in rear cable management bar. The design ensures improved cable routing, organized strain relief, and enhanced plug-to-jack connection integrity, making it suitable for both horizontal consolidation points and equipment cross-connections.

Key Features

• High-Density Feed-Thru Design
  Features 24 modular coupling ports in a compact 1U rack-mount footprint to maximize space efficiency in server racks.
• Universal Compatibility
  Accommodates both unscreened and screened twisted-pair keystone inline couplers for versatile installation.
• Straight-Thru Wiring
  Supports T568A and T568B wiring schemes for simplified integration into existing network infrastructures.
• Enhanced Connection Integrity
  Optimized coupler contact design ensures robust signal performance and reliable plug-to-jack connectivity.
• Durable Construction
  Engineered for maximum strength and long-term durability in active network environments.
• Tool-Less Cable Management
  Includes a snap-in rear cable management bar that mounts without screws for improved strain relief and routing.
• Extended Durability
  Couplers are rated for a minimum of 750 plug insertion cycles.

Applications

• Telecommunications rooms
• Cross-connections
• Horizontal consolidation points
• Data center infrastructure

Technical Specifications

Frequently Asked Questions

Is the cable management bar included?
Yes, the panel includes a snap-in rear cable management bar that mounts without the need for screws.

Does this panel support both T568A and T568B wiring?
Yes, the integrated couplers are compatible with both T568A and T568B cabling schemes.

Can this be used with shielded cables?
Yes, this high-density panel accommodates both unscreened and screened twisted-pair keystone inline couplers.

What is the rack unit requirement?
This panel is designed for a 1U rack space.

What is the minimum durability rating for the couplers?
The couplers are rated for a minimum of 750 plug insertion cycles.
