Overview

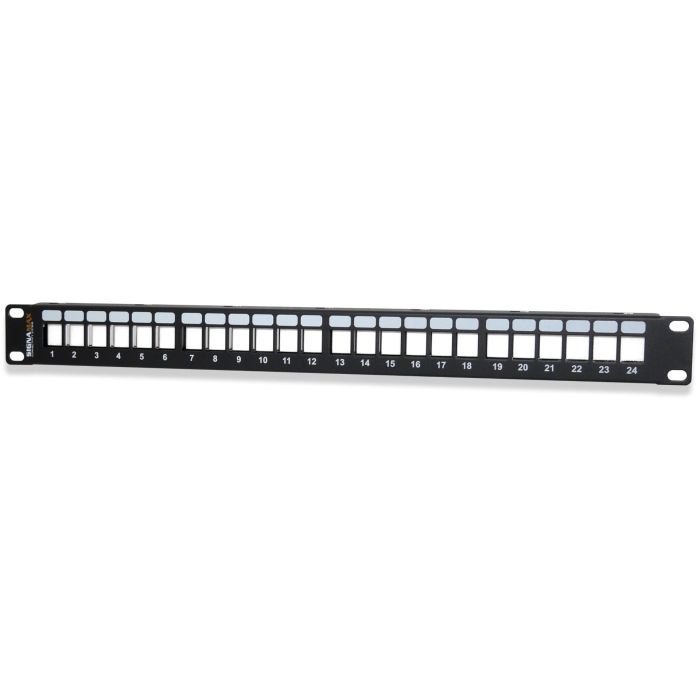

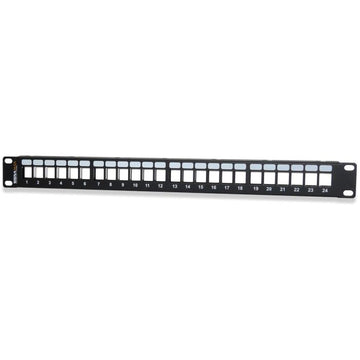

The Signamax 24-Port Cat5e Field-Configurable Patch Panel is designed for high-density network connectivity in data center and telecommunications environments. This 1U (1.75" H) rack-mount panel serves as a centralized management point for terminating copper network infrastructure, allowing for flexible configuration to suit specific networking requirements.
Engineered to meet Category 5e performance standards, this patch panel provides robust connectivity for Ethernet applications. Its field-configurable design allows technicians to install, remove, or replace individual jacks, simplifying moves, adds, and changes while maintaining a clean, organized cable management solution.
Key Features
-
High-Density Design
Features 24 ports in a standard 1U rack space to maximize valuable rack real estate. -
Field-Configurable
Modular design allows for individual jack replacement without replacing the entire panel. -
Category 5e Compliance
Supports high-speed data transmission required for modern office and industrial networks. -
Standard Rack Compatibility
Designed for installation in standard 19-inch racks and cabinets. -
Simplified Cable Management
Allows for organized cable routing, reducing congestion and improving airflow. -
Durable Construction
Built to withstand the rigors of frequent maintenance and long-term use in active environments.
Applications
- Enterprise LAN networks
- Data center infrastructure
- Telecommunications distribution rooms
- VoIP and IP camera systems
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 24UHDMMPC5E |
| Port Count | 24 |
| Category | Cat5e |
| Height | 1.75" (1U) |
Frequently Asked Questions
Is this patch panel loaded with jacks?
The product is field-configurable, meaning it is designed to be populated with individual jacks to meet specific project needs.
Does this fit a standard 19-inch rack?
Yes, it is designed for installation in standard 19-inch equipment racks and cabinets.
What is the height of the panel?
The panel occupies 1U of rack space, which is 1.75 inches.
Is this compatible with Cat6 cabling?
This panel is specified for Cat5e; please ensure your jacks and cabling match the intended performance category.
How many ports are available?
This model supports up to 24 ports.
