Overview

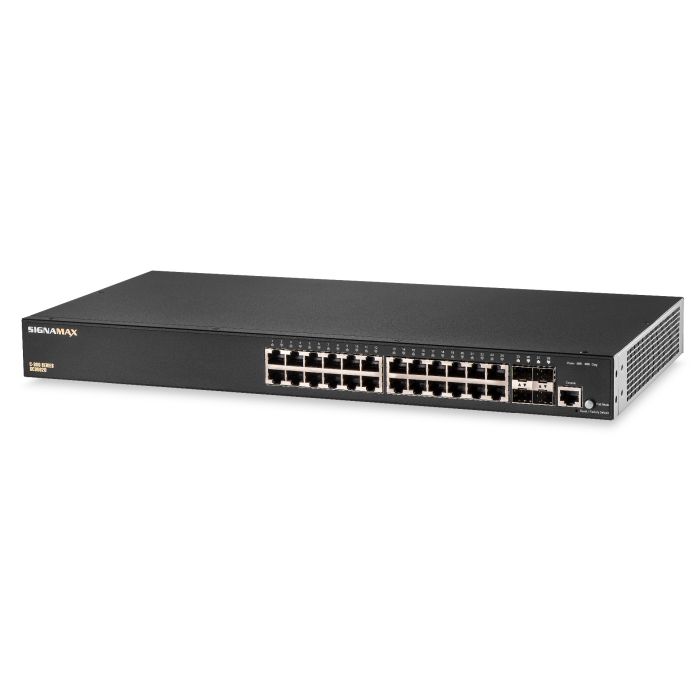

The Signamax C-300 series of fully managed switches is engineered for robust Layer 2 performance, providing enhanced access security, access control lists (ACLs), and traffic prioritization. Designed for branch and campus network environments, this switch supports IPv6 and integrates seamlessly into enterprise-grade network architectures.
Equipped with 24 ports of 10/100/1000 Base-T/TX RJ45 connectivity and 4 dedicated 1000 Base-SFP uplink ports, this unit ensures high-bandwidth connectivity for diverse network topologies. It features PoE+ support on all copper ports with a standard 370W power budget, which can be expanded to 740W, providing ample power for connected endpoints like IP cameras, VoIP phones, and wireless access points.
Key Features
-
Managed Layer 2 Capability
Delivers full Layer 2 management including traffic prioritization and access control for reliable network administration. -
PoE+ Support
Provides Power over Ethernet plus on all ports, eliminating the need for local power supplies at endpoint locations. -
High Power Budget
Includes a 370W integrated power budget with the flexibility to scale up to 740W for demanding devices. -
Dedicated Uplink Ports
Features 4 Gigabit SFP ports to enable high-speed fiber backbone connections. -
Static IP Routing and RIP
Supports advanced routing protocols to improve network traffic management and flexibility. -
Quality of Service (QoS)
Includes 8 dedicated QoS queues to ensure high-priority data traffic is handled efficiently. -
Rack-Mountable Design
Ships with integrated mounting brackets for quick and standard installation in 19-inch server racks.
Applications
- Campus area networks
- Branch office local area networks
- IP Surveillance systems
- VoIP telephony deployments
- Wireless network infrastructure
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | SC30020 |
| Copper Ports | 24 x 10/100/1000 Base-T/TX (RJ45) |
| Uplink Ports | 4 x 1000 Base-SFP |
| PoE Budget | 370 Watts (expandable to 740 Watts) |
| Management Type | Fully Managed |
| QoS | 8 Dedicated Queues |
Frequently Asked Questions
Does this switch support Power over Ethernet?
Yes, it supports PoE+ on all 24 RJ45 ports.
Can the PoE power budget be increased?
The unit comes with a 370W power budget that can be expanded up to 740W.
Are rack mounting brackets included?
Yes, integrated mounting brackets for standard rack installation are included.
What kind of uplink ports does it have?
It features 4 dedicated 1000 Base-SFP uplink ports for fiber connectivity.
What management features are available?
The switch offers Layer 2 management, including VLAN support, ACLs, and traffic prioritization.
