Overview

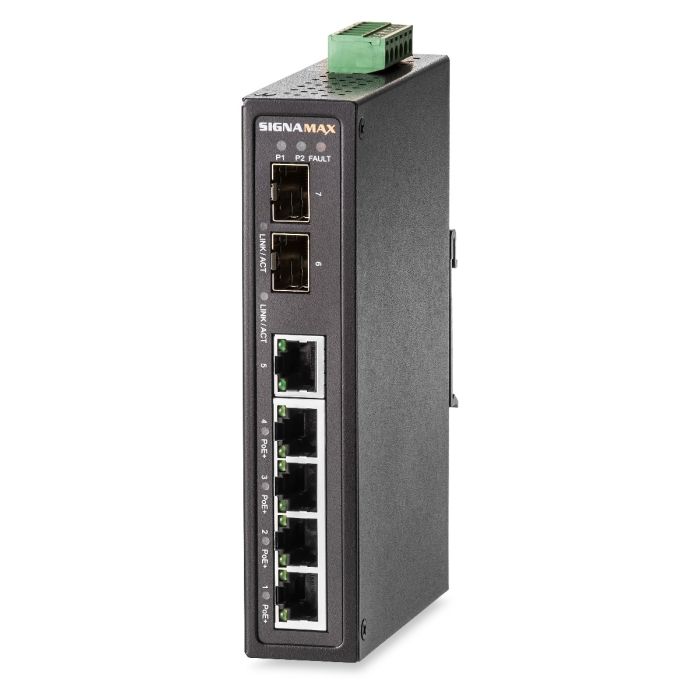

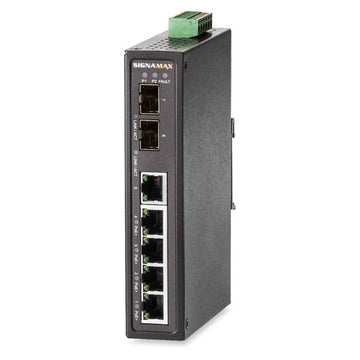

The Signamax 10/100/1000 Unmanaged Industrial PoE+ Switch is engineered for high-performance network connectivity in demanding, rugged environments. This device provides a robust solution for extending network reach with the flexibility of both copper and fiber connectivity, featuring four PoE+ ports for powering edge devices like IP security cameras and two SFP ports for long-distance fiber uplinks.
Constructed with an IP30-rated metal housing, this switch is designed to withstand extreme temperatures, ensuring consistent operation in industrial settings. Its integration of PoE+ technology simplifies deployment by delivering power and data over a single cable, specifically supporting power-intensive applications such as Pan/Tilt/Zoom (PTZ) IP cameras.
Key Features
-
PoE+ Support
Provides up to 30W of power per port for versatile deployment of powered equipment like security cameras. -
Rugged Design
Features an IP30 metal case and an extended operating temperature range of -40°F to 167°F (-40°C to 75°C). -
SFP Fiber Uplinks
Includes two 100/1000Base SFP ports, allowing for flexible, long-distance network expansion. -
High Capacity
Supports a MAC address table of 8K for efficient handling of multi-device network traffic. -
Jumbo Frame Support
Handles frames up to 9.6K bytes, improving throughput for large data transfers. -
Electrical Protection
Incorporates 2,000V DC power line EFT protection and 6,000V DC Ethernet ESD protection for hardware longevity. -
Redundant Power Input
Features a terminal block for redundant 48-55V DC power inputs to ensure network uptime. -
DIN-Rail Ready
Includes integrated mounting hardware for quick installation in industrial control cabinets.
Applications
- IP security and surveillance systems (PTZ cameras)
- Industrial automation and control networks
- Intelligent transportation systems
- Long-distance fiber optic backhaul
Technical Specifications
| Specification | Value |
|---|---|
| Model | 065-7407GPOEP |
| Total Ports | 5-Port RJ45 + 2 SFP Ports |
| PoE+ Ports | 4 Ports |
| Speed | 10/100/1000 Mbps |
| MAC Table | 8K |
| Jumbo Frames | 9.6K bytes |
| Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
| Housing | IP30 Metal |
| Mounting | DIN-Rail |
| Power Input | 48-55V DC (Redundant Terminal Block) |
Frequently Asked Questions
Does this switch support PoE+?
Yes, it supports PoE+ (30W) on four ports.
What is the operating temperature range?
It is rated for operation between -40°C and 75°C (-40°F to 167°F).
Is this switch managed or unmanaged?
This is an unmanaged industrial switch.
Can I use fiber optics with this switch?
Yes, it features two 100/1000Base SFP ports for fiber uplinks.
What is the housing rating?
The device features an IP30-rated metal case for durability in industrial environments.
