Overview

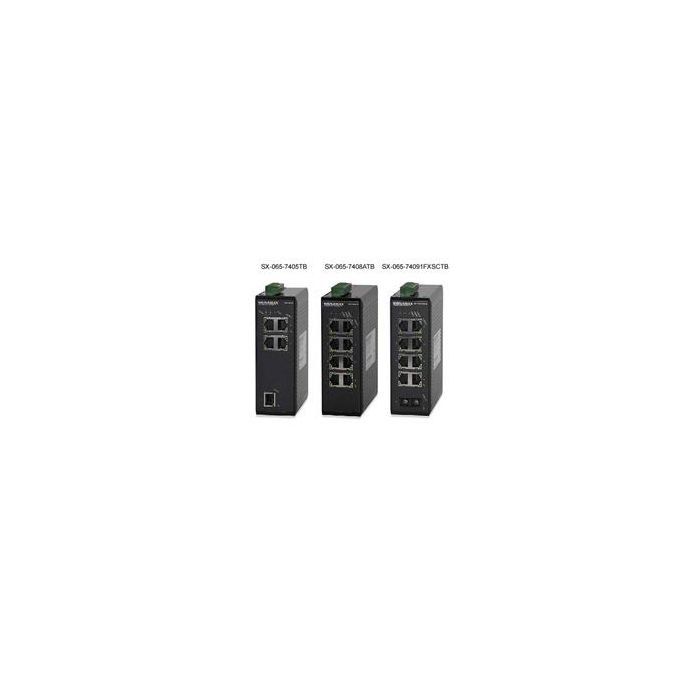

The Signamax 5-Port 10/100/1000BaseT/TX Unmanaged Industrial Switch is a ruggedized networking solution designed for demanding environments. Engineered to withstand temperature extremes ranging from -40°F to 167°F (-40°C to 75°C), this switch ensures reliable data transmission in harsh conditions such as outdoor installations, transportation roadside systems, and industrial shop floors.
This unmanaged switch provides robust connectivity with plug-and-play simplicity. It features auto-negotiation and Auto-MDIX capabilities, allowing for seamless integration into existing network infrastructures. Its industrial-grade construction is specifically built to maintain network integrity where standard commercial equipment may fail.
Key Features
-
Temperature Hardened Design
Capable of operating in extreme conditions from -40°C to 75°C for deployment in non-climate-controlled environments. -
Traffic Control Standards
Meets NEMA TS1 and TS2 environmental requirements for traffic control equipment applications. -
Hazardous Location Certified
UL 1604 Class 1, Division 2 classified, making it suitable for use in volatile industrial settings. -
Electromagnetic Compatibility
Complies with IEC61000-6-2 EMC immunity standards for reliable operation in high-interference areas. -
Gigabit Performance
Supports 10/100/1000 Mbps wire-speed performance to handle bandwidth-intensive industrial applications. -
Automatic Configuration
Features auto-negotiation and Auto-MDIX to automatically detect and adjust to connected device settings. -
DIN-Rail Mounting
Designed for efficient installation on standard industrial DIN-rail systems.
Applications
- Outdoor environmental networking
- Transportation roadside systems
- Industrial shop floor automation
- Hazardous location facilities
Technical Specifications
| Specification | Value |
|---|---|
| Manufacturer | Signamax |
| Part Number | 0657405GTB |
| Port Count | 5 |
| Data Rate | 10/100/1000BaseT/TX |
| MAC Address Table | 2048 Addresses |
| Buffer Memory | 768K bits |
| Operating Temperature | -40°F to 167°F (-40°C to 75°C) |
| Standards | NEMA TS1, NEMA TS2, IEC61000-6-2, UL 1604 Class 1, Division 2 |
Frequently Asked Questions
Is this switch managed or unmanaged?
This is an unmanaged industrial switch, designed for simple plug-and-play installation without the need for configuration.
Can this be mounted on a DIN-rail?
Yes, it is specifically designed for DIN-rail mounting in industrial enclosures.
Is it suitable for outdoor use?
Yes, it is designed for outdoor environments and harsh conditions, provided it is housed appropriately to protect against direct weather exposure.
Does it support gigabit speeds?
Yes, the switch supports 10/100/1000 Mbps wire-speed performance.
Is this safe for hazardous locations?
Yes, it is UL 1604 Class 1, Division 2 classified for use in hazardous environments.
